FA79減速機詳細信息

prevnext

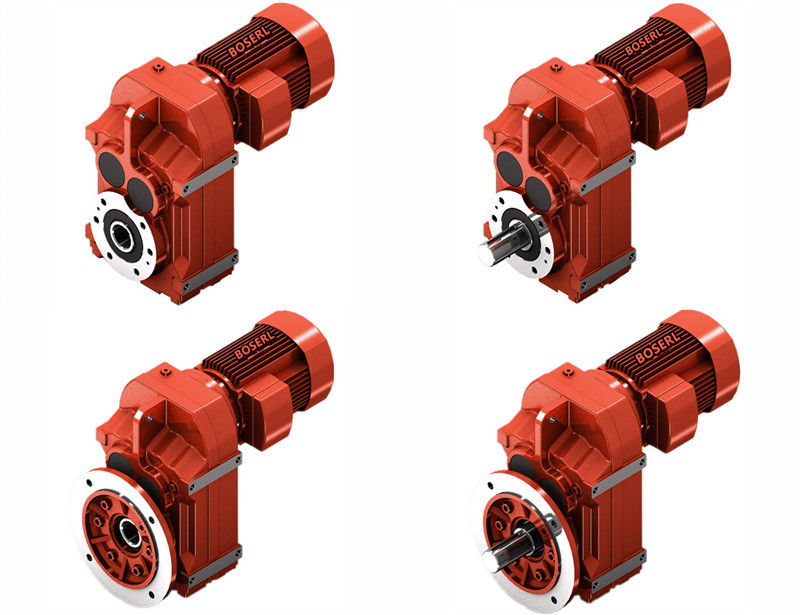

FA79減速機

訂購熱線:13360667204
  1. 詳細信息

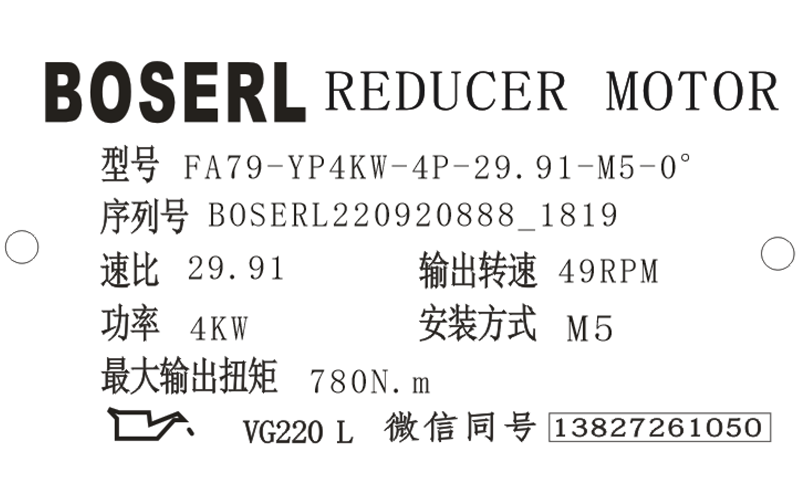

FA79減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F79減速機選型樣本。

FA79-YP4KW-4P-29.91-M5-0°

FA:系列代號

79:減速機規格代號

YP:電機

4KW:電機功率

4P:電機級數

29.91:減速機傳動比

M5:減速機安裝位置

0°:接線盒位置


FA79減速機扭力臂安裝:

請按以下步驟安裝橡膠緩沖塊:1.根據下表采用螺栓[1]和墊片[2];2.用兩個螺母[3]緊固螺栓;3.擰緊螺栓,直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA79減速機的扭力臂安裝示意圖:齒輪減速電機


減速機型號

直 徑

a[mm]

橡膠緩沖塊

內徑b[mm]

長   度

(未張緊)d[mm]

墊片寬度

c[mm]

△L(張緊)

[mm]

FA39減速機

40

12.5

20

5

1

FA49減速機

40

12.5

20

5

1.5

FA59減速機

40

12.5

20

5

1.5

FA69減速機

40

12.5

20

5

1.5

FA79減速機

60

21

30

10

1.5

FA89減速機

60

21

30

10

1.5

FA99減速機

80

25

40

12

2

FA109減速機

80

25

40

12

2

FA129減速機

100

32

60

15

2

FA159減速機

120

32

60

15

2

FA79減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA79減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機


FA79減速機型號:

AFA77-Y0.18KW,AFA77-Y0.25KW,AFA77-Y0.37KW,AFA77-Y0.55KW,AFA77-Y0.75KW,AFA77-Y1.1KW,AFA77-Y1.5KW,AFA77-Y100M4,AFA77-Y112M4,AFA77-Y11KW,AFA77-Y132M4,AFA77-Y160M4,AFA77-Y2.2KW,AFA77-Y3KW,AFA77-Y4KW,AFA77-Y5.5KW,AFA77-Y63M4,AFA77-Y7.5KW,AFA77-Y71M4,AFA77-Y80M4,AFA77-Y90M4,AFA77-YB100M4,AFA77-YB112M4,AFA77-YB132M4,AFA77-YB160M4,AFA77-YB63M4,AFA77-YB71M4,AFA77-YB80M4,AFA77-YB90M4,AFA77-YDP100M4,AFA77-YDP112M4,AFA77-YDP132M4,AFA77-YDP160M4,AFA77-YDP63M4,AFA77-YDP71M4,AFA77-YDP80M4,AFA77-YDP90M4,AFA77-YE100M4,AFA77-YE112M4,AFA77-YE132M4,AFA77-YE160M4,AFA77-YE63M4,AFA77-YE71M4,AFA77-YE80M4,AFA77-YE90M4,AFA77-YEJ100M4,AFA77-YEJ112M4,AFA77-YEJ132M4,AFA77-YEJ160M4,AFA77-YEJ63M4,AFA77-YEJ71M4,AFA77-YEJ80M4,AFA77-YEJ90M4,AFA77-YEJB100M4,AFA77-YEJB112M4,AFA77-YEJB132M4,AFA77-YEJB160M4,AFA77-YEJB63M4,AFA77-YEJB71M4,AFA77-YEJB80M4,AFA77-YEJB90M4,AFA77-YP100M4,AFA77-YP112M4,AFA77-YP132M4,AFA77-YP160M4,AFA77-YP63M4,AFA77-YP71M4,AFA77-YP80M4,AFA77-YP90M4,AFA77-YPB100M4,AFA77-YPB112M4,AFA77-YPB132M4,AFA77-YPB160M4,AFA77-YPB63M4,AFA77-YPB71M4,AFA77-YPB80M4,AFA77-YPB90M4,AFA77-YPE100M4,AFA77-YPE112M4,AFA77-YPE132M4,AFA77-YPE160M4,AFA77-YPE63M4,AFA77-YPE71M4,AFA77-YPE80M4,AFA77-YPE90M4,AFA77-YS100M4,AFA77-YS112M4,AFA77-YS132M4,AFA77-YS160M4,AFA77-YS63M4,AFA77-YS71M4,AFA77-YS80M4,AFA77-YS90M4,AFA77-YVB100M4,AFA77-YVB112M4,AFA77-YVB132M4,AFA77-YVB160M4,AFA77-YVB63M4,AFA77-YVB71M4,AFA77-YVB80M4,AFA77-YVB90M4,AFA77-YVP100M4,AFA77-YVP112M4,AFA77-YVP132M4,AFA77-YVP160M4,AFA77-YVP63M4,AFA77-YVP71M4,AFA77-YVP80M4,AFA77-YVP90M4,AFA77-YVPEJ100M4,AFA77-YVPEJ112M4,AFA77-YVPEJ132M4,AFA77-YVPEJ160M4,AFA77-YVPEJ63M4,AFA77-YVPEJ71M4,AFA77-YVPEJ80M4,AFA77-YVPEJ90M4,NFA77-Y0.18KW,NFA77-Y0.25KW,NFA77-Y0.37KW,NFA77-Y0.55KW,NFA77-Y0.75KW,NFA77-Y1.1KW,NFA77-Y1.5KW,NFA77-Y100M4,NFA77-Y112M4,NFA77-Y11KW,NFA77-Y132M4,NFA77-Y160M4,NFA77-Y2.2KW,NFA77-Y3KW,NFA77-Y4KW,NFA77-Y5.5KW,NFA77-Y63M4,NFA77-Y7.5KW,NFA77-Y71M4,NFA77-Y80M4,NFA77-Y90M4,NFA77-YB100M4,NFA77-YB112M4,NFA77-YB132M4,NFA77-YB160M4,NFA77-YB63M4,NFA77-YB71M4,NFA77-YB80M4,NFA77-YB90M4,NFA77-YDP100M4,NFA77-YDP112M4,NFA77-YDP132M4,NFA77-YDP160M4,NFA77-YDP63M4,NFA77-YDP71M4,NFA77-YDP80M4,NFA77-YDP90M4,NFA77-YE100M4,NFA77-YE112M4,NFA77-YE132M4,NFA77-YE160M4,NFA77-YE63M4,NFA77-YE71M4,NFA77-YE80M4,NFA77-YE90M4,NFA77-YEJ100M4,NFA77-YEJ112M4,NFA77-YEJ132M4,NFA77-YEJ160M4,NFA77-YEJ63M4,NFA77-YEJ71M4,NFA77-YEJ80M4,NFA77-YEJ90M4,NFA77-YEJB100M4,NFA77-YEJB112M4,NFA77-YEJB132M4,NFA77-YEJB160M4,NFA77-YEJB63M4,NFA77-YEJB71M4,NFA77-YEJB80M4,NFA77-YEJB90M4,NFA77-YP100M4,NFA77-YP112M4,NFA77-YP132M4,NFA77-YP160M4,NFA77-YP63M4,NFA77-YP71M4,NFA77-YP80M4,NFA77-YP90M4,NFA77-YPB100M4,NFA77-YPB112M4,NFA77-YPB132M4,NFA77-YPB160M4,NFA77-YPB63M4,NFA77-YPB71M4,NFA77-YPB80M4,NFA77-YPB90M4,NFA77-YPE100M4,NFA77-YPE112M4,NFA77-YPE132M4,NFA77-YPE160M4,NFA77-YPE63M4,NFA77-YPE71M4,NFA77-YPE80M4,NFA77-YPE90M4,NFA77-YS100M4,NFA77-YS112M4,NFA77-YS132M4,NFA77-YS160M4,NFA77-YS63M4,NFA77-YS71M4,NFA77-YS80M4,NFA77-YS90M4,NFA77-YVB100M4,NFA77-YVB112M4,NFA77-YVB132M4,NFA77-YVB160M4,NFA77-YVB63M4,NFA77-YVB71M4,NFA77-YVB80M4,NFA77-YVB90M4,NFA77-YVP100M4,NFA77-YVP112M4,NFA77-YVP132M4,NFA77-YVP160M4,NFA77-YVP63M4,NFA77-YVP71M4,NFA77-YVP80M4,NFA77-YVP90M4,NFA77-YVPEJ100M4,NFA77-YVPEJ112M4,NFA77-YVPEJ132M4,NFA77-YVPEJ160M4,NFA77-YVPEJ63M4,NFA77-YVPEJ71M4,NFA77-YVPEJ80M4,NFA77-YVPEJ90M4,SFA77-Y0.18KW,SFA77-Y0.25KW,SFA77-Y0.37KW,SFA77-Y0.55KW,SFA77-Y0.75KW,SFA77-Y1.1KW,SFA77-Y1.5KW,SFA77-Y100M4,SFA77-Y112M4,SFA77-Y11KW,SFA77-Y132M4,SFA77-Y160M4,SFA77-Y2.2KW,SFA77-Y3KW,SFA77-Y4KW,SFA77-Y5.5KW,SFA77-Y63M4,SFA77-Y7.5KW,SFA77-Y71M4,SFA77-Y80M4,SFA77-Y90M4,SFA77-YB100M4,SFA77-YB112M4,SFA77-YB132M4,SFA77-YB160M4,SFA77-YB63M4,SFA77-YB71M4,SFA77-YB80M4,SFA77-YB90M4,SFA77-YDP100M4,SFA77-YDP112M4,SFA77-YDP132M4,SFA77-YDP160M4,SFA77-YDP63M4,SFA77-YDP71M4,SFA77-YDP80M4,SFA77-YDP90M4,SFA77-YE100M4,SFA77-YE112M4,SFA77-YE132M4,SFA77-YE160M4,SFA77-YE63M4,SFA77-YE71M4,SFA77-YE80M4,SFA77-YE90M4,SFA77-YEJ100M4,SFA77-YEJ112M4,SFA77-YEJ132M4,SFA77-YEJ160M4,SFA77-YEJ63M4,SFA77-YEJ71M4,SFA77-YEJ80M4,SFA77-YEJ90M4,SFA77-YEJB100M4,SFA77-YEJB112M4,SFA77-YEJB132M4,SFA77-YEJB160M4,SFA77-YEJB63M4,SFA77-YEJB71M4,SFA77-YEJB80M4,SFA77-YEJB90M4,SFA77-YP100M4,SFA77-YP112M4,SFA77-YP132M4,SFA77-YP160M4,SFA77-YP63M4,SFA77-YP71M4,SFA77-YP80M4,SFA77-YP90M4,SFA77-YPB100M4,SFA77-YPB112M4,SFA77-YPB132M4,SFA77-YPB160M4,SFA77-YPB63M4,SFA77-YPB71M4,SFA77-YPB80M4,SFA77-YPB90M4,SFA77-YPE100M4,SFA77-YPE112M4,SFA77-YPE132M4,SFA77-YPE160M4,SFA77-YPE63M4,SFA77-YPE71M4,SFA77-YPE80M4,SFA77-YPE90M4,SFA77-YS100M4,SFA77-YS112M4,SFA77-YS132M4,SFA77-YS160M4,SFA77-YS63M4,SFA77-YS71M4,SFA77-YS80M4,SFA77-YS90M4,SFA77-YVB100M4,SFA77-YVB112M4,SFA77-YVB132M4,SFA77-YVB160M4,SFA77-YVB63M4,SFA77-YVB71M4,SFA77-YVB80M4,SFA77-YVB90M4,SFA77-YVP100M4,SFA77-YVP112M4,SFA77-YVP132M4,SFA77-YVP160M4,SFA77-YVP63M4,SFA77-YVP71M4,SFA77-YVP80M4,SFA77-YVP90M4,SFA77-YVPEJ100M4,SFA77-YVPEJ112M4,SFA77-YVPEJ132M4,SFA77-YVPEJ160M4,SFA77-YVPEJ63M4,SFA77-YVPEJ71M4,SFA77-YVPEJ80M4,SFA77-YVPEJ90M4,WFA77-Y0.18KW,WFA77-Y0.25KW,WFA77-Y0.37KW,WFA77-Y0.55KW,WFA77-Y0.75KW,WFA77-Y1.1KW,WFA77-Y1.5KW,WFA77-Y100M4,WFA77-Y112M4,WFA77-Y11KW,WFA77-Y132M4,WFA77-Y160M4,WFA77-Y2.2KW,WFA77-Y3KW,WFA77-Y4KW,WFA77-Y5.5KW,WFA77-Y63M4,WFA77-Y7.5KW,WFA77-Y71M4,WFA77-Y80M4,WFA77-Y90M4,WFA77-YB100M4,WFA77-YB112M4,WFA77-YB132M4,WFA77-YB160M4,WFA77-YB63M4,WFA77-YB71M4,WFA77-YB80M4,WFA77-YB90M4,WFA77-YDP100M4,WFA77-YDP112M4,WFA77-YDP132M4,WFA77-YDP160M4,WFA77-YDP63M4,WFA77-YDP71M4,WFA77-YDP80M4,WFA77-YDP90M4,WFA77-YE100M4,WFA77-YE112M4,WFA77-YE132M4,WFA77-YE160M4,WFA77-YE63M4,WFA77-YE71M4,WFA77-YE80M4,WFA77-YE90M4,WFA77-YEJ100M4,WFA77-YEJ112M4,WFA77-YEJ132M4,WFA77-YEJ160M4,WFA77-YEJ63M4,WFA77-YEJ71M4,WFA77-YEJ80M4,WFA77-YEJ90M4,WFA77-YEJB100M4,WFA77-YEJB112M4,WFA77-YEJB132M4,WFA77-YEJB160M4,WFA77-YEJB63M4,WFA77-YEJB71M4,WFA77-YEJB80M4,WFA77-YEJB90M4,WFA77-YP100M4,WFA77-YP112M4,WFA77-YP132M4,WFA77-YP160M4,WFA77-YP63M4,WFA77-YP71M4,WFA77-YP80M4,WFA77-YP90M4,WFA77-YPB100M4,WFA77-YPB112M4,WFA77-YPB132M4,WFA77-YPB160M4,WFA77-YPB63M4,WFA77-YPB71M4,WFA77-YPB80M4,WFA77-YPB90M4,WFA77-YPE100M4,WFA77-YPE112M4,WFA77-YPE132M4,WFA77-YPE160M4,WFA77-YPE63M4,WFA77-YPE71M4,WFA77-YPE80M4,WFA77-YPE90M4,WFA77-YS100M4,WFA77-YS112M4,WFA77-YS132M4,WFA77-YS160M4,WFA77-YS63M4,WFA77-YS71M4,WFA77-YS80M4,WFA77-YS90M4,WFA77-YVB100M4,WFA77-YVB112M4,WFA77-YVB132M4,WFA77-YVB160M4,WFA77-YVB63M4,WFA77-YVB71M4,WFA77-YVB80M4,WFA77-YVB90M4,WFA77-YVP100M4,WFA77-YVP112M4,WFA77-YVP132M4,WFA77-YVP160M4,WFA77-YVP63M4,WFA77-YVP71M4,WFA77-YVP80M4,WFA77-YVP90M4,WFA77-YVPEJ100M4,WFA77-YVPEJ112M4,WFA77-YVPEJ132M4,WFA77-YVPEJ160M4,WFA77-YVPEJ63M4,WFA77-YVPEJ71M4,WFA77-YVPEJ80M4,WFA77-YVPEJ90M4,GFA79-Y0.18KW,GFA79-Y0.25KW,GFA79-Y0.37KW,GFA79-Y0.55KW,GFA79-Y0.75KW,GFA79-Y1.1KW,GFA79-Y1.5KW,GFA79-Y100M4,GFA79-Y112M4,GFA79-Y11KW,GFA79-Y132M4,GFA79-Y160M4,GFA79-Y2.2KW,GFA79-Y3KW,GFA79-Y4KW,GFA79-Y5.5KW,GFA79-Y63M4,GFA79-Y7.5KW,GFA79-Y71M4,GFA79-Y80M4,GFA79-Y90M4,GFA79-YB100M4,GFA79-YB112M4,GFA79-YB132M4,GFA79-YB160M4,GFA79-YB63M4,GFA79-YB71M4,GFA79-YB80M4,GFA79-YB90M4,GFA79-YDP100M4,GFA79-YDP112M4,GFA79-YDP132M4,GFA79-YDP160M4,GFA79-YDP63M4,GFA79-YDP71M4,GFA79-YDP80M4,GFA79-YDP90M4,GFA79-YE100M4,GFA79-YE112M4,GFA79-YE132M4,GFA79-YE160M4,GFA79-YE63M4,GFA79-YE71M4,GFA79-YE80M4,GFA79-YE90M4,GFA79-YEJ100M4,GFA79-YEJ112M4,GFA79-YEJ132M4,GFA79-YEJ160M4,GFA79-YEJ63M4,GFA79-YEJ71M4,GFA79-YEJ80M4,GFA79-YEJ90M4,GFA79-YEJB100M4,GFA79-YEJB112M4,GFA79-YEJB132M4,GFA79-YEJB160M4,GFA79-YEJB63M4,GFA79-YEJB71M4,GFA79-YEJB80M4,GFA79-YEJB90M4,GFA79-YP100M4,GFA79-YP112M4,GFA79-YP132M4,GFA79-YP160M4,GFA79-YP63M4,GFA79-YP71M4,GFA79-YP80M4,GFA79-YP90M4,GFA79-YPB100M4,GFA79-YPB112M4,GFA79-YPB132M4,GFA79-YPB160M4,GFA79-YPB63M4,GFA79-YPB71M4,GFA79-YPB80M4,GFA79-YPB90M4,GFA79-YPE100M4,GFA79-YPE112M4,GFA79-YPE132M4,GFA79-YPE160M4,GFA79-YPE63M4,GFA79-YPE71M4,GFA79-YPE80M4,GFA79-YPE90M4,GFA79-YS100M4,GFA79-YS112M4,GFA79-YS132M4,GFA79-YS160M4,GFA79-YS63M4,GFA79-YS71M4,GFA79-YS80M4,GFA79-YS90M4,GFA79-YVB100M4,GFA79-YVB112M4,GFA79-YVB132M4,GFA79-YVB160M4,GFA79-YVB63M4,GFA79-YVB71M4,GFA79-YVB80M4,GFA79-YVB90M4,GFA79-YVP100M4,GFA79-YVP112M4,GFA79-YVP132M4,GFA79-YVP160M4,GFA79-YVP63M4,GFA79-YVP71M4,GFA79-YVP80M4,GFA79-YVP90M4,GFA79-YVPEJ100M4,GFA79-YVPEJ112M4,GFA79-YVPEJ132M4,GFA79-YVPEJ160M4,GFA79-YVPEJ63M4,GFA79-YVPEJ71M4,GFA79-YVPEJ80M4,GFA79-YVPEJ90M4。

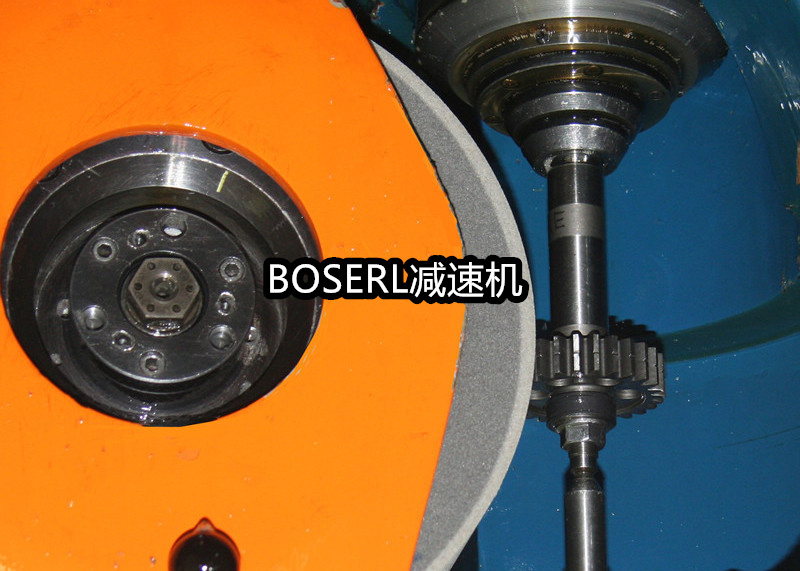

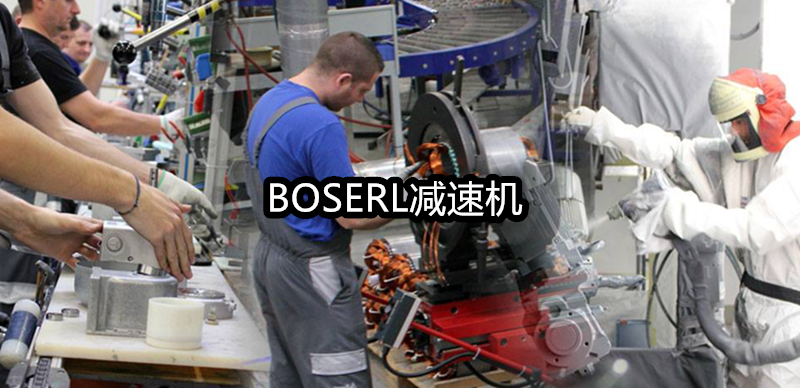

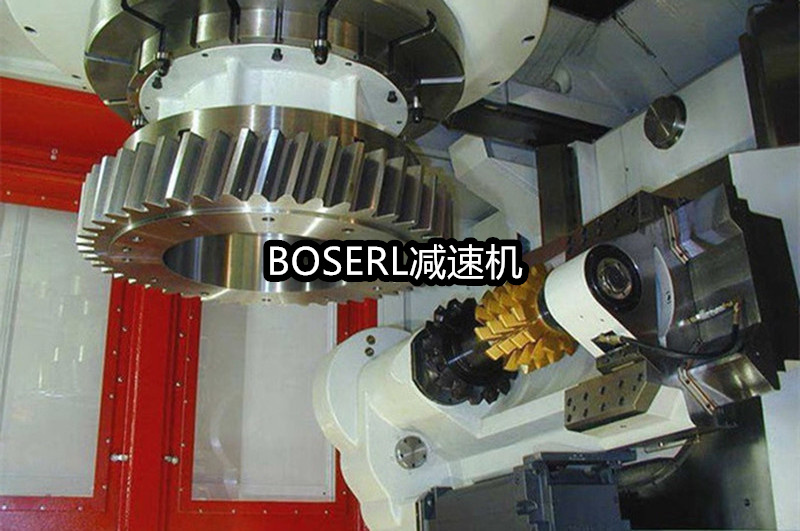

FA79減速機生產工廠展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-faxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:F79減速機

關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家

FA系列齒輪減速電機型號:FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機

FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   FA79減速機 FA77減速機結構圖 FA77減速機數模 FA77減速機樣本 FA77減速機規格
