網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速電機 > FA系列齒輪減速電機

FA29減速機詳細信息

prevnext

FA29減速機

訂購熱線:13360667204
  1. 詳細信息

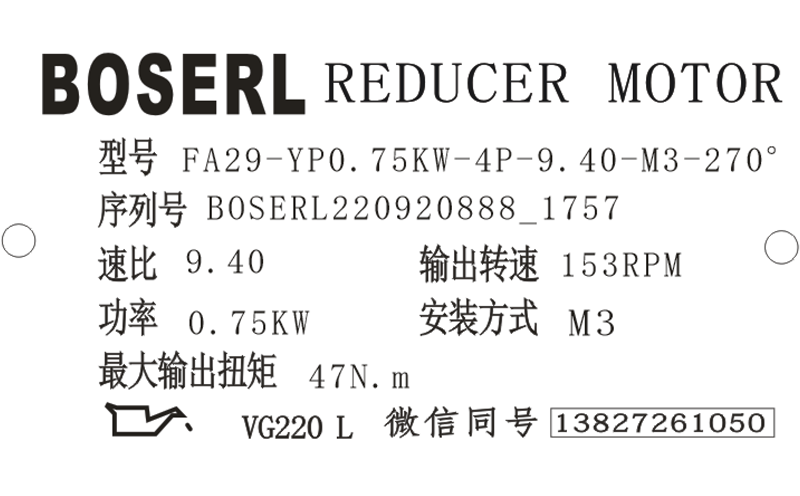

FA29減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F29減速機選型樣本。

FA29-YP0.75KW-4P-9.40-M3-270°

FA:系列代號

29:減速機規格代號

YP:電機

0.75KW:電機功率

4P:電機級數

9.40:減速機傳動比

M3:減速機安裝位置

270°:接線盒位置


FA29減速機扭力臂安裝:

請按以下步驟安裝橡膠緩沖塊:1.根據下表采用螺栓[1]和墊片[2];2.用兩個螺母[3]緊固螺栓;3.擰緊螺栓,直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA29減速機的扭力臂安裝示意圖:齒輪減速電機



減速機型號

直 徑

a[mm]

橡膠緩沖塊

內徑b[mm]

長   度

(未張緊)d[mm]

墊片寬度

c[mm]

△L(張緊)

[mm]

FA39減速機

40

12.5

20

5

1

FA49減速機

40

12.5

20

5

1.5

FA59減速機

40

12.5

20

5

1.5

FA69減速機

40

12.5

20

5

1.5

FA79減速機

60

21

30

10

1.5

FA89減速機

60

21

30

10

1.5

FA99減速機

80

25

40

12

2

FA109減速機

80

25

40

12

2

FA129減速機

100

32

60

15

2

FA159減速機

120

32

60

15

2

FA29減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA29減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機


FA29減速機型號:

AFA27-Y0.12KW,AFA27-Y0.18KW,AFA27-Y0.25KW,AFA27-Y0.37KW,AFA27-Y0.55KW,AFA27-Y0.75KW,AFA27-Y1.1KW,AFA27-Y1.5KW,AFA27-Y2.2KW,AFA27-Y3KW,AFA27-YB100M4,AFA27-YB63M4,AFA27-YB71M4,AFA27-YB80M4,AFA27-YB90M4,AFA27-YDP100M4,AFA27-YDP63M4,AFA27-YDP71M4,AFA27-YDP80M4,AFA27-YDP90M4,AFA27-YE100M4,AFA27-YE63M4,AFA27-YE71M4,AFA27-YE80M4,AFA27-YE90M4,AFA27-YEJ100M4,AFA27-YEJ63M4,AFA27-YEJ71M4,AFA27-YEJ80M4,AFA27-YEJ90M4,AFA27-YEJB100M4,AFA27-YEJB63M4,AFA27-YEJB71M4,AFA27-YEJB80M4,AFA27-YEJB90M4,AFA27-YP100M4,AFA27-YP63M4,AFA27-YP71M4,AFA27-YP80M4,AFA27-YP90M4,AFA27-YPB100M4,AFA27-YPB63M4,AFA27-YPB71M4,AFA27-YPB80M4,AFA27-YPB90M4,AFA27-YPE100M4,AFA27-YPE63M4,AFA27-YPE71M4,AFA27-YPE80M4,AFA27-YPE90M4,AFA27-YS100M4,AFA27-YS63M4,AFA27-YS71M4,AFA27-YS80M4,AFA27-YS90M4,AFA27-YVB100M4,AFA27-YVB63M4,AFA27-YVB71M4,AFA27-YVB80M4,AFA27-YVB90M4,AFA27-YVP100M4,AFA27-YVP63M4,AFA27-YVP71M4,AFA27-YVP80M4,AFA27-YVP90M4,AFA27-YVPEJ100M4,AFA27-YVPEJ63M4,AFA27-YVPEJ71M4,AFA27-YVPEJ80M4,AFA27-YVPEJ90M4,AFA27-Y63M4,AFA27-Y71M4,AFA27-Y80M4,AFA27-Y90M4,AFA27-Y100M4,NFA27-Y0.12KW,NFA27-Y0.18KW,NFA27-Y0.25KW,NFA27-Y0.37KW,NFA27-Y0.55KW,NFA27-Y0.75KW,NFA27-Y1.1KW,NFA27-Y1.5KW,NFA27-Y2.2KW,NFA27-Y3KW,NFA27-YB100M4,NFA27-YB63M4,NFA27-YB71M4,NFA27-YB80M4,NFA27-YB90M4,NFA27-YDP100M4,NFA27-YDP63M4,NFA27-YDP71M4,NFA27-YDP80M4,NFA27-YDP90M4,NFA27-YE100M4,NFA27-YE63M4,NFA27-YE71M4,NFA27-YE80M4,NFA27-YE90M4,NFA27-YEJ100M4,NFA27-YEJ63M4,NFA27-YEJ71M4,NFA27-YEJ80M4,NFA27-YEJ90M4,NFA27-YEJB100M4,NFA27-YEJB63M4,NFA27-YEJB71M4,NFA27-YEJB80M4,NFA27-YEJB90M4,NFA27-YP100M4,NFA27-YP63M4,NFA27-YP71M4,NFA27-YP80M4,NFA27-YP90M4,NFA27-YPB100M4,NFA27-YPB63M4,NFA27-YPB71M4,NFA27-YPB80M4,NFA27-YPB90M4,NFA27-YPE100M4,NFA27-YPE63M4,NFA27-YPE71M4,NFA27-YPE80M4,NFA27-YPE90M4,NFA27-YS100M4,NFA27-YS63M4,NFA27-YS71M4,NFA27-YS80M4,NFA27-YS90M4,NFA27-YVB100M4,NFA27-YVB63M4,NFA27-YVB71M4,NFA27-YVB80M4,NFA27-YVB90M4,NFA27-YVP100M4,NFA27-YVP63M4,NFA27-YVP71M4,NFA27-YVP80M4,NFA27-YVP90M4,NFA27-YVPEJ100M4,NFA27-YVPEJ63M4,NFA27-YVPEJ71M4,NFA27-YVPEJ80M4,NFA27-YVPEJ90M4,NFA27-Y63M4,NFA27-Y71M4,NFA27-Y80M4,NFA27-Y90M4,NFA27-Y100M4,WFA27-Y0.12KW,WFA27-Y0.18KW,WFA27-Y0.25KW,WFA27-Y0.37KW,WFA27-Y0.55KW,WFA27-Y0.75KW,WFA27-Y1.1KW,WFA27-Y1.5KW,WFA27-Y2.2KW,WFA27-Y3KW,WFA27-YB100M4,WFA27-YB63M4,WFA27-YB71M4,WFA27-YB80M4,WFA27-YB90M4,WFA27-YDP100M4,WFA27-YDP63M4,WFA27-YDP71M4,WFA27-YDP80M4,WFA27-YDP90M4,WFA27-YE100M4,WFA27-YE63M4,WFA27-YE71M4,WFA27-YE80M4,WFA27-YE90M4,WFA27-YEJ100M4,WFA27-YEJ63M4,WFA27-YEJ71M4,WFA27-YEJ80M4,WFA27-YEJ90M4,WFA27-YEJB100M4,WFA27-YEJB63M4,WFA27-YEJB71M4,WFA27-YEJB80M4,WFA27-YEJB90M4,WFA27-YP100M4,WFA27-YP63M4,WFA27-YP71M4,WFA27-YP80M4,WFA27-YP90M4,WFA27-YPB100M4,WFA27-YPB63M4,WFA27-YPB71M4,WFA27-YPB80M4,WFA27-YPB90M4,WFA27-YPE100M4,WFA27-YPE63M4,WFA27-YPE71M4,WFA27-YPE80M4,WFA27-YPE90M4,WFA27-YS100M4,WFA27-YS63M4,WFA27-YS71M4,WFA27-YS80M4,WFA27-YS90M4,WFA27-YVB100M4,WFA27-YVB63M4,WFA27-YVB71M4,WFA27-YVB80M4,WFA27-YVB90M4,WFA27-YVP100M4,WFA27-YVP63M4,WFA27-YVP71M4,WFA27-YVP80M4,WFA27-YVP90M4,WFA27-YVPEJ100M4,WFA27-YVPEJ63M4,WFA27-YVPEJ71M4,WFA27-YVPEJ80M4,WFA27-YVPEJ90M4,WFA27-Y63M4,WFA27-Y71M4,WFA27-Y80M4,WFA27-Y90M4,WFA27-Y100M4,SFA27-Y0.12KW,SFA27-Y0.18KW,SFA27-Y0.25KW,SFA27-Y0.37KW,SFA27-Y0.55KW,SFA27-Y0.75KW,SFA27-Y1.1KW,SFA27-Y1.5KW,SFA27-Y2.2KW,SFA27-Y3KW,SFA27-YB100M4,SFA27-YB63M4,SFA27-YB71M4,SFA27-YB80M4,SFA27-YB90M4,SFA27-YDP100M4,SFA27-YDP63M4,SFA27-YDP71M4,SFA27-YDP80M4,SFA27-YDP90M4,SFA27-YE100M4,SFA27-YE63M4,SFA27-YE71M4,SFA27-YE80M4,SFA27-YE90M4,SFA27-YEJ100M4,SFA27-YEJ63M4,SFA27-YEJ71M4,SFA27-YEJ80M4,SFA27-YEJ90M4,SFA27-YEJB100M4,SFA27-YEJB63M4,SFA27-YEJB71M4,SFA27-YEJB80M4,SFA27-YEJB90M4,SFA27-YP100M4,SFA27-YP63M4,SFA27-YP71M4,SFA27-YP80M4,SFA27-YP90M4,SFA27-YPB100M4,SFA27-YPB63M4,SFA27-YPB71M4,SFA27-YPB80M4,SFA27-YPB90M4,SFA27-YPE100M4,SFA27-YPE63M4,SFA27-YPE71M4,SFA27-YPE80M4,SFA27-YPE90M4,SFA27-YS100M4,SFA27-YS63M4,SFA27-YS71M4,SFA27-YS80M4,SFA27-YS90M4,SFA27-YVB100M4,SFA27-YVB63M4,SFA27-YVB71M4,SFA27-YVB80M4,SFA27-YVB90M4,SFA27-YVP100M4,SFA27-YVP63M4,SFA27-YVP71M4,SFA27-YVP80M4,SFA27-YVP90M4,SFA27-YVPEJ100M4,SFA27-YVPEJ63M4,SFA27-YVPEJ71M4,SFA27-YVPEJ80M4,SFA27-YVPEJ90M4,SFA27-Y63M4,SFA27-Y71M4,SFA27-Y80M4,SFA27-Y90M4,SFA27-Y100M4,GFA29-Y0.12KW,GFA29-Y0.18KW,GFA29-Y0.25KW,GFA29-Y0.37KW,GFA29-Y0.55KW,GFA29-Y0.75KW,GFA29-Y1.1KW,GFA29-Y1.5KW,GFA29-Y2.2KW,GFA29-Y3KW,GFA29-YB100M4,GFA29-YB63M4,GFA29-YB71M4,GFA29-YB80M4,GFA29-YB90M4,GFA29-YDP100M4,GFA29-YDP63M4,GFA29-YDP71M4,GFA29-YDP80M4,GFA29-YDP90M4,GFA29-YE100M4,GFA29-YE63M4,GFA29-YE71M4,GFA29-YE80M4,GFA29-YE90M4,GFA29-YEJ100M4,GFA29-YEJ63M4,GFA29-YEJ71M4,GFA29-YEJ80M4,GFA29-YEJ90M4,GFA29-YEJB100M4,GFA29-YEJB63M4,GFA29-YEJB71M4,GFA29-YEJB80M4,GFA29-YEJB90M4,GFA29-YP100M4,GFA29-YP63M4,GFA29-YP71M4,GFA29-YP80M4,GFA29-YP90M4,GFA29-YPB100M4,GFA29-YPB63M4,GFA29-YPB71M4,GFA29-YPB80M4,GFA29-YPB90M4,GFA29-YPE100M4,GFA29-YPE63M4,GFA29-YPE71M4,GFA29-YPE80M4,GFA29-YPE90M4,GFA29-YS100M4,GFA29-YS63M4,GFA29-YS71M4,GFA29-YS80M4,GFA29-YS90M4,GFA29-YVB100M4,GFA29-YVB63M4,GFA29-YVB71M4,GFA29-YVB80M4,GFA29-YVB90M4,GFA29-YVP100M4,GFA29-YVP63M4,GFA29-YVP71M4,GFA29-YVP80M4,GFA29-YVP90M4,GFA29-YVPEJ100M4,GFA29-YVPEJ63M4,GFA29-YVPEJ71M4,GFA29-YVPEJ80M4,GFA29-YVPEJ90M4,GFA29-Y63M4,GFA29-Y71M4,GFA29-Y80M4,GFA29-Y90M4,GFA29-Y100M4。

FA29減速機生產工廠展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-faxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:F29減速機

關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家

FA系列齒輪減速電機型號:FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機

FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   FA29減速機 FA27減速機結構圖 FA27減速機數模 FA27減速機樣本 FA27減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FA29減速機數模 點擊下載
FA29減速機樣本 點擊下載
