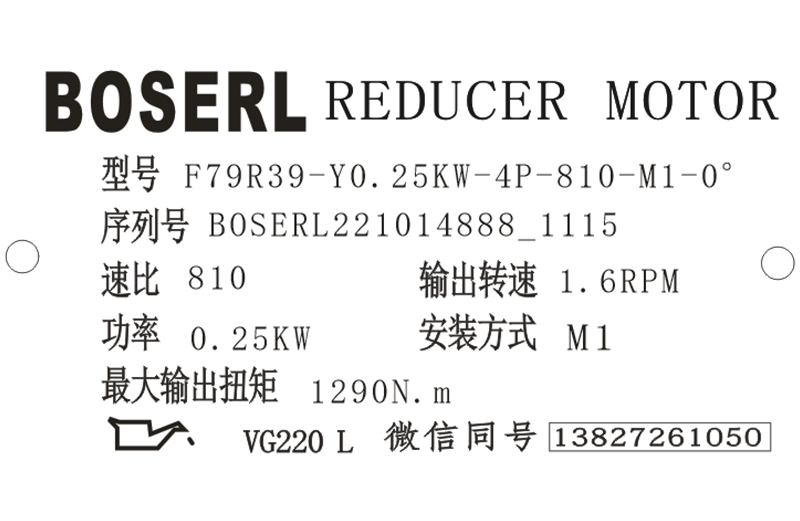

F79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F79R39減速機選型樣本。

F79R39-Y0.25KW-4P-810-M1-0°

F/R：系列代號

79/39：減速機規格代號

Y：電機

0.25KW：電機功率

4P：電機級數

810：減速機傳動比

M1：減速機安裝位置

0°：接線盒位置

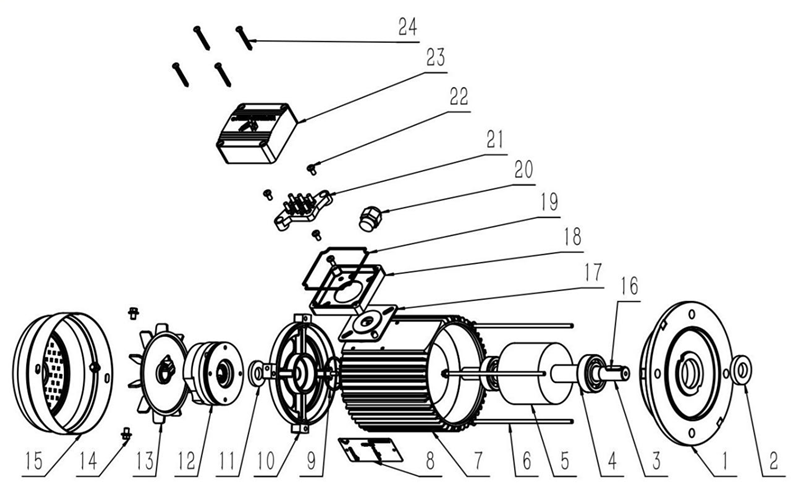

F79R39減速機電機拆解結構圖：F79R39減速機電機怎么拆？請看下圖。下列示圖為F79R39減速機電機結構原理圖，示圖僅作零件清單的歸類用途。根據電機的規格和設計型號的不同可能存在的偏差！平行軸斜齒輪減速機

F79R39減速機電機危險操作行為示警：

運行過程中，需要相應的防護措施，避免由于電機可能帶電、裸露、移動或者旋轉部件及高溫表面可能產生的危險。齒輪減速電機

請勿在爆炸環境中使用。否則有可能會導致爆炸、著火、火災、觸電、受傷、裝置損壞等。(若確實有需要，請選擇防爆型電機)。

搬運、安裝、接線、運轉·操作、保養·檢查、故障診斷等作業，請具有專門知識和技能者實施。否則有可能會導致爆炸、著火、火災、觸電、受傷、裝置損壞等。

請勿在通電狀態下進行移動、安裝、接線和檢查作業。請務必切斷電源后再操作。否則有可能會導致觸電。

用于人員輸送或升降裝置時，請?jiān)谘b置側設置安全保護裝置。否則，可能會因失控和墜落而導致人身事故以及裝置損壞。

制動器上請勿粘附水以及油類。否則，可能會因制動扭矩的降低而導致墜落、失控等事故。

減速電機的檢修需要熟練技術，請務必返送回本公司的專門工廠。F系列減速機

F79R39減速電機型號：

YQF77R37-Y0.12KW，YQF77R37-Y0.18KW，YQF77R37-Y0.25KW，YQF77R37-Y0.37KW，YQF77R37-Y0.55KW，YQF77R37-Y0.75KW，YQF77R37-Y63M4，YQF77R37-Y71M4，YQF77R37-Y80M4，YQF77RF37-Y63M4，YQF77RF37-Y71M4，YQF77RF37-Y80M4，YQF77RF37-YB63M4，YQF77RF37-YB71M4，YQF77RF37-YB80M4，YQF77RF37-YDP63M4，YQF77RF37-YDP71M4，YQF77RF37-YDP80M4，YQF77RF37-YE63M4，YQF77RF37-YE71M4，YQF77RF37-YE80M4，YQF77RF37-YEJ63M4，YQF77RF37-YEJ71M4，YQF77RF37-YEJ80M4，YQF77RF37-YEJB63M4，YQF77RF37-YEJB71M4，YQF77RF37-YEJB80M4，YQF77RF37-YP63M4，YQF77RF37-YP71M4，YQF77RF37-YP80M4，YQF77RF37-YPB63M4，YQF77RF37-YPB71M4，YQF77RF37-YPB80M4，YQF77RF37-YPE63M4，YQF77RF37-YPE71M4，YQF77RF37-YPE80M4，YQF77RF37-YS63M4，YQF77RF37-YS71M4，YQF77RF37-YS80M4，YQF77RF37-YVB63M4，YQF77RF37-YVB71M4，YQF77RF37-YVB80M4，YQF77RF37-YVP63M4，YQF77RF37-YVP71M4，YQF77RF37-YVP80M4，YQF77RF37-YVPEJ63M4，YQF77RF37-YVPEJ71M4，YQF77RF37-YVPEJ80M4，WF77R37-Y0.12KW，WF77R37-Y0.18KW，WF77R37-Y0.25KW，WF77R37-Y0.37KW，WF77R37-Y0.55KW，WF77R37-Y0.75KW，WF77R37-Y63M4，WF77R37-Y71M4，WF77R37-Y80M4，WF77RF37-Y63M4，WF77RF37-Y71M4，WF77RF37-Y80M4，WF77RF37-YB63M4，WF77RF37-YB71M4，WF77RF37-YB80M4，WF77RF37-YDP63M4，WF77RF37-YDP71M4，WF77RF37-YDP80M4，WF77RF37-YE63M4，WF77RF37-YE71M4，WF77RF37-YE80M4，WF77RF37-YEJ63M4，WF77RF37-YEJ71M4，WF77RF37-YEJ80M4，WF77RF37-YEJB63M4，WF77RF37-YEJB71M4，WF77RF37-YEJB80M4，WF77RF37-YP63M4，WF77RF37-YP71M4，WF77RF37-YP80M4，WF77RF37-YPB63M4，WF77RF37-YPB71M4，WF77RF37-YPB80M4，WF77RF37-YPE63M4，WF77RF37-YPE71M4，WF77RF37-YPE80M4，WF77RF37-YS63M4，WF77RF37-YS71M4，WF77RF37-YS80M4，WF77RF37-YVB63M4，WF77RF37-YVB71M4，WF77RF37-YVB80M4，WF77RF37-YVP63M4，WF77RF37-YVP71M4，WF77RF37-YVP80M4，WF77RF37-YVPEJ63M4，WF77RF37-YVPEJ71M4，WF77RF37-YVPEJ80M4，XDF77R37-Y0.12KW，XDF77R37-Y0.18KW，XDF77R37-Y0.25KW，XDF77R37-Y0.37KW，XDF77R37-Y0.55KW，XDF77R37-Y0.75KW，XDF77R37-Y63M4，XDF77R37-Y71M4，XDF77R37-Y80M4，XDF77RF37-Y63M4，XDF77RF37-Y71M4，XDF77RF37-Y80M4，XDF77RF37-YB63M4，XDF77RF37-YB71M4，XDF77RF37-YB80M4，XDF77RF37-YDP63M4，XDF77RF37-YDP71M4，XDF77RF37-YDP80M4，XDF77RF37-YE63M4，XDF77RF37-YE71M4，XDF77RF37-YE80M4，XDF77RF37-YEJ63M4，XDF77RF37-YEJ71M4，XDF77RF37-YEJ80M4，XDF77RF37-YEJB63M4，XDF77RF37-YEJB71M4，XDF77RF37-YEJB80M4，XDF77RF37-YP63M4，XDF77RF37-YP71M4，XDF77RF37-YP80M4，XDF77RF37-YPB63M4，XDF77RF37-YPB71M4，XDF77RF37-YPB80M4，XDF77RF37-YPE63M4，XDF77RF37-YPE71M4，XDF77RF37-YPE80M4，XDF77RF37-YS63M4，XDF77RF37-YS71M4，XDF77RF37-YS80M4，XDF77RF37-YVB63M4，XDF77RF37-YVB71M4，XDF77RF37-YVB80M4，XDF77RF37-YVP63M4，XDF77RF37-YVP71M4，XDF77RF37-YVP80M4，XDF77RF37-YVPEJ63M4，XDF77RF37-YVPEJ71M4，XDF77RF37-YVPEJ80M4，SF77R37-Y0.12KW，SF77R37-Y0.18KW，SF77R37-Y0.25KW，SF77R37-Y0.37KW，SF77R37-Y0.55KW，SF77R37-Y0.75KW，SF77R37-Y63M4，SF77R37-Y71M4，SF77R37-Y80M4，SF77RF37-Y63M4，SF77RF37-Y71M4，SF77RF37-Y80M4，SF77RF37-YB63M4，SF77RF37-YB71M4，SF77RF37-YB80M4，SF77RF37-YDP63M4，SF77RF37-YDP71M4，SF77RF37-YDP80M4，SF77RF37-YE63M4，SF77RF37-YE71M4，SF77RF37-YE80M4，SF77RF37-YEJ63M4，SF77RF37-YEJ71M4，SF77RF37-YEJ80M4，SF77RF37-YEJB63M4，SF77RF37-YEJB71M4，SF77RF37-YEJB80M4，SF77RF37-YP63M4，SF77RF37-YP71M4，SF77RF37-YP80M4，SF77RF37-YPB63M4，SF77RF37-YPB71M4，SF77RF37-YPB80M4，SF77RF37-YPE63M4，SF77RF37-YPE71M4，SF77RF37-YPE80M4，SF77RF37-YS63M4，SF77RF37-YS71M4，SF77RF37-YS80M4，SF77RF37-YVB63M4，SF77RF37-YVB71M4，SF77RF37-YVB80M4，SF77RF37-YVP63M4，SF77RF37-YVP71M4，SF77RF37-YVP80M4，SF77RF37-YVPEJ63M4，SF77RF37-YVPEJ71M4，SF77RF37-YVPEJ80M4，JCF77R37-Y0.12KW，JCF77R37-Y0.18KW，JCF77R37-Y0.25KW，JCF77R37-Y0.37KW，JCF77R37-Y0.55KW，JCF77R37-Y0.75KW，JCF77R37-Y63M4，JCF77R37-Y71M4，JCF77R37-Y80M4，JCF77RF37-Y63M4，JCF77RF37-Y71M4，JCF77RF37-Y80M4，JCF77RF37-YB63M4，JCF77RF37-YB71M4，JCF77RF37-YB80M4，JCF77RF37-YDP63M4，JCF77RF37-YDP71M4，JCF77RF37-YDP80M4，JCF77RF37-YE63M4，JCF77RF37-YE71M4，JCF77RF37-YE80M4，JCF77RF37-YEJ63M4，JCF77RF37-YEJ71M4，JCF77RF37-YEJ80M4，JCF77RF37-YEJB63M4，JCF77RF37-YEJB71M4，JCF77RF37-YEJB80M4，JCF77RF37-YP63M4，JCF77RF37-YP71M4，JCF77RF37-YP80M4，JCF77RF37-YPB63M4，JCF77RF37-YPB71M4，JCF77RF37-YPB80M4，JCF77RF37-YPE63M4，JCF77RF37-YPE71M4，JCF77RF37-YPE80M4，JCF77RF37-YS63M4，JCF77RF37-YS71M4，JCF77RF37-YS80M4，JCF77RF37-YVB63M4，JCF77RF37-YVB71M4，JCF77RF37-YVB80M4，JCF77RF37-YVP63M4，JCF77RF37-YVP71M4，JCF77RF37-YVP80M4，JCF77RF37-YVPEJ63M4，JCF77RF37-YVPEJ71M4，JCF77RF37-YVPEJ80M4，NF77R37-Y0.12KW，NF77R37-Y0.18KW，NF77R37-Y0.25KW，NF77R37-Y0.37KW，NF77R37-Y0.55KW，NF77R37-Y0.75KW，NF77R37-Y63M4，NF77R37-Y71M4，NF77R37-Y80M4，NF77RF37-Y63M4，NF77RF37-Y71M4，NF77RF37-Y80M4，NF77RF37-YB63M4，NF77RF37-YB71M4，NF77RF37-YB80M4，NF77RF37-YDP63M4，NF77RF37-YDP71M4，NF77RF37-YDP80M4，NF77RF37-YE63M4，NF77RF37-YE71M4，NF77RF37-YE80M4，NF77RF37-YEJ63M4，NF77RF37-YEJ71M4，NF77RF37-YEJ80M4，NF77RF37-YEJB63M4，NF77RF37-YEJB71M4，NF77RF37-YEJB80M4，NF77RF37-YP63M4，NF77RF37-YP71M4，NF77RF37-YP80M4，NF77RF37-YPB63M4，NF77RF37-YPB71M4，NF77RF37-YPB80M4，NF77RF37-YPE63M4，NF77RF37-YPE71M4，NF77RF37-YPE80M4，NF77RF37-YS63M4，NF77RF37-YS71M4，NF77RF37-YS80M4，NF77RF37-YVB63M4，NF77RF37-YVB71M4，NF77RF37-YVB80M4，NF77RF37-YVP63M4，NF77RF37-YVP71M4，NF77RF37-YVP80M4，NF77RF37-YVPEJ63M4，NF77RF37-YVPEJ71M4，NF77RF37-YVPEJ80M4，AF77R37-Y0.12KW，AF77R37-Y0.18KW，AF77R37-Y0.25KW，AF77R37-Y0.37KW，AF77R37-Y0.55KW，AF77R37-Y0.75KW，AF77R37-Y63M4，AF77R37-Y71M4，AF77R37-Y80M4，AF77RF37-Y63M4，AF77RF37-Y71M4，AF77RF37-Y80M4，AF77RF37-YB63M4，AF77RF37-YB71M4，AF77RF37-YB80M4，AF77RF37-YDP63M4，AF77RF37-YDP71M4，AF77RF37-YDP80M4，AF77RF37-YE63M4，AF77RF37-YE71M4，AF77RF37-YE80M4，AF77RF37-YEJ63M4，AF77RF37-YEJ71M4，AF77RF37-YEJ80M4，AF77RF37-YEJB63M4，AF77RF37-YEJB71M4，AF77RF37-YEJB80M4，AF77RF37-YP63M4，AF77RF37-YP71M4，AF77RF37-YP80M4，AF77RF37-YPB63M4，AF77RF37-YPB71M4，AF77RF37-YPB80M4，AF77RF37-YPE63M4，AF77RF37-YPE71M4，AF77RF37-YPE80M4，AF77RF37-YS63M4，AF77RF37-YS71M4，AF77RF37-YS80M4，AF77RF37-YVB63M4，AF77RF37-YVB71M4，AF77RF37-YVB80M4，AF77RF37-YVP63M4，AF77RF37-YVP71M4，AF77RF37-YVP80M4，AF77RF37-YVPEJ63M4，AF77RF37-YVPEJ71M4，AF77RF37-YVPEJ80M4，F(xiàn)W77RW37-Y0.12KW，F(xiàn)W77RW37-Y0.18KW，F(xiàn)W77RW37-Y0.25KW，F(xiàn)W77RW37-Y0.37KW，F(xiàn)W77RW37-Y0.55KW，F(xiàn)W77RW37-Y0.75KW，F(xiàn)W77RW37-Y63M4，F(xiàn)W77RW37-Y71M4，F(xiàn)W77RW37-Y80M4，F(xiàn)W77RWF37-Y63M4，F(xiàn)W77RWF37-Y71M4，F(xiàn)W77RWF37-Y80M4，F(xiàn)W77RWF37-YB63M4，F(xiàn)W77RWF37-YB71M4，F(xiàn)W77RWF37-YB80M4，F(xiàn)W77RWF37-YDP63M4，F(xiàn)W77RWF37-YDP71M4，F(xiàn)W77RWF37-YDP80M4，F(xiàn)W77RWF37-YE63M4，F(xiàn)W77RWF37-YE71M4，F(xiàn)W77RWF37-YE80M4，F(xiàn)W77RWF37-YEJ63M4，F(xiàn)W77RWF37-YEJ71M4，F(xiàn)W77RWF37-YEJ80M4，F(xiàn)W77RWF37-YEJB63M4，F(xiàn)W77RWF37-YEJB71M4，F(xiàn)W77RWF37-YEJB80M4，F(xiàn)W77RWF37-YP63M4，F(xiàn)W77RWF37-YP71M4，F(xiàn)W77RWF37-YP80M4，F(xiàn)W77RWF37-YPB63M4，F(xiàn)W77RWF37-YPB71M4，F(xiàn)W77RWF37-YPB80M4，F(xiàn)W77RWF37-YPE63M4，F(xiàn)W77RWF37-YPE71M4，F(xiàn)W77RWF37-YPE80M4，F(xiàn)W77RWF37-YS63M4，F(xiàn)W77RWF37-YS71M4，F(xiàn)W77RWF37-YS80M4，F(xiàn)W77RWF37-YVB63M4，F(xiàn)W77RWF37-YVB71M4，F(xiàn)W77RWF37-YVB80M4，F(xiàn)W77RWF37-YVP63M4，F(xiàn)W77RWF37-YVP71M4，F(xiàn)W77RWF37-YVP80M4，F(xiàn)W77RWF37-YVPEJ63M4，F(xiàn)W77RWF37-YVPEJ71M4，F(xiàn)W77RWF37-YVPEJ80M4，F(xiàn)79R39-Y0.12KW，F(xiàn)79R39-Y0.18KW，F(xiàn)79R39-Y0.25KW，F(xiàn)79R39-Y0.39KW，F(xiàn)79R39-Y0.55KW，F(xiàn)79R39-Y0.75KW，F(xiàn)79R39-Y63M4，F(xiàn)79R39-Y71M4，F(xiàn)79R39-Y80M4，F(xiàn)79RF39-Y63M4，F(xiàn)79RF39-Y71M4，F(xiàn)79RF39-Y80M4，F(xiàn)79RF39-YB63M4，F(xiàn)79RF39-YB71M4，F(xiàn)79RF39-YB80M4，F(xiàn)79RF39-YDP63M4，F(xiàn)79RF39-YDP71M4，F(xiàn)79RF39-YDP80M4，F(xiàn)79RF39-YE63M4，F(xiàn)79RF39-YE71M4，F(xiàn)79RF39-YE80M4，F(xiàn)79RF39-YEJ63M4，F(xiàn)79RF39-YEJ71M4，F(xiàn)79RF39-YEJ80M4，F(xiàn)79RF39-YEJB63M4，F(xiàn)79RF39-YEJB71M4，F(xiàn)79RF39-YEJB80M4，F(xiàn)79RF39-YP63M4，F(xiàn)79RF39-YP71M4，F(xiàn)79RF39-YP80M4，F(xiàn)79RF39-YPB63M4，F(xiàn)79RF39-YPB71M4，F(xiàn)79RF39-YPB80M4，F(xiàn)79RF39-YPE63M4，F(xiàn)79RF39-YPE71M4，F(xiàn)79RF39-YPE80M4，F(xiàn)79RF39-YS63M4，F(xiàn)79RF39-YS71M4，F(xiàn)79RF39-YS80M4，F(xiàn)79RF39-YVB63M4，F(xiàn)79RF39-YVB71M4，F(xiàn)79RF39-YVB80M4，F(xiàn)79RF39-YVP63M4，F(xiàn)79RF39-YVP71M4，F(xiàn)79RF39-YVP80M4，F(xiàn)79RF39-YVPEJ63M4，F(xiàn)79RF39-YVPEJ71M4，F(xiàn)79RF39-YVPEJ80M4。

F79R39減速電機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://njxyx.com/product/list-fxiliejiansuji-cn.html

推薦型號：F79減速機
