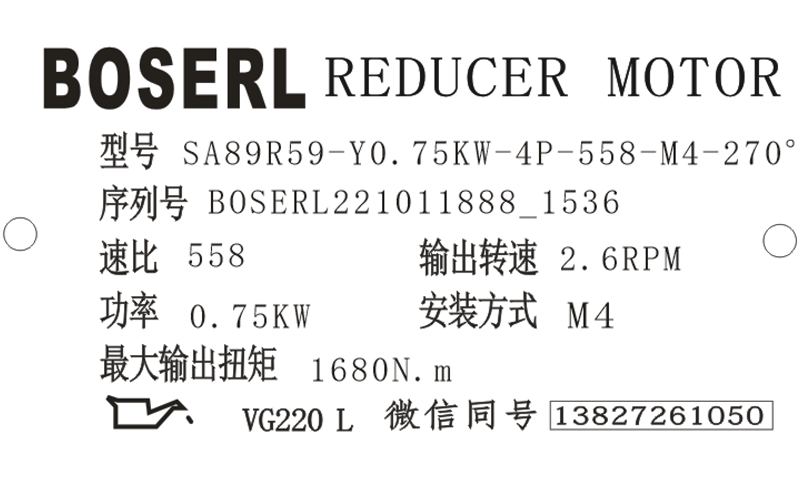

SA89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA89R59減速機選型樣本。

SA89R59-Y0.75KW-4P-558-M4-270°

SA/R：系列代號

89/59：減速機規格代號

Y：電機

0.75KW：電機功率

4P：電機級數

558：減速機傳動比

M4：減速機安裝位置

270°：接線盒位置

SA89R59減速機電機檢查危險事項：

必須遵循危險區域用電氣設備連線和用法的相關標準。只有經嚴格訓練且熟悉相關標準的專業人員才允許操作這一類SA89R59減速機電機。

根據所述工作的特性，在對SA89R59減速機電機或所驅動設備進行操作前，先切斷電源并鎖定。工作過程中一定要確保無爆炸性氣體存在。齒輪減速電機

在運轉過程中進行保養、檢查時，請絕對不要觸及旋轉體(旋轉軸等)。否則有可能會被卷入，發生人身事故。

停止時檢查齒面狀況時，請切實進行驅動機、被動機的止轉。否則有可能會被卷入齒輪嚙合部分，發生人身事故。

施加規定值以上的負載也會降低電機和齒輪的壽命，導致SA89R59減速機電機損傷。(制動器部分的檢查、保養)

請勿在用手動釋放桿釋放制動器的狀態下進行運轉。否則有可能會導致墜落、失控事故。

進行正式運轉前，接通和切斷電源，確認制動器的動作。否則有可能會導致墜落、失控事故。

檢查、調整間隙后，請勿在拆下風扇罩的狀態下運轉電機。否則有可能會被卷入、受傷。自鎖減速機

用于升降時，請勿在起吊負載狀態下進行釋放制動器的操作。否則有可能會導致墜落事故。

SA89R59減速機電機震動解決方案：

電機不對中，重新對中；

支撐太弱，加固基座；

電機裝配螺釘松動，擰緊螺釘；

聯軸器不平衡，校正聯軸器平衡；

所驅動設備不平衡，校正所驅動設備平衡；

轉子不平衡量大，更換轉子；

軸承損壞，更換軸承；

電機缺相運行:電源接觸不良，修復觸點及電源線路；

電機缺相運行:線圈斷路，更換定子線圈；

軸向竄動太大，調節軸承或增加墊片；伺服電機連接減速機

線圈內有一個線苞嵌反，更換定子線圈。

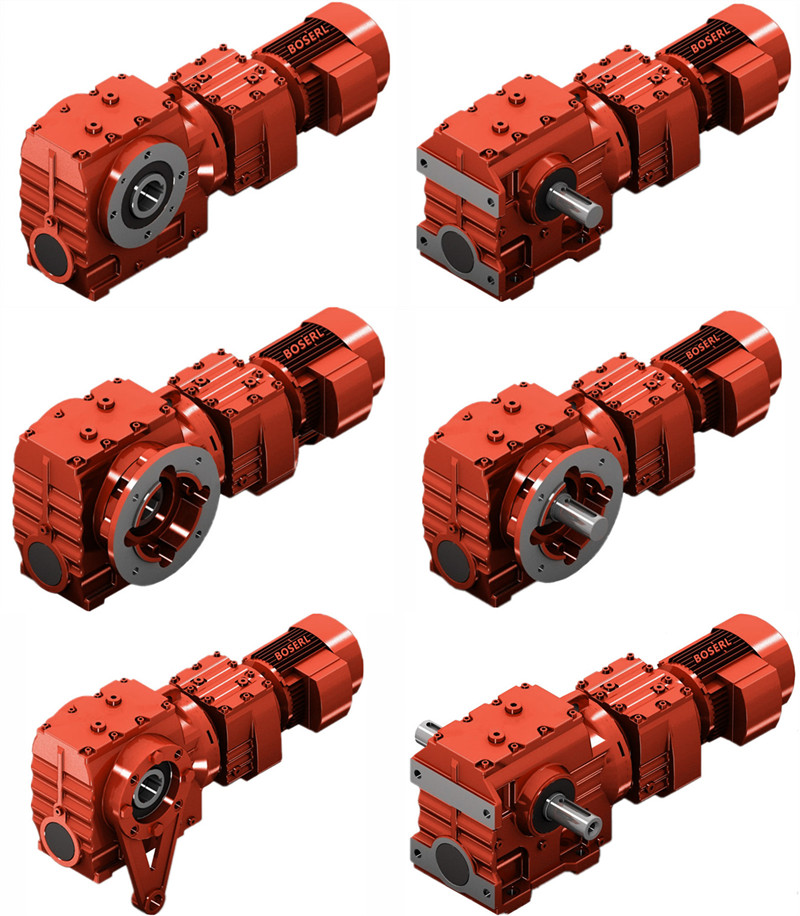

SA89R59減速電機型號：

YQSA87R57-Y63M4，YQSA87R57-Y71M4，YQSA87R57-Y80M4，YQSA87R57-Y90M4，YQSA87RF57-Y0.12KW，YQSA87RF57-Y0.18KW，YQSA87RF57-Y0.25KW，YQSA87RF57-Y0.37KW，YQSA87RF57-Y0.55KW，YQSA87RF57-Y0.75KW，YQSA87RF57-Y1.1KW，YQSA87RF57-Y1.5KW，YQSA87RF57-Y63M4，YQSA87RF57-Y71M4，YQSA87RF57-Y80M4，YQSA87RF57-Y90M4，YQSA87RF57-YB63M4，YQSA87RF57-YB71M4，YQSA87RF57-YB80M4，YQSA87RF57-YB90S4，YQSA87RF57-YDP63M4，YQSA87RF57-YDP71M4，YQSA87RF57-YDP80M4，YQSA87RF57-YDP90S4，YQSA87RF57-YE63M4，YQSA87RF57-YE71M4，YQSA87RF57-YE80M4，YQSA87RF57-YE90S4，YQSA87RF57-YEJ63M4，YQSA87RF57-YEJ71M4，YQSA87RF57-YEJ80M4，YQSA87RF57-YEJ90S4，YQSA87RF57-YEJB63M4，YQSA87RF57-YEJB71M4，YQSA87RF57-YEJB80M4，YQSA87RF57-YEJB90S4，YQSA87RF57-YP63M4，YQSA87RF57-YP71M4，YQSA87RF57-YP80M4，YQSA87RF57-YP90S4，YQSA87RF57-YPB63M4，YQSA87RF57-YPB71M4，YQSA87RF57-YPB80M4，YQSA87RF57-YPB90S4，YQSA87RF57-YPE63M4，YQSA87RF57-YPE71M4，YQSA87RF57-YPE80M4，YQSA87RF57-YPE90S4，YQSA87RF57-YSA63M4，YQSA87RF57-YSA71M4，YQSA87RF57-YSA80M4，YQSA87RF57-YSA90S4，YQSA87RF57-YVB63M4，YQSA87RF57-YVB71M4，YQSA87RF57-YVB80M4，YQSA87RF57-YVB90S4，YQSA87RF57-YVP63M4，YQSA87RF57-YVP71M4，YQSA87RF57-YVP80M4，YQSA87RF57-YVP90S4，ASA87R57-Y63M4，ASA87R57-Y71M4，ASA87R57-Y80M4，ASA87R57-Y90M4，ASA87RF57-Y0.12KW，ASA87RF57-Y0.18KW，ASA87RF57-Y0.25KW，ASA87RF57-Y0.37KW，ASA87RF57-Y0.55KW，ASA87RF57-Y0.75KW，ASA87RF57-Y1.1KW，ASA87RF57-Y1.5KW，ASA87RF57-Y63M4，ASA87RF57-Y71M4，ASA87RF57-Y80M4，ASA87RF57-Y90M4，ASA87RF57-YB63M4，ASA87RF57-YB71M4，ASA87RF57-YB80M4，ASA87RF57-YB90S4，ASA87RF57-YDP63M4，ASA87RF57-YDP71M4，ASA87RF57-YDP80M4，ASA87RF57-YDP90S4，ASA87RF57-YE63M4，ASA87RF57-YE71M4，ASA87RF57-YE80M4，ASA87RF57-YE90S4，ASA87RF57-YEJ63M4，ASA87RF57-YEJ71M4，ASA87RF57-YEJ80M4，ASA87RF57-YEJ90S4，ASA87RF57-YEJB63M4，ASA87RF57-YEJB71M4，ASA87RF57-YEJB80M4，ASA87RF57-YEJB90S4，ASA87RF57-YP63M4，ASA87RF57-YP71M4，ASA87RF57-YP80M4，ASA87RF57-YP90S4，ASA87RF57-YPB63M4，ASA87RF57-YPB71M4，ASA87RF57-YPB80M4，ASA87RF57-YPB90S4，ASA87RF57-YPE63M4，ASA87RF57-YPE71M4，ASA87RF57-YPE80M4，ASA87RF57-YPE90S4，ASA87RF57-YSA63M4，ASA87RF57-YSA71M4，ASA87RF57-YSA80M4，ASA87RF57-YSA90S4，ASA87RF57-YVB63M4，ASA87RF57-YVB71M4，ASA87RF57-YVB80M4，ASA87RF57-YVB90S4，ASA87RF57-YVP63M4，ASA87RF57-YVP71M4，ASA87RF57-YVP80M4，ASA87RF57-YVP90S4，SSA87R57-Y63M4，SSA87R57-Y71M4，SSA87R57-Y80M4，SSA87R57-Y90M4，SSA87RF57-Y0.12KW，SSA87RF57-Y0.18KW，SSA87RF57-Y0.25KW，SSA87RF57-Y0.37KW，SSA87RF57-Y0.55KW，SSA87RF57-Y0.75KW，SSA87RF57-Y1.1KW，SSA87RF57-Y1.5KW，SSA87RF57-Y63M4，SSA87RF57-Y71M4，SSA87RF57-Y80M4，SSA87RF57-Y90M4，SSA87RF57-YB63M4，SSA87RF57-YB71M4，SSA87RF57-YB80M4，SSA87RF57-YB90S4，SSA87RF57-YDP63M4，SSA87RF57-YDP71M4，SSA87RF57-YDP80M4，SSA87RF57-YDP90S4，SSA87RF57-YE63M4，SSA87RF57-YE71M4，SSA87RF57-YE80M4，SSA87RF57-YE90S4，SSA87RF57-YEJ63M4，SSA87RF57-YEJ71M4，SSA87RF57-YEJ80M4，SSA87RF57-YEJ90S4，SSA87RF57-YEJB63M4，SSA87RF57-YEJB71M4，SSA87RF57-YEJB80M4，SSA87RF57-YEJB90S4，SSA87RF57-YP63M4，SSA87RF57-YP71M4，SSA87RF57-YP80M4，SSA87RF57-YP90S4，SSA87RF57-YPB63M4，SSA87RF57-YPB71M4，SSA87RF57-YPB80M4，SSA87RF57-YPB90S4，SSA87RF57-YPE63M4，SSA87RF57-YPE71M4，SSA87RF57-YPE80M4，SSA87RF57-YPE90S4，SSA87RF57-YSA63M4，SSA87RF57-YSA71M4，SSA87RF57-YSA80M4，SSA87RF57-YSA90S4，SSA87RF57-YVB63M4，SSA87RF57-YVB71M4，SSA87RF57-YVB80M4，SSA87RF57-YVB90S4，SSA87RF57-YVP63M4，SSA87RF57-YVP71M4，SSA87RF57-YVP80M4，SSA87RF57-YVP90S4，XDSA87R57-Y63M4，XDSA87R57-Y71M4，XDSA87R57-Y80M4，XDSA87R57-Y90M4，XDSA87RF57-Y0.12KW，XDSA87RF57-Y0.18KW，XDSA87RF57-Y0.25KW，XDSA87RF57-Y0.37KW，XDSA87RF57-Y0.55KW，XDSA87RF57-Y0.75KW，XDSA87RF57-Y1.1KW，XDSA87RF57-Y1.5KW，XDSA87RF57-Y63M4，XDSA87RF57-Y71M4，XDSA87RF57-Y80M4，XDSA87RF57-Y90M4，XDSA87RF57-YB63M4，XDSA87RF57-YB71M4，XDSA87RF57-YB80M4，XDSA87RF57-YB90S4，XDSA87RF57-YDP63M4，XDSA87RF57-YDP71M4，XDSA87RF57-YDP80M4，XDSA87RF57-YDP90S4，XDSA87RF57-YE63M4，XDSA87RF57-YE71M4，XDSA87RF57-YE80M4，XDSA87RF57-YE90S4，XDSA87RF57-YEJ63M4，XDSA87RF57-YEJ71M4，XDSA87RF57-YEJ80M4，XDSA87RF57-YEJ90S4，XDSA87RF57-YEJB63M4，XDSA87RF57-YEJB71M4，XDSA87RF57-YEJB80M4，XDSA87RF57-YEJB90S4，XDSA87RF57-YP63M4，XDSA87RF57-YP71M4，XDSA87RF57-YP80M4，XDSA87RF57-YP90S4，XDSA87RF57-YPB63M4，XDSA87RF57-YPB71M4，XDSA87RF57-YPB80M4，XDSA87RF57-YPB90S4，XDSA87RF57-YPE63M4，XDSA87RF57-YPE71M4，XDSA87RF57-YPE80M4，XDSA87RF57-YPE90S4，XDSA87RF57-YSA63M4，XDSA87RF57-YSA71M4，XDSA87RF57-YSA80M4，XDSA87RF57-YSA90S4，XDSA87RF57-YVB63M4，XDSA87RF57-YVB71M4，XDSA87RF57-YVB80M4，XDSA87RF57-YVB90S4，XDSA87RF57-YVP63M4，XDSA87RF57-YVP71M4，XDSA87RF57-YVP80M4，XDSA87RF57-YVP90S4，WSA87R57-Y63M4，WSA87R57-Y71M4，WSA87R57-Y80M4，WSA87R57-Y90M4，WSA87RF57-Y0.12KW，WSA87RF57-Y0.18KW，WSA87RF57-Y0.25KW，WSA87RF57-Y0.37KW，WSA87RF57-Y0.55KW，WSA87RF57-Y0.75KW，WSA87RF57-Y1.1KW，WSA87RF57-Y1.5KW，WSA87RF57-Y63M4，WSA87RF57-Y71M4，WSA87RF57-Y80M4，WSA87RF57-Y90M4，WSA87RF57-YB63M4，WSA87RF57-YB71M4，WSA87RF57-YB80M4，WSA87RF57-YB90S4，WSA87RF57-YDP63M4，WSA87RF57-YDP71M4，WSA87RF57-YDP80M4，WSA87RF57-YDP90S4，WSA87RF57-YE63M4，WSA87RF57-YE71M4，WSA87RF57-YE80M4，WSA87RF57-YE90S4，WSA87RF57-YEJ63M4，WSA87RF57-YEJ71M4，WSA87RF57-YEJ80M4，WSA87RF57-YEJ90S4，WSA87RF57-YEJB63M4，WSA87RF57-YEJB71M4，WSA87RF57-YEJB80M4，WSA87RF57-YEJB90S4，WSA87RF57-YP63M4，WSA87RF57-YP71M4，WSA87RF57-YP80M4，WSA87RF57-YP90S4，WSA87RF57-YPB63M4，WSA87RF57-YPB71M4，WSA87RF57-YPB80M4，WSA87RF57-YPB90S4，WSA87RF57-YPE63M4，WSA87RF57-YPE71M4，WSA87RF57-YPE80M4，WSA87RF57-YPE90S4，WSA87RF57-YSA63M4，WSA87RF57-YSA71M4，WSA87RF57-YSA80M4，WSA87RF57-YSA90S4，WSA87RF57-YVB63M4，WSA87RF57-YVB71M4，WSA87RF57-YVB80M4，WSA87RF57-YVB90S4，WSA87RF57-YVP63M4，WSA87RF57-YVP71M4，WSA87RF57-YVP80M4，WSA87RF57-YVP90S4，JCSA87R57-Y63M4，JCSA87R57-Y71M4，JCSA87R57-Y80M4，JCSA87R57-Y90M4，JCSA87RF57-Y0.12KW，JCSA87RF57-Y0.18KW，JCSA87RF57-Y0.25KW，JCSA87RF57-Y0.37KW，JCSA87RF57-Y0.55KW，JCSA87RF57-Y0.75KW，JCSA87RF57-Y1.1KW，JCSA87RF57-Y1.5KW，JCSA87RF57-Y63M4，JCSA87RF57-Y71M4，JCSA87RF57-Y80M4，JCSA87RF57-Y90M4，JCSA87RF57-YB63M4，JCSA87RF57-YB71M4，JCSA87RF57-YB80M4，JCSA87RF57-YB90S4，JCSA87RF57-YDP63M4，JCSA87RF57-YDP71M4，JCSA87RF57-YDP80M4，JCSA87RF57-YDP90S4，JCSA87RF57-YE63M4，JCSA87RF57-YE71M4，JCSA87RF57-YE80M4，JCSA87RF57-YE90S4，JCSA87RF57-YEJ63M4，JCSA87RF57-YEJ71M4，JCSA87RF57-YEJ80M4，JCSA87RF57-YEJ90S4，JCSA87RF57-YEJB63M4，JCSA87RF57-YEJB71M4，JCSA87RF57-YEJB80M4，JCSA87RF57-YEJB90S4，JCSA87RF57-YP63M4，JCSA87RF57-YP71M4，JCSA87RF57-YP80M4，JCSA87RF57-YP90S4，JCSA87RF57-YPB63M4，JCSA87RF57-YPB71M4，JCSA87RF57-YPB80M4，JCSA87RF57-YPB90S4，JCSA87RF57-YPE63M4，JCSA87RF57-YPE71M4，JCSA87RF57-YPE80M4，JCSA87RF57-YPE90S4，JCSA87RF57-YSA63M4，JCSA87RF57-YSA71M4，JCSA87RF57-YSA80M4，JCSA87RF57-YSA90S4，JCSA87RF57-YVB63M4，JCSA87RF57-YVB71M4，JCSA87RF57-YVB80M4，JCSA87RF57-YVB90S4，JCSA87RF57-YVP63M4，JCSA87RF57-YVP71M4，JCSA87RF57-YVP80M4，JCSA87RF57-YVP90S4，NSA87R57-Y63M4，NSA87R57-Y71M4，NSA87R57-Y80M4，NSA87R57-Y90M4，NSA87RF57-Y0.12KW，NSA87RF57-Y0.18KW，NSA87RF57-Y0.25KW，NSA87RF57-Y0.37KW，NSA87RF57-Y0.55KW，NSA87RF57-Y0.75KW，NSA87RF57-Y1.1KW，NSA87RF57-Y1.5KW，NSA87RF57-Y63M4，NSA87RF57-Y71M4，NSA87RF57-Y80M4，NSA87RF57-Y90M4，NSA87RF57-YB63M4，NSA87RF57-YB71M4，NSA87RF57-YB80M4，NSA87RF57-YB90S4，NSA87RF57-YDP63M4，NSA87RF57-YDP71M4，NSA87RF57-YDP80M4，NSA87RF57-YDP90S4，NSA87RF57-YE63M4，NSA87RF57-YE71M4，NSA87RF57-YE80M4，NSA87RF57-YE90S4，NSA87RF57-YEJ63M4，NSA87RF57-YEJ71M4，NSA87RF57-YEJ80M4，NSA87RF57-YEJ90S4，NSA87RF57-YEJB63M4，NSA87RF57-YEJB71M4，NSA87RF57-YEJB80M4，NSA87RF57-YEJB90S4，NSA87RF57-YP63M4，NSA87RF57-YP71M4，NSA87RF57-YP80M4，NSA87RF57-YP90S4，NSA87RF57-YPB63M4，NSA87RF57-YPB71M4，NSA87RF57-YPB80M4，NSA87RF57-YPB90S4，NSA87RF57-YPE63M4，NSA87RF57-YPE71M4，NSA87RF57-YPE80M4，NSA87RF57-YPE90S4，NSA87RF57-YSA63M4，NSA87RF57-YSA71M4，NSA87RF57-YSA80M4，NSA87RF57-YSA90S4，NSA87RF57-YVB63M4，NSA87RF57-YVB71M4，NSA87RF57-YVB80M4，NSA87RF57-YVB90S4，NSA87RF57-YVP63M4，NSA87RF57-YVP71M4，NSA87RF57-YVP80M4，NSA87RF57-YVP90S4，SWA87RW57-Y63M4，SWA87RW57-Y71M4，SWA87RW57-Y80M4，SWA87RW57-Y90M4，SWA87RWF57-Y0.12KW，SWA87RWF57-Y0.18KW，SWA87RWF57-Y0.25KW，SWA87RWF57-Y0.37KW，SWA87RWF57-Y0.55KW，SWA87RWF57-Y0.75KW，SWA87RWF57-Y1.1KW，SWA87RWF57-Y1.5KW，SWA87RWF57-Y63M4，SWA87RWF57-Y71M4，SWA87RWF57-Y80M4，SWA87RWF57-Y90M4，SWA87RWF57-YB63M4，SWA87RWF57-YB71M4，SWA87RWF57-YB80M4，SWA87RWF57-YB90S4，SWA87RWF57-YDP63M4，SWA87RWF57-YDP71M4，SWA87RWF57-YDP80M4，SWA87RWF57-YDP90S4，SWA87RWF57-YE63M4，SWA87RWF57-YE71M4，SWA87RWF57-YE80M4，SWA87RWF57-YE90S4，SWA87RWF57-YEJ63M4，SWA87RWF57-YEJ71M4，SWA87RWF57-YEJ80M4，SWA87RWF57-YEJ90S4，SWA87RWF57-YEJB63M4，SWA87RWF57-YEJB71M4，SWA87RWF57-YEJB80M4，SWA87RWF57-YEJB90S4，SWA87RWF57-YP63M4，SWA87RWF57-YP71M4，SWA87RWF57-YP80M4，SWA87RWF57-YP90S4，SWA87RWF57-YPB63M4，SWA87RWF57-YPB71M4，SWA87RWF57-YPB80M4，SWA87RWF57-YPB90S4，SWA87RWF57-YPE63M4，SWA87RWF57-YPE71M4，SWA87RWF57-YPE80M4，SWA87RWF57-YPE90S4，SWA87RWF57-YSA63M4，SWA87RWF57-YSA71M4，SWA87RWF57-YSA80M4，SWA87RWF57-YSA90S4，SWA87RWF57-YVB63M4，SWA87RWF57-YVB71M4，SWA87RWF57-YVB80M4，SWA87RWF57-YVB90S4，SWA87RWF57-YVP63M4，SWA87RWF57-YVP71M4，SWA87RWF57-YVP80M4，SWA87RWF57-YVP90S4，SA89R59-Y63M4，SA89R59-Y71M4，SA89R59-Y80M4，SA89R59-Y90M4，SA89RF59-Y0.12KW，SA89RF59-Y0.18KW，SA89RF59-Y0.25KW，SA89RF59-Y0.37KW，SA89RF59-Y0.55KW，SA89RF59-Y0.75KW，SA89RF59-Y1.1KW，SA89RF59-Y1.5KW，SA89RF59-Y63M4，SA89RF59-Y71M4，SA89RF59-Y80M4，SA89RF59-Y90M4，SA89RF59-YB63M4，SA89RF59-YB71M4，SA89RF59-YB80M4，SA89RF59-YB90S4，SA89RF59-YDP63M4，SA89RF59-YDP71M4，SA89RF59-YDP80M4，SA89RF59-YDP90S4，SA89RF59-YE63M4，SA89RF59-YE71M4，SA89RF59-YE80M4，SA89RF59-YE90S4，SA89RF59-YEJ63M4，SA89RF59-YEJ71M4，SA89RF59-YEJ80M4，SA89RF59-YEJ90S4，SA89RF59-YEJB63M4，SA89RF59-YEJB71M4，SA89RF59-YEJB80M4，SA89RF59-YEJB90S4，SA89RF59-YP63M4，SA89RF59-YP71M4，SA89RF59-YP80M4，SA89RF59-YP90S4，SA89RF59-YPB63M4，SA89RF59-YPB71M4，SA89RF59-YPB80M4，SA89RF59-YPB90S4，SA89RF59-YPE63M4，SA89RF59-YPE71M4，SA89RF59-YPE80M4，SA89RF59-YPE90S4，SA89RF59-YSA63M4，SA89RF59-YSA71M4，SA89RF59-YSA80M4，SA89RF59-YSA90S4，SA89RF59-YVB63M4，SA89RF59-YVB71M4，SA89RF59-YVB80M4，SA89RF59-YVB90S4，SA89RF59-YVP63M4，SA89RF59-YVP71M4，SA89RF59-YVP80M4，SA89RF59-YVP90S4。
