德國BOSERL研發制造節能環保齒輪減速電機一體機,蝸輪蝸桿減速馬達,齒輪減速機帶電機19年創辦中國BOSERL齒輪減速電機生產廠家”伯仕傳動”

齒輪減速電機一體機_蝸輪蝸桿減速馬達-德國BOSERL齒輪減速機帶電機生產廠家

咨詢服務熱線:

13360667204

微信13360667204

蝸輪蝸桿減速機
網站首頁 > BOSERL減速機 > 斜齒輪蝸輪蝸桿減速機 > SA系列齒輪減速電機

SA69R39減速機詳細信息

prevnext

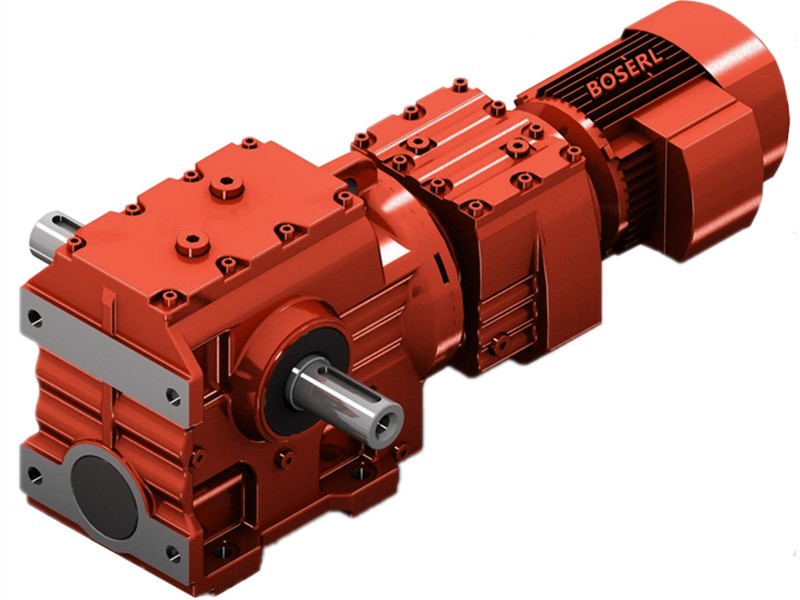

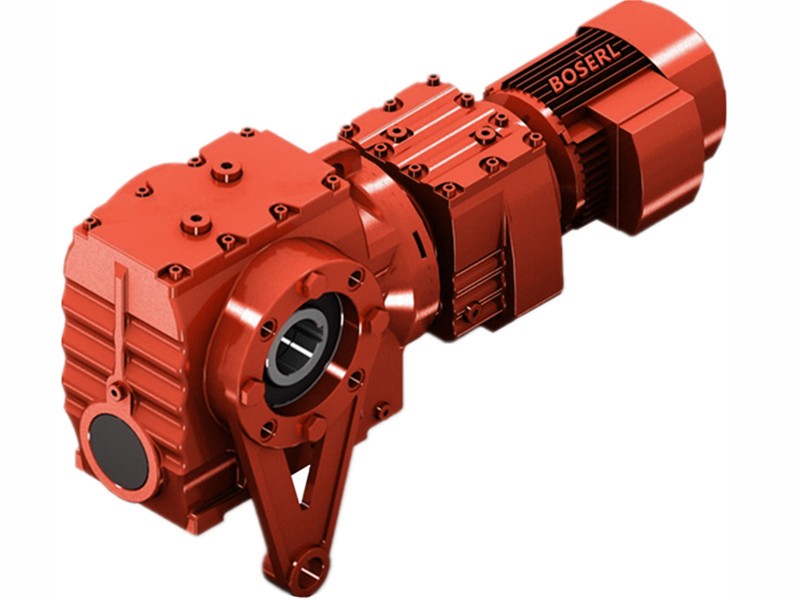

SA69R39減速機

訂購熱線:13360667204
  1. 詳細信息

SA69R39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA69R39減速機選型樣本。

SA69R39-Y0.37KW-4P-281-M4-90°

SA/R:系列代號

69/39:減速機規格代號

Y:電機

0.37KW:電機功率

4P:電機級數

281:減速機傳動比

M4:減速機安裝位置

90°:接線盒位置


SA69R39減速機電機檢查危險事項:

必須遵循危險區域用電氣設備連線和用法的相關標準。只有經嚴格訓練且熟悉相關標準的專業人員才允許操作這一類SA69R39減速機電機。

根據所述工作的特性,在對SA69R39減速機電機或所驅動設備進行操作前,先切斷電源并鎖定。工作過程中一定要確保無爆炸性氣體存在。齒輪減速電機

在運轉過程中進行保養、檢查時,請絕對不要觸及旋轉體(旋轉軸等)。否則有可能會被卷入,發生人身事故。

停止時檢查齒面狀況時,請切實進行驅動機、被動機的止轉。否則有可能會被卷入齒輪嚙合部分,發生人身事故。

施加規定值以上的負載也會降低電機和齒輪的壽命,導致SA69R39減速機電機損傷。(制動器部分的檢查、保養)

請勿在用手動釋放桿釋放制動器的狀態下進行運轉。否則有可能會導致墜落、失控事故。

進行正式運轉前,接通和切斷電源,確認制動器的動作。否則有可能會導致墜落、失控事故。

檢查、調整間隙后,請勿在拆下風扇罩的狀態下運轉電機。否則有可能會被卷入、受傷。自鎖減速機

用于升降時,請勿在起吊負載狀態下進行釋放制動器的操作。否則有可能會導致墜落事故。

SA69R39減速機電機震動解決方案:

電機不對中,重新對中;

支撐太弱,加固基座;

電機裝配螺釘松動,擰緊螺釘;

聯軸器不平衡,校正聯軸器平衡;

所驅動設備不平衡,校正所驅動設備平衡;

轉子不平衡量大,更換轉子;

軸承損壞,更換軸承;

電機缺相運行:電源接觸不良,修復觸點及電源線路;

電機缺相運行:線圈斷路,更換定子線圈;

軸向竄動太大,調節軸承或增加墊片;伺服電機連接減速機

線圈內有一個線苞嵌反,更換定子線圈。


SA69R39減速電機型號:

YQSA67R37-Y63M4,YQSA67R37-Y71M4,YQSA67R37-Y80M4,YQSA67RF37-Y0.12KW,YQSA67RF37-Y0.18KW,YQSA67RF37-Y0.25KW,YQSA67RF37-Y0.37KW,YQSA67RF37-Y0.55KW,YQSA67RF37-Y63M4,YQSA67RF37-Y71M4,YQSA67RF37-Y80M4,YQSA67RF37-YB63M4,YQSA67RF37-YB71M4,YQSA67RF37-YB80M4,YQSA67RF37-YDP63M4,YQSA67RF37-YDP71M4,YQSA67RF37-YDP80M4,YQSA67RF37-YE63M4,YQSA67RF37-YE71M4,YQSA67RF37-YE80M4,YQSA67RF37-YEJ63M4,YQSA67RF37-YEJ71M4,YQSA67RF37-YEJ80M4,YQSA67RF37-YEJB63M4,YQSA67RF37-YEJB71M4,YQSA67RF37-YEJB80M4,YQSA67RF37-YP63M4,YQSA67RF37-YP71M4,YQSA67RF37-YP80M4,YQSA67RF37-YPB63M4,YQSA67RF37-YPB71M4,YQSA67RF37-YPB80M4,YQSA67RF37-YPE63M4,YQSA67RF37-YPE71M4,YQSA67RF37-YPE80M4,YQSA67RF37-YSA63M4,YQSA67RF37-YSA71M4,YQSA67RF37-YSA80M4,YQSA67RF37-YVB63M4,YQSA67RF37-YVB71M4,YQSA67RF37-YVB80M4,YQSA67RF37-YVP63M4,YQSA67RF37-YVP71M4,YQSA67RF37-YVP80M4,ASA67R37-Y63M4,ASA67R37-Y71M4,ASA67R37-Y80M4,ASA67RF37-Y0.12KW,ASA67RF37-Y0.18KW,ASA67RF37-Y0.25KW,ASA67RF37-Y0.37KW,ASA67RF37-Y0.55KW,ASA67RF37-Y63M4,ASA67RF37-Y71M4,ASA67RF37-Y80M4,ASA67RF37-YB63M4,ASA67RF37-YB71M4,ASA67RF37-YB80M4,ASA67RF37-YDP63M4,ASA67RF37-YDP71M4,ASA67RF37-YDP80M4,ASA67RF37-YE63M4,ASA67RF37-YE71M4,ASA67RF37-YE80M4,ASA67RF37-YEJ63M4,ASA67RF37-YEJ71M4,ASA67RF37-YEJ80M4,ASA67RF37-YEJB63M4,ASA67RF37-YEJB71M4,ASA67RF37-YEJB80M4,ASA67RF37-YP63M4,ASA67RF37-YP71M4,ASA67RF37-YP80M4,ASA67RF37-YPB63M4,ASA67RF37-YPB71M4,ASA67RF37-YPB80M4,ASA67RF37-YPE63M4,ASA67RF37-YPE71M4,ASA67RF37-YPE80M4,ASA67RF37-YSA63M4,ASA67RF37-YSA71M4,ASA67RF37-YSA80M4,ASA67RF37-YVB63M4,ASA67RF37-YVB71M4,ASA67RF37-YVB80M4,ASA67RF37-YVP63M4,ASA67RF37-YVP71M4,ASA67RF37-YVP80M4,SSA67R37-Y63M4,SSA67R37-Y71M4,SSA67R37-Y80M4,SSA67RF37-Y0.12KW,SSA67RF37-Y0.18KW,SSA67RF37-Y0.25KW,SSA67RF37-Y0.37KW,SSA67RF37-Y0.55KW,SSA67RF37-Y63M4,SSA67RF37-Y71M4,SSA67RF37-Y80M4,SSA67RF37-YB63M4,SSA67RF37-YB71M4,SSA67RF37-YB80M4,SSA67RF37-YDP63M4,SSA67RF37-YDP71M4,SSA67RF37-YDP80M4,SSA67RF37-YE63M4,SSA67RF37-YE71M4,SSA67RF37-YE80M4,SSA67RF37-YEJ63M4,SSA67RF37-YEJ71M4,SSA67RF37-YEJ80M4,SSA67RF37-YEJB63M4,SSA67RF37-YEJB71M4,SSA67RF37-YEJB80M4,SSA67RF37-YP63M4,SSA67RF37-YP71M4,SSA67RF37-YP80M4,SSA67RF37-YPB63M4,SSA67RF37-YPB71M4,SSA67RF37-YPB80M4,SSA67RF37-YPE63M4,SSA67RF37-YPE71M4,SSA67RF37-YPE80M4,SSA67RF37-YSA63M4,SSA67RF37-YSA71M4,SSA67RF37-YSA80M4,SSA67RF37-YVB63M4,SSA67RF37-YVB71M4,SSA67RF37-YVB80M4,SSA67RF37-YVP63M4,SSA67RF37-YVP71M4,SSA67RF37-YVP80M4,XDSA67R37-Y63M4,XDSA67R37-Y71M4,XDSA67R37-Y80M4,XDSA67RF37-Y0.12KW,XDSA67RF37-Y0.18KW,XDSA67RF37-Y0.25KW,XDSA67RF37-Y0.37KW,XDSA67RF37-Y0.55KW,XDSA67RF37-Y63M4,XDSA67RF37-Y71M4,XDSA67RF37-Y80M4,XDSA67RF37-YB63M4,XDSA67RF37-YB71M4,XDSA67RF37-YB80M4,XDSA67RF37-YDP63M4,XDSA67RF37-YDP71M4,XDSA67RF37-YDP80M4,XDSA67RF37-YE63M4,XDSA67RF37-YE71M4,XDSA67RF37-YE80M4,XDSA67RF37-YEJ63M4,XDSA67RF37-YEJ71M4,XDSA67RF37-YEJ80M4,XDSA67RF37-YEJB63M4,XDSA67RF37-YEJB71M4,XDSA67RF37-YEJB80M4,XDSA67RF37-YP63M4,XDSA67RF37-YP71M4,XDSA67RF37-YP80M4,XDSA67RF37-YPB63M4,XDSA67RF37-YPB71M4,XDSA67RF37-YPB80M4,XDSA67RF37-YPE63M4,XDSA67RF37-YPE71M4,XDSA67RF37-YPE80M4,XDSA67RF37-YSA63M4,XDSA67RF37-YSA71M4,XDSA67RF37-YSA80M4,XDSA67RF37-YVB63M4,XDSA67RF37-YVB71M4,XDSA67RF37-YVB80M4,XDSA67RF37-YVP63M4,XDSA67RF37-YVP71M4,XDSA67RF37-YVP80M4,WSA67R37-Y63M4,WSA67R37-Y71M4,WSA67R37-Y80M4,WSA67RF37-Y0.12KW,WSA67RF37-Y0.18KW,WSA67RF37-Y0.25KW,WSA67RF37-Y0.37KW,WSA67RF37-Y0.55KW,WSA67RF37-Y63M4,WSA67RF37-Y71M4,WSA67RF37-Y80M4,WSA67RF37-YB63M4,WSA67RF37-YB71M4,WSA67RF37-YB80M4,WSA67RF37-YDP63M4,WSA67RF37-YDP71M4,WSA67RF37-YDP80M4,WSA67RF37-YE63M4,WSA67RF37-YE71M4,WSA67RF37-YE80M4,WSA67RF37-YEJ63M4,WSA67RF37-YEJ71M4,WSA67RF37-YEJ80M4,WSA67RF37-YEJB63M4,WSA67RF37-YEJB71M4,WSA67RF37-YEJB80M4,WSA67RF37-YP63M4,WSA67RF37-YP71M4,WSA67RF37-YP80M4,WSA67RF37-YPB63M4,WSA67RF37-YPB71M4,WSA67RF37-YPB80M4,WSA67RF37-YPE63M4,WSA67RF37-YPE71M4,WSA67RF37-YPE80M4,WSA67RF37-YSA63M4,WSA67RF37-YSA71M4,WSA67RF37-YSA80M4,WSA67RF37-YVB63M4,WSA67RF37-YVB71M4,WSA67RF37-YVB80M4,WSA67RF37-YVP63M4,WSA67RF37-YVP71M4,WSA67RF37-YVP80M4,JCSA67R37-Y63M4,JCSA67R37-Y71M4,JCSA67R37-Y80M4,JCSA67RF37-Y0.12KW,JCSA67RF37-Y0.18KW,JCSA67RF37-Y0.25KW,JCSA67RF37-Y0.37KW,JCSA67RF37-Y0.55KW,JCSA67RF37-Y63M4,JCSA67RF37-Y71M4,JCSA67RF37-Y80M4,JCSA67RF37-YB63M4,JCSA67RF37-YB71M4,JCSA67RF37-YB80M4,JCSA67RF37-YDP63M4,JCSA67RF37-YDP71M4,JCSA67RF37-YDP80M4,JCSA67RF37-YE63M4,JCSA67RF37-YE71M4,JCSA67RF37-YE80M4,JCSA67RF37-YEJ63M4,JCSA67RF37-YEJ71M4,JCSA67RF37-YEJ80M4,JCSA67RF37-YEJB63M4,JCSA67RF37-YEJB71M4,JCSA67RF37-YEJB80M4,JCSA67RF37-YP63M4,JCSA67RF37-YP71M4,JCSA67RF37-YP80M4,JCSA67RF37-YPB63M4,JCSA67RF37-YPB71M4,JCSA67RF37-YPB80M4,JCSA67RF37-YPE63M4,JCSA67RF37-YPE71M4,JCSA67RF37-YPE80M4,JCSA67RF37-YSA63M4,JCSA67RF37-YSA71M4,JCSA67RF37-YSA80M4,JCSA67RF37-YVB63M4,JCSA67RF37-YVB71M4,JCSA67RF37-YVB80M4,JCSA67RF37-YVP63M4,JCSA67RF37-YVP71M4,JCSA67RF37-YVP80M4,NSA67R37-Y63M4,NSA67R37-Y71M4,NSA67R37-Y80M4,NSA67RF37-Y0.12KW,NSA67RF37-Y0.18KW,NSA67RF37-Y0.25KW,NSA67RF37-Y0.37KW,NSA67RF37-Y0.55KW,NSA67RF37-Y63M4,NSA67RF37-Y71M4,NSA67RF37-Y80M4,NSA67RF37-YB63M4,NSA67RF37-YB71M4,NSA67RF37-YB80M4,NSA67RF37-YDP63M4,NSA67RF37-YDP71M4,NSA67RF37-YDP80M4,NSA67RF37-YE63M4,NSA67RF37-YE71M4,NSA67RF37-YE80M4,NSA67RF37-YEJ63M4,NSA67RF37-YEJ71M4,NSA67RF37-YEJ80M4,NSA67RF37-YEJB63M4,NSA67RF37-YEJB71M4,NSA67RF37-YEJB80M4,NSA67RF37-YP63M4,NSA67RF37-YP71M4,NSA67RF37-YP80M4,NSA67RF37-YPB63M4,NSA67RF37-YPB71M4,NSA67RF37-YPB80M4,NSA67RF37-YPE63M4,NSA67RF37-YPE71M4,NSA67RF37-YPE80M4,NSA67RF37-YSA63M4,NSA67RF37-YSA71M4,NSA67RF37-YSA80M4,NSA67RF37-YVB63M4,NSA67RF37-YVB71M4,NSA67RF37-YVB80M4,NSA67RF37-YVP63M4,NSA67RF37-YVP71M4,NSA67RF37-YVP80M4,SWA67RW37-Y63M4,SWA67RW37-Y71M4,SWA67RW37-Y80M4,SWA67RWF37-Y0.12KW,SWA67RWF37-Y0.18KW,SWA67RWF37-Y0.25KW,SWA67RWF37-Y0.37KW,SWA67RWF37-Y0.55KW,SWA67RWF37-Y63M4,SWA67RWF37-Y71M4,SWA67RWF37-Y80M4,SWA67RWF37-YB63M4,SWA67RWF37-YB71M4,SWA67RWF37-YB80M4,SWA67RWF37-YDP63M4,SWA67RWF37-YDP71M4,SWA67RWF37-YDP80M4,SWA67RWF37-YE63M4,SWA67RWF37-YE71M4,SWA67RWF37-YE80M4,SWA67RWF37-YEJ63M4,SWA67RWF37-YEJ71M4,SWA67RWF37-YEJ80M4,SWA67RWF37-YEJB63M4,SWA67RWF37-YEJB71M4,SWA67RWF37-YEJB80M4,SWA67RWF37-YP63M4,SWA67RWF37-YP71M4,SWA67RWF37-YP80M4,SWA67RWF37-YPB63M4,SWA67RWF37-YPB71M4,SWA67RWF37-YPB80M4,SWA67RWF37-YPE63M4,SWA67RWF37-YPE71M4,SWA67RWF37-YPE80M4,SWA67RWF37-YSA63M4,SWA67RWF37-YSA71M4,SWA67RWF37-YSA80M4,SWA67RWF37-YVB63M4,SWA67RWF37-YVB71M4,SWA67RWF37-YVB80M4,SWA67RWF37-YVP63M4,SWA67RWF37-YVP71M4,SWA67RWF37-YVP80M4,SA69R39-Y63M4,SA69R39-Y71M4,SA69R39-Y80M4,SA69RF39-Y0.12KW,SA69RF39-Y0.18KW,SA69RF39-Y0.25KW,SA69RF39-Y0.39KW,SA69RF39-Y0.55KW,SA69RF39-Y63M4,SA69RF39-Y71M4,SA69RF39-Y80M4,SA69RF39-YB63M4,SA69RF39-YB71M4,SA69RF39-YB80M4,SA69RF39-YDP63M4,SA69RF39-YDP71M4,SA69RF39-YDP80M4,SA69RF39-YE63M4,SA69RF39-YE71M4,SA69RF39-YE80M4,SA69RF39-YEJ63M4,SA69RF39-YEJ71M4,SA69RF39-YEJ80M4,SA69RF39-YEJB63M4,SA69RF39-YEJB71M4,SA69RF39-YEJB80M4,SA69RF39-YP63M4,SA69RF39-YP71M4,SA69RF39-YP80M4,SA69RF39-YPB63M4,SA69RF39-YPB71M4,SA69RF39-YPB80M4,SA69RF39-YPE63M4,SA69RF39-YPE71M4,SA69RF39-YPE80M4,SA69RF39-YSA63M4,SA69RF39-YSA71M4,SA69RF39-YSA80M4,SA69RF39-YVB63M4,SA69RF39-YVB71M4,SA69RF39-YVB80M4,SA69RF39-YVP63M4,SA69RF39-YVP71M4,SA69RF39-YVP80M4。

SA69R39減速電機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦型號:S69減速機

關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器

SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機

SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SA69R39渦輪渦桿減速機參數 NSA67RF37減速電機3D圖紙 JCSA67R37減速機生產廠家

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SA69R39減速機三維圖紙下載3D 點擊下載
SA69R39減速機選型樣本 點擊下載
