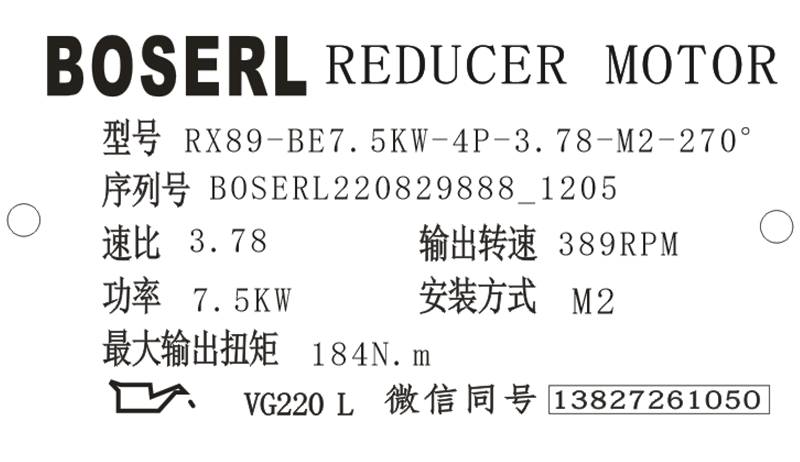

RX89減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX89減速機選型樣本。
RX89-BE7.5KW-4P-3.78-M2-270°
RX:系列代號
89:減速機規格代號
BE:電機
7.5KW:電機功率
4P:電機級數
3.78:減速機傳動比
M2:減速機安裝位置
270°:接線盒位置
RX89減速機聯軸器的安裝:
RX89減速機輸入和輸出部件,如皮帶輪、聯軸器等在運行過程中會發生飛速運轉,可能有夾傷和擠壓危險,輸入和輸出部件采用防護罩蓋板!齒輪減速電機
RX89減速機聯軸器裝配時要根據聯軸器制造商的規定進行下列校正:最大以及a最小間距;b軸向偏差;c角偏差;若事先對輸出部件涂抹潤滑油或進行短時間加熱(到80至100°C),則可便于裝配。
采用裝配夾具進行安裝RX89減速機聯軸器:下圖為采用裝配夾具將聯軸器或輪轂安裝RX89減速機或電機的軸端上的操作示意。若能夠順利擰緊螺栓,則可以在必要情況下無須安裝裝配夾具上的推力軸承。
RX89減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將RX89減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。電機減速機一體機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。臥式減速機
RX89減速機型號:
XDRX87-AM100M4,XDRX87-AM112M4,XDRX87-AM132M4,XDRX87-AM160M4,XDRX87-AM180M4,XDRX87-AM200M4,XDRX87-AM71M4,XDRX87-AM80M4,XDRX87-AM90M4,XDRX87-Y0.37KW,XDRX87-Y0.55KW,XDRX87-Y0.75KW,XDRX87-Y1.1KW,XDRX87-Y1.5KW,XDRX87-Y100M4,XDRX87-Y112M4,XDRX87-Y11KW,XDRX87-Y132M4,XDRX87-Y15KW,XDRX87-Y160M4,XDRX87-Y18.5KW,XDRX87-Y180M4,XDRX87-Y2.2KW,XDRX87-Y200M4,XDRX87-Y22KW,XDRX87-Y30KW,XDRX87-Y3KW,XDRX87-Y4KW,XDRX87-Y5.5KW,XDRX87-Y7.5KW,XDRX87-Y71M4,XDRX87-Y80M4,XDRX87-Y90M4,XDRX87-YB100M4,XDRX87-YB112M4,XDRX87-YB132M4,XDRX87-YB160M4,XDRX87-YB180M4,XDRX87-YB200M4,XDRX87-YB71M4,XDRX87-YB80M4,XDRX87-YB90M4,XDRX87-YDP100M4,XDRX87-YDP112M4,XDRX87-YDP132M4,XDRX87-YDP160M4,XDRX87-YDP180M4,XDRX87-YDP200M4,XDRX87-YDP71M4,XDRX87-YDP80M4,XDRX87-YDP90M4,XDRX87-YE100M4,XDRX87-YE112M4,XDRX87-YE132M4,XDRX87-YE160M4,XDRX87-YE180M4,XDRX87-YE200M4,XDRX87-YE71M4,XDRX87-YE80M4,XDRX87-YE90M4,XDRX87-YEJ100M4,XDRX87-YEJ112M4,XDRX87-YEJ132M4,XDRX87-YEJ160M4,XDRX87-YEJ180M4,XDRX87-YEJ200M4,XDRX87-YEJ71M4,XDRX87-YEJ80M4,XDRX87-YEJ90M4,XDRX87-YEJB100M4,XDRX87-YEJB112M4,XDRX87-YEJB132M4,XDRX87-YEJB160M4,XDRX87-YEJB180M4,XDRX87-YEJB200M4,XDRX87-YEJB71M4,XDRX87-YEJB80M4,XDRX87-YEJB90M4,XDRX87-YP100M4,XDRX87-YP112M4,XDRX87-YP132M4,XDRX87-YP160M4,XDRX87-YP180M4,XDRX87-YP200M4,XDRX87-YP71M4,XDRX87-YP80M4,XDRX87-YP90M4,XDRX87-YPB100M4,XDRX87-YPB112M4,XDRX87-YPB132M4,XDRX87-YPB160M4,XDRX87-YPB180M4,XDRX87-YPB200M4,XDRX87-YPB71M4,XDRX87-YPB80M4,XDRX87-YPB90M4,XDRX87-YPE100M4,XDRX87-YPE112M4,XDRX87-YPE132M4,XDRX87-YPE160M4,XDRX87-YPE180M4,XDRX87-YPE200M4,XDRX87-YPE71M4,XDRX87-YPE80M4,XDRX87-YPE90M4,XDRX87-YS100M4,XDRX87-YS112M4,XDRX87-YS132M4,XDRX87-YS160M4,XDRX87-YS180M4,XDRX87-YS200M4,XDRX87-YS71M4,XDRX87-YS80M4,XDRX87-YS90M4,XDRX87-YVB100M4,XDRX87-YVB112M4,XDRX87-YVB132M4,XDRX87-YVB160M4,XDRX87-YVB180M4,XDRX87-YVB200M4,XDRX87-YVB71M4,XDRX87-YVB80M4,XDRX87-YVB90M4,XDRX87-YVP100M4,XDRX87-YVP112M4,XDRX87-YVP132M4,XDRX87-YVP160M4,XDRX87-YVP180M4,XDRX87-YVP200M4,XDRX87-YVP71M4,XDRX87-YVP80M4,XDRX87-YVP90M4,XDRX87-YVPEJ100M4,XDRX87-YVPEJ112M4,XDRX87-YVPEJ132M4,XDRX87-YVPEJ160M4,XDRX87-YVPEJ180M4,XDRX87-YVPEJ200M4,XDRX87-YVPEJ71M4,XDRX87-YVPEJ80M4,XDRX87-YVPEJ90M4,RX89-AM100M4,RX89-AM112M4,RX89-AM132M4,RX89-AM160M4,RX89-AM180M4,RX89-AM200M4,RX89-AM71M4,RX89-AM80M4,RX89-AM90M4,RX89-Y0.37KW,RX89-Y0.55KW,RX89-Y0.75KW,RX89-Y1.1KW,RX89-Y1.5KW,RX89-Y100M4,RX89-Y112M4,RX89-Y11KW,RX89-Y132M4,RX89-Y15KW,RX89-Y160M4,RX89-Y18.5KW,RX89-Y180M4,RX89-Y2.2KW,RX89-Y200M4,RX89-Y22KW,RX89-Y30KW,RX89-Y3KW,RX89-Y4KW,RX89-Y5.5KW,RX89-Y7.5KW,RX89-Y71M4,RX89-Y80M4,RX89-Y90M4,RX89-YB100M4,RX89-YB112M4,RX89-YB132M4,RX89-YB160M4,RX89-YB180M4,RX89-YB200M4,RX89-YB71M4,RX89-YB80M4,RX89-YB90M4,RX89-YDP100M4,RX89-YDP112M4,RX89-YDP132M4,RX89-YDP160M4,RX89-YDP180M4,RX89-YDP200M4,RX89-YDP71M4,RX89-YDP80M4,RX89-YDP90M4,RX89-YE100M4,RX89-YE112M4,RX89-YE132M4,RX89-YE160M4,RX89-YE180M4,RX89-YE200M4,RX89-YE71M4,RX89-YE80M4,RX89-YE90M4,RX89-YEJ100M4,RX89-YEJ112M4,RX89-YEJ132M4,RX89-YEJ160M4,RX89-YEJ180M4,RX89-YEJ200M4,RX89-YEJ71M4,RX89-YEJ80M4,RX89-YEJ90M4,RX89-YEJB100M4,RX89-YEJB112M4,RX89-YEJB132M4,RX89-YEJB160M4,RX89-YEJB180M4,RX89-YEJB200M4,RX89-YEJB71M4,RX89-YEJB80M4,RX89-YEJB90M4,RX89-YP100M4,RX89-YP112M4,RX89-YP132M4,RX89-YP160M4,RX89-YP180M4,RX89-YP200M4,RX89-YP71M4,RX89-YP80M4,RX89-YP90M4,RX89-YPB100M4,RX89-YPB112M4,RX89-YPB132M4,RX89-YPB160M4,RX89-YPB180M4,RX89-YPB200M4,RX89-YPB71M4,RX89-YPB80M4,RX89-YPB90M4,RX89-YPE100M4,RX89-YPE112M4,RX89-YPE132M4,RX89-YPE160M4,RX89-YPE180M4,RX89-YPE200M4,RX89-YPE71M4,RX89-YPE80M4,RX89-YPE90M4,RX89-YS100M4,RX89-YS112M4,RX89-YS132M4,RX89-YS160M4,RX89-YS180M4,RX89-YS200M4,RX89-YS71M4,RX89-YS80M4,RX89-YS90M4,RX89-YVB100M4,RX89-YVB112M4,RX89-YVB132M4,RX89-YVB160M4,RX89-YVB180M4,RX89-YVB200M4,RX89-YVB71M4,RX89-YVB80M4,RX89-YVB90M4,RX89-YVP100M4,RX89-YVP112M4,RX89-YVP132M4,RX89-YVP160M4,RX89-YVP180M4,RX89-YVP200M4,RX89-YVP71M4,RX89-YVP80M4,RX89-YVP90M4,RX89-YVPEJ100M4,RX89-YVPEJ112M4,RX89-YVPEJ132M4,RX89-YVPEJ160M4,RX89-YVPEJ180M4,RX89-YVPEJ200M4,RX89-YVPEJ71M4,RX89-YVPEJ80M4,RX89-YVPEJ90M4,RWX87-AM100M4,RWX87-AM112M4,RWX87-AM132M4,RWX87-AM160M4,RWX87-AM180M4,RWX87-AM200M4,RWX87-AM71M4,RWX87-AM80M4,RWX87-AM90M4,RWX87-Y0.37KW,RWX87-Y0.55KW,RWX87-Y0.75KW,RWX87-Y1.1KW,RWX87-Y1.5KW,RWX87-Y100M4,RWX87-Y112M4,RWX87-Y11KW,RWX87-Y132M4,RWX87-Y15KW,RWX87-Y160M4,RWX87-Y18.5KW,RWX87-Y180M4,RWX87-Y2.2KW,RWX87-Y200M4,RWX87-Y22KW,RWX87-Y30KW,RWX87-Y3KW,RWX87-Y4KW,RWX87-Y5.5KW,RWX87-Y7.5KW,RWX87-Y71M4,RWX87-Y80M4,RWX87-Y90M4,RWX87-YB100M4,RWX87-YB112M4,RWX87-YB132M4,RWX87-YB160M4,RWX87-YB180M4,RWX87-YB200M4,RWX87-YB71M4,RWX87-YB80M4,RWX87-YB90M4,RWX87-YDP100M4,RWX87-YDP112M4,RWX87-YDP132M4,RWX87-YDP160M4,RWX87-YDP180M4,RWX87-YDP200M4,RWX87-YDP71M4,RWX87-YDP80M4,RWX87-YDP90M4,RWX87-YE100M4,RWX87-YE112M4,RWX87-YE132M4,RWX87-YE160M4,RWX87-YE180M4,RWX87-YE200M4,RWX87-YE71M4,RWX87-YE80M4,RWX87-YE90M4,RWX87-YEJ100M4,RWX87-YEJ112M4,RWX87-YEJ132M4,RWX87-YEJ160M4,RWX87-YEJ180M4,RWX87-YEJ200M4,RWX87-YEJ71M4,RWX87-YEJ80M4,RWX87-YEJ90M4,RWX87-YEJB100M4,RWX87-YEJB112M4,RWX87-YEJB132M4,RWX87-YEJB160M4,RWX87-YEJB180M4,RWX87-YEJB200M4,RWX87-YEJB71M4,RWX87-YEJB80M4,RWX87-YEJB90M4,RWX87-YP100M4,RWX87-YP112M4,RWX87-YP132M4,RWX87-YP160M4,RWX87-YP180M4,RWX87-YP200M4,RWX87-YP71M4,RWX87-YP80M4,RWX87-YP90M4,RWX87-YPB100M4,RWX87-YPB112M4,RWX87-YPB132M4,RWX87-YPB160M4,RWX87-YPB180M4,RWX87-YPB200M4,RWX87-YPB71M4,RWX87-YPB80M4,RWX87-YPB90M4,RWX87-YPE100M4,RWX87-YPE112M4,RWX87-YPE132M4,RWX87-YPE160M4,RWX87-YPE180M4,RWX87-YPE200M4,RWX87-YPE71M4,RWX87-YPE80M4,RWX87-YPE90M4,RWX87-YS100M4,RWX87-YS112M4,RWX87-YS132M4,RWX87-YS160M4,RWX87-YS180M4,RWX87-YS200M4,RWX87-YS71M4,RWX87-YS80M4,RWX87-YS90M4,RWX87-YVB100M4,RWX87-YVB112M4,RWX87-YVB132M4,RWX87-YVB160M4,RWX87-YVB180M4,RWX87-YVB200M4,RWX87-YVB71M4,RWX87-YVB80M4,RWX87-YVB90M4,RWX87-YVP100M4,RWX87-YVP112M4,RWX87-YVP132M4,RWX87-YVP160M4,RWX87-YVP180M4,RWX87-YVP200M4,RWX87-YVP71M4,RWX87-YVP80M4,RWX87-YVP90M4,RWX87-YVPEJ100M4,RWX87-YVPEJ112M4,RWX87-YVPEJ132M4,RWX87-YVPEJ160M4,RWX87-YVPEJ180M4,RWX87-YVPEJ200M4,RWX87-YVPEJ71M4,RWX87-YVPEJ80M4,RWX87-YVPEJ90M4,YQRX87-AM100M4,YQRX87-AM112M4,YQRX87-AM132M4,YQRX87-AM160M4,YQRX87-AM180M4,YQRX87-AM200M4,YQRX87-AM71M4,YQRX87-AM80M4,YQRX87-AM90M4,YQRX87-Y0.37KW,YQRX87-Y0.55KW,YQRX87-Y0.75KW,YQRX87-Y1.1KW,YQRX87-Y1.5KW,YQRX87-Y100M4,YQRX87-Y112M4,YQRX87-Y11KW,YQRX87-Y132M4,YQRX87-Y15KW,YQRX87-Y160M4,YQRX87-Y18.5KW,YQRX87-Y180M4,YQRX87-Y2.2KW,YQRX87-Y200M4,YQRX87-Y22KW,YQRX87-Y30KW,YQRX87-Y3KW,YQRX87-Y4KW,YQRX87-Y5.5KW,YQRX87-Y7.5KW,YQRX87-Y71M4,YQRX87-Y80M4,YQRX87-Y90M4,YQRX87-YB100M4,YQRX87-YB112M4,YQRX87-YB132M4,YQRX87-YB160M4,YQRX87-YB180M4,YQRX87-YB200M4,YQRX87-YB71M4,YQRX87-YB80M4,YQRX87-YB90M4,YQRX87-YDP100M4,YQRX87-YDP112M4,YQRX87-YDP132M4,YQRX87-YDP160M4,YQRX87-YDP180M4,YQRX87-YDP200M4,YQRX87-YDP71M4,YQRX87-YDP80M4,YQRX87-YDP90M4,YQRX87-YE100M4,YQRX87-YE112M4,YQRX87-YE132M4,YQRX87-YE160M4,YQRX87-YE180M4,YQRX87-YE200M4,YQRX87-YE71M4,YQRX87-YE80M4,YQRX87-YE90M4,YQRX87-YEJ100M4,YQRX87-YEJ112M4,YQRX87-YEJ132M4,YQRX87-YEJ160M4,YQRX87-YEJ180M4,YQRX87-YEJ200M4,YQRX87-YEJ71M4,YQRX87-YEJ80M4,YQRX87-YEJ90M4,YQRX87-YEJB100M4,YQRX87-YEJB112M4,YQRX87-YEJB132M4,YQRX87-YEJB160M4,YQRX87-YEJB180M4,YQRX87-YEJB200M4,YQRX87-YEJB71M4,YQRX87-YEJB80M4,YQRX87-YEJB90M4,YQRX87-YP100M4,YQRX87-YP112M4,YQRX87-YP132M4,YQRX87-YP160M4,YQRX87-YP180M4,YQRX87-YP200M4,YQRX87-YP71M4,YQRX87-YP80M4,YQRX87-YP90M4,YQRX87-YPB100M4,YQRX87-YPB112M4,YQRX87-YPB132M4,YQRX87-YPB160M4,YQRX87-YPB180M4,YQRX87-YPB200M4,YQRX87-YPB71M4,YQRX87-YPB80M4,YQRX87-YPB90M4,YQRX87-YPE100M4,YQRX87-YPE112M4,YQRX87-YPE132M4,YQRX87-YPE160M4,YQRX87-YPE180M4,YQRX87-YPE200M4,YQRX87-YPE71M4,YQRX87-YPE80M4,YQRX87-YPE90M4,YQRX87-YS100M4,YQRX87-YS112M4,YQRX87-YS132M4,YQRX87-YS160M4,YQRX87-YS180M4,YQRX87-YS200M4,YQRX87-YS71M4,YQRX87-YS80M4,YQRX87-YS90M4,YQRX87-YVB100M4,YQRX87-YVB112M4,YQRX87-YVB132M4,YQRX87-YVB160M4,YQRX87-YVB180M4,YQRX87-YVB200M4,YQRX87-YVB71M4,YQRX87-YVB80M4,YQRX87-YVB90M4,YQRX87-YVP100M4,YQRX87-YVP112M4,YQRX87-YVP132M4,YQRX87-YVP160M4,YQRX87-YVP180M4,YQRX87-YVP200M4,YQRX87-YVP71M4,YQRX87-YVP80M4,YQRX87-YVP90M4,YQRX87-YVPEJ100M4,YQRX87-YVPEJ112M4,YQRX87-YVPEJ132M4,YQRX87-YVPEJ160M4,YQRX87-YVPEJ180M4,YQRX87-YVPEJ200M4,YQRX87-YVPEJ71M4,YQRX87-YVPEJ80M4,YQRX87-YVPEJ90M4,JCRX87-AM100M4,JCRX87-AM112M4,JCRX87-AM132M4,JCRX87-AM160M4,JCRX87-AM180M4,JCRX87-AM200M4,JCRX87-AM71M4,JCRX87-AM80M4,JCRX87-AM90M4,JCRX87-Y0.37KW,JCRX87-Y0.55KW,JCRX87-Y0.75KW,JCRX87-Y1.1KW,JCRX87-Y1.5KW,JCRX87-Y100M4,JCRX87-Y112M4,JCRX87-Y11KW,JCRX87-Y132M4,JCRX87-Y15KW,JCRX87-Y160M4,JCRX87-Y18.5KW,JCRX87-Y180M4,JCRX87-Y2.2KW,JCRX87-Y200M4,JCRX87-Y22KW,JCRX87-Y30KW,JCRX87-Y3KW,JCRX87-Y4KW,JCRX87-Y5.5KW,JCRX87-Y7.5KW,JCRX87-Y71M4,JCRX87-Y80M4,JCRX87-Y90M4,JCRX87-YB100M4,JCRX87-YB112M4,JCRX87-YB132M4,JCRX87-YB160M4,JCRX87-YB180M4,JCRX87-YB200M4,JCRX87-YB71M4,JCRX87-YB80M4,JCRX87-YB90M4,JCRX87-YDP100M4,JCRX87-YDP112M4,JCRX87-YDP132M4,JCRX87-YDP160M4,JCRX87-YDP180M4,JCRX87-YDP200M4,JCRX87-YDP71M4,JCRX87-YDP80M4,JCRX87-YDP90M4,JCRX87-YE100M4,JCRX87-YE112M4,JCRX87-YE132M4,JCRX87-YE160M4,JCRX87-YE180M4,JCRX87-YE200M4,JCRX87-YE71M4,JCRX87-YE80M4,JCRX87-YE90M4,JCRX87-YEJ100M4,JCRX87-YEJ112M4,JCRX87-YEJ132M4,JCRX87-YEJ160M4,JCRX87-YEJ180M4,JCRX87-YEJ200M4,JCRX87-YEJ71M4,JCRX87-YEJ80M4,JCRX87-YEJ90M4,JCRX87-YEJB100M4,JCRX87-YEJB112M4,JCRX87-YEJB132M4,JCRX87-YEJB160M4,JCRX87-YEJB180M4,JCRX87-YEJB200M4,JCRX87-YEJB71M4,JCRX87-YEJB80M4,JCRX87-YEJB90M4,JCRX87-YP100M4,JCRX87-YP112M4,JCRX87-YP132M4,JCRX87-YP160M4,JCRX87-YP180M4,JCRX87-YP200M4,JCRX87-YP71M4,JCRX87-YP80M4,JCRX87-YP90M4,JCRX87-YPB100M4,JCRX87-YPB112M4,JCRX87-YPB132M4,JCRX87-YPB160M4,JCRX87-YPB180M4,JCRX87-YPB200M4,JCRX87-YPB71M4,JCRX87-YPB80M4,JCRX87-YPB90M4,JCRX87-YPE100M4,JCRX87-YPE112M4,JCRX87-YPE132M4,JCRX87-YPE160M4,JCRX87-YPE180M4,JCRX87-YPE200M4,JCRX87-YPE71M4,JCRX87-YPE80M4,JCRX87-YPE90M4,JCRX87-YS100M4,JCRX87-YS112M4,JCRX87-YS132M4,JCRX87-YS160M4,JCRX87-YS180M4,JCRX87-YS200M4,JCRX87-YS71M4,JCRX87-YS80M4,JCRX87-YS90M4,JCRX87-YVB100M4,JCRX87-YVB112M4,JCRX87-YVB132M4,JCRX87-YVB160M4,JCRX87-YVB180M4,JCRX87-YVB200M4,JCRX87-YVB71M4,JCRX87-YVB80M4,JCRX87-YVB90M4,JCRX87-YVP100M4,JCRX87-YVP112M4,JCRX87-YVP132M4,JCRX87-YVP160M4,JCRX87-YVP180M4,JCRX87-YVP200M4,JCRX87-YVP71M4,JCRX87-YVP80M4,JCRX87-YVP90M4,JCRX87-YVPEJ100M4,JCRX87-YVPEJ112M4,JCRX87-YVPEJ132M4,JCRX87-YVPEJ160M4,JCRX87-YVPEJ180M4,JCRX87-YVPEJ200M4,JCRX87-YVPEJ71M4,JCRX87-YVPEJ80M4,JCRX87-YVPEJ90M4。
RX89減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxxiliejiansuji-cn.html
推薦類似型號:R89減速機
關鍵詞:減速器帶電機一體機_減速機帶電機一體機_RX系列減速器_減速機馬達一體機_RX系列減速機_RX型減速機_電機減速機一體機_GRX系列減速機_減速機電機一體機

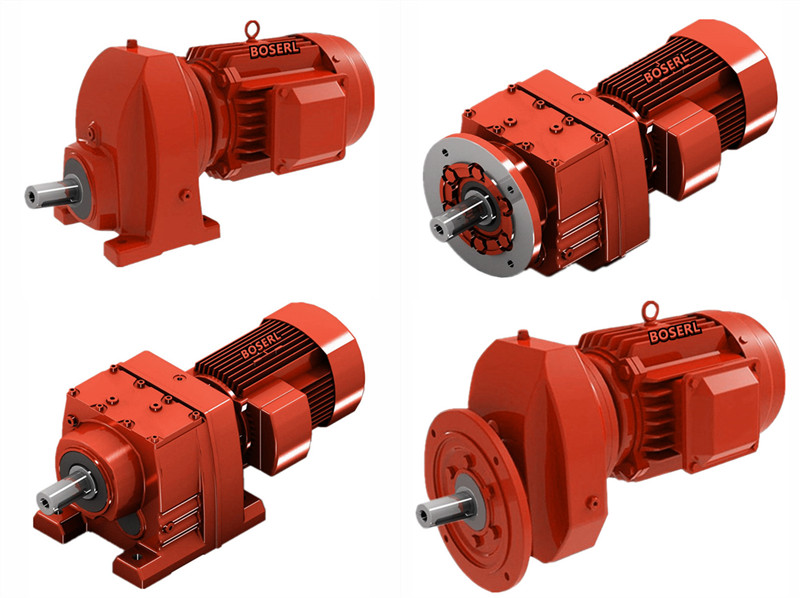

RX系列斜齒輪減速機型號:RX59減速機,RX69減速機,RX79減速機,RX89減速機,RX99減速機,RX109減速機
RX系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-45KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
標簽:   RX89減速機 RX87減速機結構圖 RX87減速機數模 RX87減速機樣本 RX87減速機規格
