RX79減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX79減速機選型樣本。
RX79-BE5.5KW-4P-2.13-M2-180°
RX:系列代號
79:減速機規格代號
BE:電機
5.5KW:電機功率
4P:電機級數
2.13:減速機傳動比
M2:減速機安裝位置
180°:接線盒位置
RX79減速機聯軸器的安裝:
RX79減速機輸入和輸出部件,如皮帶輪、聯軸器等在運行過程中會發生飛速運轉,可能有夾傷和擠壓危險,輸入和輸出部件采用防護罩蓋板!齒輪減速電機

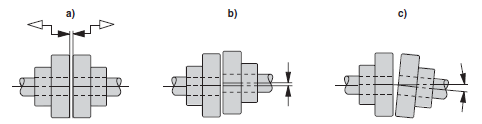

RX79減速機聯軸器裝配時要根據聯軸器制造商的規定進行下列校正:最大以及a最小間距;b軸向偏差;c角偏差;若事先對輸出部件涂抹潤滑油或進行短時間加熱(到80至100°C),則可便于裝配。

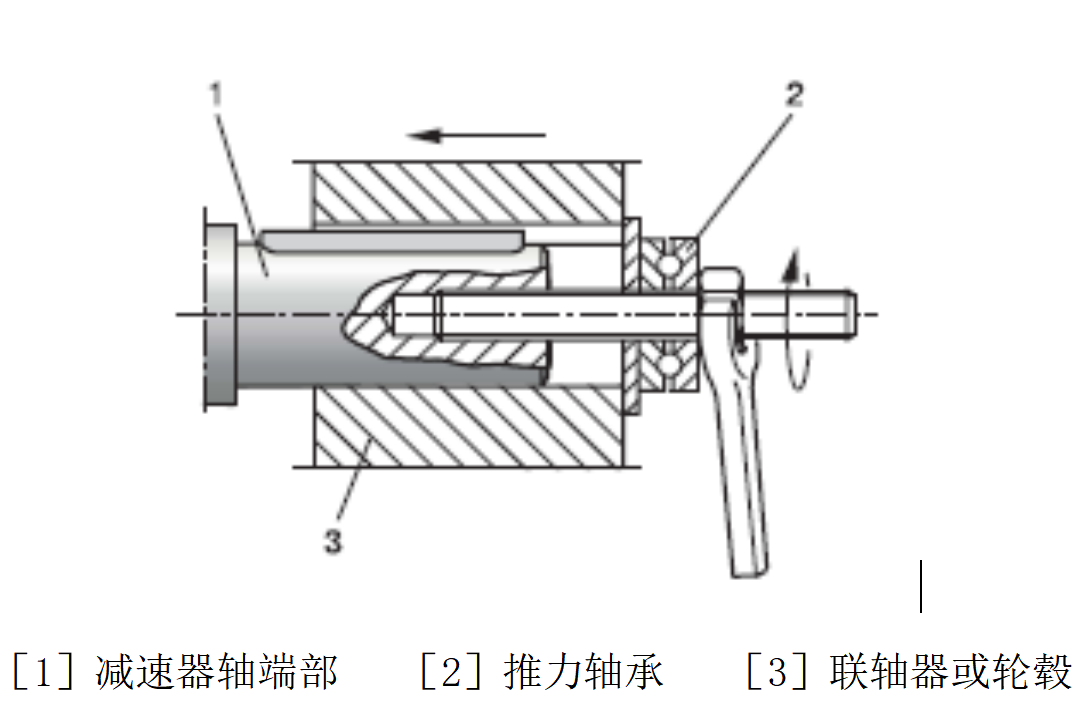

采用裝配夾具進行安裝RX79減速機聯軸器:下圖為采用裝配夾具將聯軸器或輪轂安裝RX79減速機或電機的軸端上的操作示意。若能夠順利擰緊螺栓,則可以在必要情況下無須安裝裝配夾具上的推力軸承。
RX79減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將RX79減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。電機減速機一體機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。臥式減速機
RX79減速機型號:
XDRX77-AM100M4,XDRX77-AM112M4,XDRX77-AM132M4,XDRX77-AM160M4,XDRX77-AM71M4,XDRX77-AM80M4,XDRX77-AM90M4,XDRX77-Y0.18KW,XDRX77-Y0.25KW,XDRX77-Y0.37KW,XDRX77-Y0.55KW,XDRX77-Y0.75KW,XDRX77-Y1.1KW,XDRX77-Y1.5KW,XDRX77-Y100M4,XDRX77-Y112M4,XDRX77-Y11KW,XDRX77-Y132M4,XDRX77-Y15KW,XDRX77-Y160M4,XDRX77-Y2.2KW,XDRX77-Y3KW,XDRX77-Y4KW,XDRX77-Y5.5KW,XDRX77-Y7.5KW,XDRX77-Y71M4,XDRX77-Y80M4,XDRX77-Y90M4,XDRX77-YB100M4,XDRX77-YB112M4,XDRX77-YB132M4,XDRX77-YB160M4,XDRX77-YB71M4,XDRX77-YB80M4,XDRX77-YB90M4,XDRX77-YDP100M4,XDRX77-YDP112M4,XDRX77-YDP132M4,XDRX77-YDP160M4,XDRX77-YDP71M4,XDRX77-YDP80M4,XDRX77-YDP90M4,XDRX77-YE100M4,XDRX77-YE112M4,XDRX77-YE132M4,XDRX77-YE160M4,XDRX77-YE71M4,XDRX77-YE80M4,XDRX77-YE90M4,XDRX77-YEJ100M4,XDRX77-YEJ112M4,XDRX77-YEJ132M4,XDRX77-YEJ160M4,XDRX77-YEJ71M4,XDRX77-YEJ80M4,XDRX77-YEJ90M4,XDRX77-YEJB100M4,XDRX77-YEJB112M4,XDRX77-YEJB132M4,XDRX77-YEJB160M4,XDRX77-YEJB71M4,XDRX77-YEJB80M4,XDRX77-YEJB90M4,XDRX77-YP100M4,XDRX77-YP112M4,XDRX77-YP132M4,XDRX77-YP160M4,XDRX77-YP71M4,XDRX77-YP80M4,XDRX77-YP90M4,XDRX77-YPB100M4,XDRX77-YPB112M4,XDRX77-YPB132M4,XDRX77-YPB160M4,XDRX77-YPB71M4,XDRX77-YPB80M4,XDRX77-YPB90M4,XDRX77-YPE100M4,XDRX77-YPE112M4,XDRX77-YPE132M4,XDRX77-YPE160M4,XDRX77-YPE71M4,XDRX77-YPE80M4,XDRX77-YPE90M4,XDRX77-YS100M4,XDRX77-YS112M4,XDRX77-YS132M4,XDRX77-YS160M4,XDRX77-YS71M4,XDRX77-YS80M4,XDRX77-YS90M4,XDRX77-YVB100M4,XDRX77-YVB112M4,XDRX77-YVB132M4,XDRX77-YVB160M4,XDRX77-YVB71M4,XDRX77-YVB80M4,XDRX77-YVB90M4,XDRX77-YVP100M4,XDRX77-YVP112M4,XDRX77-YVP132M4,XDRX77-YVP160M4,XDRX77-YVP71M4,XDRX77-YVP80M4,XDRX77-YVP90M4,XDRX77-YVPEJ100M4,XDRX77-YVPEJ112M4,XDRX77-YVPEJ132M4,XDRX77-YVPEJ160M4,XDRX77-YVPEJ71M4,XDRX77-YVPEJ80M4,XDRX77-YVPEJ90M4,RX79-AM100M4,RX79-AM112M4,RX79-AM132M4,RX79-AM160M4,RX79-AM71M4,RX79-AM80M4,RX79-AM90M4,RX79-Y0.18KW,RX79-Y0.25KW,RX79-Y0.37KW,RX79-Y0.55KW,RX79-Y0.75KW,RX79-Y1.1KW,RX79-Y1.5KW,RX79-Y100M4,RX79-Y112M4,RX79-Y11KW,RX79-Y132M4,RX79-Y15KW,RX79-Y160M4,RX79-Y2.2KW,RX79-Y3KW,RX79-Y4KW,RX79-Y5.5KW,RX79-Y7.5KW,RX79-Y71M4,RX79-Y80M4,RX79-Y90M4,RX79-YB100M4,RX79-YB112M4,RX79-YB132M4,RX79-YB160M4,RX79-YB71M4,RX79-YB80M4,RX79-YB90M4,RX79-YDP100M4,RX79-YDP112M4,RX79-YDP132M4,RX79-YDP160M4,RX79-YDP71M4,RX79-YDP80M4,RX79-YDP90M4,RX79-YE100M4,RX79-YE112M4,RX79-YE132M4,RX79-YE160M4,RX79-YE71M4,RX79-YE80M4,RX79-YE90M4,RX79-YEJ100M4,RX79-YEJ112M4,RX79-YEJ132M4,RX79-YEJ160M4,RX79-YEJ71M4,RX79-YEJ80M4,RX79-YEJ90M4,RX79-YEJB100M4,RX79-YEJB112M4,RX79-YEJB132M4,RX79-YEJB160M4,RX79-YEJB71M4,RX79-YEJB80M4,RX79-YEJB90M4,RX79-YP100M4,RX79-YP112M4,RX79-YP132M4,RX79-YP160M4,RX79-YP71M4,RX79-YP80M4,RX79-YP90M4,RX79-YPB100M4,RX79-YPB112M4,RX79-YPB132M4,RX79-YPB160M4,RX79-YPB71M4,RX79-YPB80M4,RX79-YPB90M4,RX79-YPE100M4,RX79-YPE112M4,RX79-YPE132M4,RX79-YPE160M4,RX79-YPE71M4,RX79-YPE80M4,RX79-YPE90M4,RX79-YS100M4,RX79-YS112M4,RX79-YS132M4,RX79-YS160M4,RX79-YS71M4,RX79-YS80M4,RX79-YS90M4,RX79-YVB100M4,RX79-YVB112M4,RX79-YVB132M4,RX79-YVB160M4,RX79-YVB71M4,RX79-YVB80M4,RX79-YVB90M4,RX79-YVP100M4,RX79-YVP112M4,RX79-YVP132M4,RX79-YVP160M4,RX79-YVP71M4,RX79-YVP80M4,RX79-YVP90M4,RX79-YVPEJ100M4,RX79-YVPEJ112M4,RX79-YVPEJ132M4,RX79-YVPEJ160M4,RX79-YVPEJ71M4,RX79-YVPEJ80M4,RX79-YVPEJ90M4,RWX77-AM100M4,RWX77-AM112M4,RWX77-AM132M4,RWX77-AM160M4,RWX77-AM71M4,RWX77-AM80M4,RWX77-AM90M4,RWX77-Y0.18KW,RWX77-Y0.25KW,RWX77-Y0.37KW,RWX77-Y0.55KW,RWX77-Y0.75KW,RWX77-Y1.1KW,RWX77-Y1.5KW,RWX77-Y100M4,RWX77-Y112M4,RWX77-Y11KW,RWX77-Y132M4,RWX77-Y15KW,RWX77-Y160M4,RWX77-Y2.2KW,RWX77-Y3KW,RWX77-Y4KW,RWX77-Y5.5KW,RWX77-Y7.5KW,RWX77-Y71M4,RWX77-Y80M4,RWX77-Y90M4,RWX77-YB100M4,RWX77-YB112M4,RWX77-YB132M4,RWX77-YB160M4,RWX77-YB71M4,RWX77-YB80M4,RWX77-YB90M4,RWX77-YDP100M4,RWX77-YDP112M4,RWX77-YDP132M4,RWX77-YDP160M4,RWX77-YDP71M4,RWX77-YDP80M4,RWX77-YDP90M4,RWX77-YE100M4,RWX77-YE112M4,RWX77-YE132M4,RWX77-YE160M4,RWX77-YE71M4,RWX77-YE80M4,RWX77-YE90M4,RWX77-YEJ100M4,RWX77-YEJ112M4,RWX77-YEJ132M4,RWX77-YEJ160M4,RWX77-YEJ71M4,RWX77-YEJ80M4,RWX77-YEJ90M4,RWX77-YEJB100M4,RWX77-YEJB112M4,RWX77-YEJB132M4,RWX77-YEJB160M4,RWX77-YEJB71M4,RWX77-YEJB80M4,RWX77-YEJB90M4,RWX77-YP100M4,RWX77-YP112M4,RWX77-YP132M4,RWX77-YP160M4,RWX77-YP71M4,RWX77-YP80M4,RWX77-YP90M4,RWX77-YPB100M4,RWX77-YPB112M4,RWX77-YPB132M4,RWX77-YPB160M4,RWX77-YPB71M4,RWX77-YPB80M4,RWX77-YPB90M4,RWX77-YPE100M4,RWX77-YPE112M4,RWX77-YPE132M4,RWX77-YPE160M4,RWX77-YPE71M4,RWX77-YPE80M4,RWX77-YPE90M4,RWX77-YS100M4,RWX77-YS112M4,RWX77-YS132M4,RWX77-YS160M4,RWX77-YS71M4,RWX77-YS80M4,RWX77-YS90M4,RWX77-YVB100M4,RWX77-YVB112M4,RWX77-YVB132M4,RWX77-YVB160M4,RWX77-YVB71M4,RWX77-YVB80M4,RWX77-YVB90M4,RWX77-YVP100M4,RWX77-YVP112M4,RWX77-YVP132M4,RWX77-YVP160M4,RWX77-YVP71M4,RWX77-YVP80M4,RWX77-YVP90M4,RWX77-YVPEJ100M4,RWX77-YVPEJ112M4,RWX77-YVPEJ132M4,RWX77-YVPEJ160M4,RWX77-YVPEJ71M4,RWX77-YVPEJ80M4,RWX77-YVPEJ90M4,YQRX77-AM100M4,YQRX77-AM112M4,YQRX77-AM132M4,YQRX77-AM160M4,YQRX77-AM71M4,YQRX77-AM80M4,YQRX77-AM90M4,YQRX77-Y0.18KW,YQRX77-Y0.25KW,YQRX77-Y0.37KW,YQRX77-Y0.55KW,YQRX77-Y0.75KW,YQRX77-Y1.1KW,YQRX77-Y1.5KW,YQRX77-Y100M4,YQRX77-Y112M4,YQRX77-Y11KW,YQRX77-Y132M4,YQRX77-Y15KW,YQRX77-Y160M4,YQRX77-Y2.2KW,YQRX77-Y3KW,YQRX77-Y4KW,YQRX77-Y5.5KW,YQRX77-Y7.5KW,YQRX77-Y71M4,YQRX77-Y80M4,YQRX77-Y90M4,YQRX77-YB100M4,YQRX77-YB112M4,YQRX77-YB132M4,YQRX77-YB160M4,YQRX77-YB71M4,YQRX77-YB80M4,YQRX77-YB90M4,YQRX77-YDP100M4,YQRX77-YDP112M4,YQRX77-YDP132M4,YQRX77-YDP160M4,YQRX77-YDP71M4,YQRX77-YDP80M4,YQRX77-YDP90M4,YQRX77-YE100M4,YQRX77-YE112M4,YQRX77-YE132M4,YQRX77-YE160M4,YQRX77-YE71M4,YQRX77-YE80M4,YQRX77-YE90M4,YQRX77-YEJ100M4,YQRX77-YEJ112M4,YQRX77-YEJ132M4,YQRX77-YEJ160M4,YQRX77-YEJ71M4,YQRX77-YEJ80M4,YQRX77-YEJ90M4,YQRX77-YEJB100M4,YQRX77-YEJB112M4,YQRX77-YEJB132M4,YQRX77-YEJB160M4,YQRX77-YEJB71M4,YQRX77-YEJB80M4,YQRX77-YEJB90M4,YQRX77-YP100M4,YQRX77-YP112M4,YQRX77-YP132M4,YQRX77-YP160M4,YQRX77-YP71M4,YQRX77-YP80M4,YQRX77-YP90M4,YQRX77-YPB100M4,YQRX77-YPB112M4,YQRX77-YPB132M4,YQRX77-YPB160M4,YQRX77-YPB71M4,YQRX77-YPB80M4,YQRX77-YPB90M4,YQRX77-YPE100M4,YQRX77-YPE112M4,YQRX77-YPE132M4,YQRX77-YPE160M4,YQRX77-YPE71M4,YQRX77-YPE80M4,YQRX77-YPE90M4,YQRX77-YS100M4,YQRX77-YS112M4,YQRX77-YS132M4,YQRX77-YS160M4,YQRX77-YS71M4,YQRX77-YS80M4,YQRX77-YS90M4,YQRX77-YVB100M4,YQRX77-YVB112M4,YQRX77-YVB132M4,YQRX77-YVB160M4,YQRX77-YVB71M4,YQRX77-YVB80M4,YQRX77-YVB90M4,YQRX77-YVP100M4,YQRX77-YVP112M4,YQRX77-YVP132M4,YQRX77-YVP160M4,YQRX77-YVP71M4,YQRX77-YVP80M4,YQRX77-YVP90M4,YQRX77-YVPEJ100M4,YQRX77-YVPEJ112M4,YQRX77-YVPEJ132M4,YQRX77-YVPEJ160M4,YQRX77-YVPEJ71M4,YQRX77-YVPEJ80M4,YQRX77-YVPEJ90M4,JCRX77-AM100M4,JCRX77-AM112M4,JCRX77-AM132M4,JCRX77-AM160M4,JCRX77-AM71M4,JCRX77-AM80M4,JCRX77-AM90M4,JCRX77-Y0.18KW,JCRX77-Y0.25KW,JCRX77-Y0.37KW,JCRX77-Y0.55KW,JCRX77-Y0.75KW,JCRX77-Y1.1KW,JCRX77-Y1.5KW,JCRX77-Y100M4,JCRX77-Y112M4,JCRX77-Y11KW,JCRX77-Y132M4,JCRX77-Y15KW,JCRX77-Y160M4,JCRX77-Y2.2KW,JCRX77-Y3KW,JCRX77-Y4KW,JCRX77-Y5.5KW,JCRX77-Y7.5KW,JCRX77-Y71M4,JCRX77-Y80M4,JCRX77-Y90M4,JCRX77-YB100M4,JCRX77-YB112M4,JCRX77-YB132M4,JCRX77-YB160M4,JCRX77-YB71M4,JCRX77-YB80M4,JCRX77-YB90M4,JCRX77-YDP100M4,JCRX77-YDP112M4,JCRX77-YDP132M4,JCRX77-YDP160M4,JCRX77-YDP71M4,JCRX77-YDP80M4,JCRX77-YDP90M4,JCRX77-YE100M4,JCRX77-YE112M4,JCRX77-YE132M4,JCRX77-YE160M4,JCRX77-YE71M4,JCRX77-YE80M4,JCRX77-YE90M4,JCRX77-YEJ100M4,JCRX77-YEJ112M4,JCRX77-YEJ132M4,JCRX77-YEJ160M4,JCRX77-YEJ71M4,JCRX77-YEJ80M4,JCRX77-YEJ90M4,JCRX77-YEJB100M4,JCRX77-YEJB112M4,JCRX77-YEJB132M4,JCRX77-YEJB160M4,JCRX77-YEJB71M4,JCRX77-YEJB80M4,JCRX77-YEJB90M4,JCRX77-YP100M4,JCRX77-YP112M4,JCRX77-YP132M4,JCRX77-YP160M4,JCRX77-YP71M4,JCRX77-YP80M4,JCRX77-YP90M4,JCRX77-YPB100M4,JCRX77-YPB112M4,JCRX77-YPB132M4,JCRX77-YPB160M4,JCRX77-YPB71M4,JCRX77-YPB80M4,JCRX77-YPB90M4,JCRX77-YPE100M4,JCRX77-YPE112M4,JCRX77-YPE132M4,JCRX77-YPE160M4,JCRX77-YPE71M4,JCRX77-YPE80M4,JCRX77-YPE90M4,JCRX77-YS100M4,JCRX77-YS112M4,JCRX77-YS132M4,JCRX77-YS160M4,JCRX77-YS71M4,JCRX77-YS80M4,JCRX77-YS90M4,JCRX77-YVB100M4,JCRX77-YVB112M4,JCRX77-YVB132M4,JCRX77-YVB160M4,JCRX77-YVB71M4,JCRX77-YVB80M4,JCRX77-YVB90M4,JCRX77-YVP100M4,JCRX77-YVP112M4,JCRX77-YVP132M4,JCRX77-YVP160M4,JCRX77-YVP71M4,JCRX77-YVP80M4,JCRX77-YVP90M4,JCRX77-YVPEJ100M4,JCRX77-YVPEJ112M4,JCRX77-YVPEJ132M4,JCRX77-YVPEJ160M4,JCRX77-YVPEJ71M4,JCRX77-YVPEJ80M4,JCRX77-YVPEJ90M4。
RX79減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxxiliejiansuji-cn.html
推薦類似型號:R79減速機
關鍵詞:減速器帶電機一體機_減速機帶電機一體機_RX系列減速器_減速機馬達一體機_RX系列減速機_RX型減速機_電機減速機一體機_GRX系列減速機_減速機電機一體機

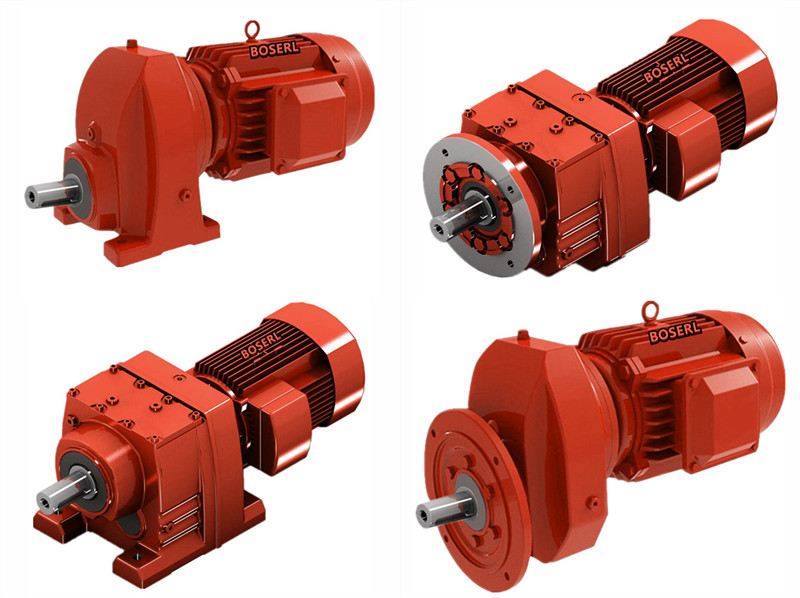

RX系列斜齒輪減速機型號:RX59減速機,RX69減速機,RX79減速機,RX89減速機,RX99減速機,RX109減速機
RX系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-45KW之間
