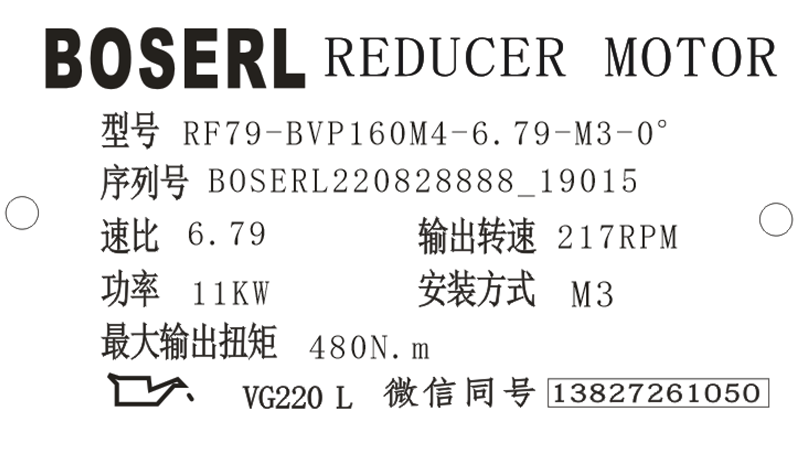

RF79減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF79減速機選型樣本。
RF79-BVP160M4-6.79-M3-0°
RF:系列代號
79:減速機規格代號
B:電機
VP:變頻電機
160:電機規格代號
M:電機定子鐵心長度代號
4:電機級數
6.79:減速機傳動比
M3:減速機安裝位置
0°:接線盒位置
RF79減速機潤滑油型號:
RF79減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。
RF79減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的RF79減速機選型樣本中列出了安裝位置從M1到M6RF79減速機相應的潤滑油加注標準,請自行下載查看。
RF79減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據RF79減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“RF79減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。RF系列減速機
RF79減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
RF79減速機使用說明:
RF79減速機的螺母:立式安裝RF79減速機輸出法蘭直徑250螺母規格M12;立式安裝RF79減速機輸出法蘭直徑300螺母規格M12;RF79減速機螺母/螺母擰緊扭矩強度等級10.9。齒輪減速電機
RF79減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
RF79減速機警告說明:由于RF79減速機發熱或RF79減速機油溫過高可能引起燙傷;對RF79減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
RF79減速機注意事項:若未注入正確的RF79減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
RF79減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見RF79減速機說明書安裝位置章節中的內容。立式減速機
RF79減速機型號:
YQRF77-AM100M4,YQRF77-AM112M4,YQRF77-AM132M4,YQRF77-AM160M4,YQRF77-AM71M4,YQRF77-AM80M4,YQRF77-AM90M4,YQRF77-Y0.18KW,YQRF77-Y0.25KW,YQRF77-Y0.37KW,YQRF77-Y0.55KW,YQRF77-Y0.75KW,YQRF77-Y1.1KW,YQRF77-Y1.5KW,YQRF77-Y100M4,YQRF77-Y112M4,YQRF77-Y11KW,YQRF77-Y132M4,YQRF77-Y15KW,YQRF77-Y160M4,YQRF77-Y2.2KW,YQRF77-Y3KW,YQRF77-Y4KW,YQRF77-Y5.5KW,YQRF77-Y7.5KW,YQRF77-Y71M4,YQRF77-Y80M4,YQRF77-Y90M4,YQRF77-YB100M4,YQRF77-YB112M4,YQRF77-YB132M4,YQRF77-YB160M4,YQRF77-YB71M4,YQRF77-YB80M4,YQRF77-YB90M4,YQRF77-YDP100M4,YQRF77-YDP112M4,YQRF77-YDP132M4,YQRF77-YDP160M4,YQRF77-YDP71M4,YQRF77-YDP80M4,YQRF77-YDP90M4,YQRF77-YE100M4,YQRF77-YE112M4,YQRF77-YE132M4,YQRF77-YE160M4,YQRF77-YE71M4,YQRF77-YE80M4,YQRF77-YE90M4,YQRF77-YEJ100M4,YQRF77-YEJ112M4,YQRF77-YEJ132M4,YQRF77-YEJ160M4,YQRF77-YEJ71M4,YQRF77-YEJ80M4,YQRF77-YEJ90M4,YQRF77-YEJB100M4,YQRF77-YEJB112M4,YQRF77-YEJB132M4,YQRF77-YEJB160M4,YQRF77-YEJB71M4,YQRF77-YEJB80M4,YQRF77-YEJB90M4,YQRF77-YP100M4,YQRF77-YP112M4,YQRF77-YP132M4,YQRF77-YP160M4,YQRF77-YP71M4,YQRF77-YP80M4,YQRF77-YP90M4,YQRF77-YPB100M4,YQRF77-YPB112M4,YQRF77-YPB132M4,YQRF77-YPB160M4,YQRF77-YPB71M4,YQRF77-YPB80M4,YQRF77-YPB90M4,YQRF77-YPE100M4,YQRF77-YPE112M4,YQRF77-YPE132M4,YQRF77-YPE160M4,YQRF77-YPE71M4,YQRF77-YPE80M4,YQRF77-YPE90M4,YQRF77-YS100M4,YQRF77-YS112M4,YQRF77-YS132M4,YQRF77-YS160M4,YQRF77-YS71M4,YQRF77-YS80M4,YQRF77-YS90M4,YQRF77-YVB100M4,YQRF77-YVB112M4,YQRF77-YVB132M4,YQRF77-YVB160M4,YQRF77-YVB71M4,YQRF77-YVB80M4,YQRF77-YVB90M4,YQRF77-YVP100M4,YQRF77-YVP112M4,YQRF77-YVP132M4,YQRF77-YVP160M4,YQRF77-YVP71M4,YQRF77-YVP80M4,YQRF77-YVP90M4,YQRF77-YVPEJ100M4,YQRF77-YVPEJ112M4,YQRF77-YVPEJ132M4,YQRF77-YVPEJ160M4,YQRF77-YVPEJ71M4,YQRF77-YVPEJ80M4,YQRF77-YVPEJ90M4,JCRF77-AM100M4,JCRF77-AM112M4,JCRF77-AM132M4,JCRF77-AM160M4,JCRF77-AM71M4,JCRF77-AM80M4,JCRF77-AM90M4,JCRF77-Y0.18KW,JCRF77-Y0.25KW,JCRF77-Y0.37KW,JCRF77-Y0.55KW,JCRF77-Y0.75KW,JCRF77-Y1.1KW,JCRF77-Y1.5KW,JCRF77-Y100M4,JCRF77-Y112M4,JCRF77-Y11KW,JCRF77-Y132M4,JCRF77-Y15KW,JCRF77-Y160M4,JCRF77-Y2.2KW,JCRF77-Y3KW,JCRF77-Y4KW,JCRF77-Y5.5KW,JCRF77-Y7.5KW,JCRF77-Y71M4,JCRF77-Y80M4,JCRF77-Y90M4,JCRF77-YB100M4,JCRF77-YB112M4,JCRF77-YB132M4,JCRF77-YB160M4,JCRF77-YB71M4,JCRF77-YB80M4,JCRF77-YB90M4,JCRF77-YDP100M4,JCRF77-YDP112M4,JCRF77-YDP132M4,JCRF77-YDP160M4,JCRF77-YDP71M4,JCRF77-YDP80M4,JCRF77-YDP90M4,JCRF77-YE100M4,JCRF77-YE112M4,JCRF77-YE132M4,JCRF77-YE160M4,JCRF77-YE71M4,JCRF77-YE80M4,JCRF77-YE90M4,JCRF77-YEJ100M4,JCRF77-YEJ112M4,JCRF77-YEJ132M4,JCRF77-YEJ160M4,JCRF77-YEJ71M4,JCRF77-YEJ80M4,JCRF77-YEJ90M4,JCRF77-YEJB100M4,JCRF77-YEJB112M4,JCRF77-YEJB132M4,JCRF77-YEJB160M4,JCRF77-YEJB71M4,JCRF77-YEJB80M4,JCRF77-YEJB90M4,JCRF77-YP100M4,JCRF77-YP112M4,JCRF77-YP132M4,JCRF77-YP160M4,JCRF77-YP71M4,JCRF77-YP80M4,JCRF77-YP90M4,JCRF77-YPB100M4,JCRF77-YPB112M4,JCRF77-YPB132M4,JCRF77-YPB160M4,JCRF77-YPB71M4,JCRF77-YPB80M4,JCRF77-YPB90M4,JCRF77-YPE100M4,JCRF77-YPE112M4,JCRF77-YPE132M4,JCRF77-YPE160M4,JCRF77-YPE71M4,JCRF77-YPE80M4,JCRF77-YPE90M4,JCRF77-YS100M4,JCRF77-YS112M4,JCRF77-YS132M4,JCRF77-YS160M4,JCRF77-YS71M4,JCRF77-YS80M4,JCRF77-YS90M4,JCRF77-YVB100M4,JCRF77-YVB112M4,JCRF77-YVB132M4,JCRF77-YVB160M4,JCRF77-YVB71M4,JCRF77-YVB80M4,JCRF77-YVB90M4,JCRF77-YVP100M4,JCRF77-YVP112M4,JCRF77-YVP132M4,JCRF77-YVP160M4,JCRF77-YVP71M4,JCRF77-YVP80M4,JCRF77-YVP90M4,JCRF77-YVPEJ100M4,JCRF77-YVPEJ112M4,JCRF77-YVPEJ132M4,JCRF77-YVPEJ160M4,JCRF77-YVPEJ71M4,JCRF77-YVPEJ80M4,JCRF77-YVPEJ90M4,XDRF77-AM100M4,XDRF77-AM112M4,XDRF77-AM132M4,XDRF77-AM160M4,XDRF77-AM71M4,XDRF77-AM80M4,XDRF77-AM90M4,XDRF77-Y0.18KW,XDRF77-Y0.25KW,XDRF77-Y0.37KW,XDRF77-Y0.55KW,XDRF77-Y0.75KW,XDRF77-Y1.1KW,XDRF77-Y1.5KW,XDRF77-Y100M4,XDRF77-Y112M4,XDRF77-Y11KW,XDRF77-Y132M4,XDRF77-Y15KW,XDRF77-Y160M4,XDRF77-Y2.2KW,XDRF77-Y3KW,XDRF77-Y4KW,XDRF77-Y5.5KW,XDRF77-Y7.5KW,XDRF77-Y71M4,XDRF77-Y80M4,XDRF77-Y90M4,XDRF77-YB100M4,XDRF77-YB112M4,XDRF77-YB132M4,XDRF77-YB160M4,XDRF77-YB71M4,XDRF77-YB80M4,XDRF77-YB90M4,XDRF77-YDP100M4,XDRF77-YDP112M4,XDRF77-YDP132M4,XDRF77-YDP160M4,XDRF77-YDP71M4,XDRF77-YDP80M4,XDRF77-YDP90M4,XDRF77-YE100M4,XDRF77-YE112M4,XDRF77-YE132M4,XDRF77-YE160M4,XDRF77-YE71M4,XDRF77-YE80M4,XDRF77-YE90M4,XDRF77-YEJ100M4,XDRF77-YEJ112M4,XDRF77-YEJ132M4,XDRF77-YEJ160M4,XDRF77-YEJ71M4,XDRF77-YEJ80M4,XDRF77-YEJ90M4,XDRF77-YEJB100M4,XDRF77-YEJB112M4,XDRF77-YEJB132M4,XDRF77-YEJB160M4,XDRF77-YEJB71M4,XDRF77-YEJB80M4,XDRF77-YEJB90M4,XDRF77-YP100M4,XDRF77-YP112M4,XDRF77-YP132M4,XDRF77-YP160M4,XDRF77-YP71M4,XDRF77-YP80M4,XDRF77-YP90M4,XDRF77-YPB100M4,XDRF77-YPB112M4,XDRF77-YPB132M4,XDRF77-YPB160M4,XDRF77-YPB71M4,XDRF77-YPB80M4,XDRF77-YPB90M4,XDRF77-YPE100M4,XDRF77-YPE112M4,XDRF77-YPE132M4,XDRF77-YPE160M4,XDRF77-YPE71M4,XDRF77-YPE80M4,XDRF77-YPE90M4,XDRF77-YS100M4,XDRF77-YS112M4,XDRF77-YS132M4,XDRF77-YS160M4,XDRF77-YS71M4,XDRF77-YS80M4,XDRF77-YS90M4,XDRF77-YVB100M4,XDRF77-YVB112M4,XDRF77-YVB132M4,XDRF77-YVB160M4,XDRF77-YVB71M4,XDRF77-YVB80M4,XDRF77-YVB90M4,XDRF77-YVP100M4,XDRF77-YVP112M4,XDRF77-YVP132M4,XDRF77-YVP160M4,XDRF77-YVP71M4,XDRF77-YVP80M4,XDRF77-YVP90M4,XDRF77-YVPEJ100M4,XDRF77-YVPEJ112M4,XDRF77-YVPEJ132M4,XDRF77-YVPEJ160M4,XDRF77-YVPEJ71M4,XDRF77-YVPEJ80M4,XDRF77-YVPEJ90M4,RF79-AM100M4,RF79-AM112M4,RF79-AM132M4,RF79-AM160M4,RF79-AM71M4,RF79-AM80M4,RF79-AM90M4,RF79-Y0.18KW,RF79-Y0.25KW,RF79-Y0.37KW,RF79-Y0.55KW,RF79-Y0.75KW,RF79-Y1.1KW,RF79-Y1.5KW,RF79-Y100M4,RF79-Y112M4,RF79-Y11KW,RF79-Y132M4,RF79-Y15KW,RF79-Y160M4,RF79-Y2.2KW,RF79-Y3KW,RF79-Y4KW,RF79-Y5.5KW,RF79-Y7.5KW,RF79-Y71M4,RF79-Y80M4,RF79-Y90M4,RF79-YB100M4,RF79-YB112M4,RF79-YB132M4,RF79-YB160M4,RF79-YB71M4,RF79-YB80M4,RF79-YB90M4,RF79-YDP100M4,RF79-YDP112M4,RF79-YDP132M4,RF79-YDP160M4,RF79-YDP71M4,RF79-YDP80M4,RF79-YDP90M4,RF79-YE100M4,RF79-YE112M4,RF79-YE132M4,RF79-YE160M4,RF79-YE71M4,RF79-YE80M4,RF79-YE90M4,RF79-YEJ100M4,RF79-YEJ112M4,RF79-YEJ132M4,RF79-YEJ160M4,RF79-YEJ71M4,RF79-YEJ80M4,RF79-YEJ90M4,RF79-YEJB100M4,RF79-YEJB112M4,RF79-YEJB132M4,RF79-YEJB160M4,RF79-YEJB71M4,RF79-YEJB80M4,RF79-YEJB90M4,RF79-YP100M4,RF79-YP112M4,RF79-YP132M4,RF79-YP160M4,RF79-YP71M4,RF79-YP80M4,RF79-YP90M4,RF79-YPB100M4,RF79-YPB112M4,RF79-YPB132M4,RF79-YPB160M4,RF79-YPB71M4,RF79-YPB80M4,RF79-YPB90M4,RF79-YPE100M4,RF79-YPE112M4,RF79-YPE132M4,RF79-YPE160M4,RF79-YPE71M4,RF79-YPE80M4,RF79-YPE90M4,RF79-YS100M4,RF79-YS112M4,RF79-YS132M4,RF79-YS160M4,RF79-YS71M4,RF79-YS80M4,RF79-YS90M4,RF79-YVB100M4,RF79-YVB112M4,RF79-YVB132M4,RF79-YVB160M4,RF79-YVB71M4,RF79-YVB80M4,RF79-YVB90M4,RF79-YVP100M4,RF79-YVP112M4,RF79-YVP132M4,RF79-YVP160M4,RF79-YVP71M4,RF79-YVP80M4,RF79-YVP90M4,RF79-YVPEJ100M4,RF79-YVPEJ112M4,RF79-YVPEJ132M4,RF79-YVPEJ160M4,RF79-YVPEJ71M4,RF79-YVPEJ80M4,RF79-YVPEJ90M4,RWF77-AM100M4,RWF77-AM112M4,RWF77-AM132M4,RWF77-AM160M4,RWF77-AM71M4,RWF77-AM80M4,RWF77-AM90M4,RWF77-Y0.18KW,RWF77-Y0.25KW,RWF77-Y0.37KW,RWF77-Y0.55KW,RWF77-Y0.75KW,RWF77-Y1.1KW,RWF77-Y1.5KW,RWF77-Y100M4,RWF77-Y112M4,RWF77-Y11KW,RWF77-Y132M4,RWF77-Y15KW,RWF77-Y160M4,RWF77-Y2.2KW,RWF77-Y3KW,RWF77-Y4KW,RWF77-Y5.5KW,RWF77-Y7.5KW,RWF77-Y71M4,RWF77-Y80M4,RWF77-Y90M4,RWF77-YB100M4,RWF77-YB112M4,RWF77-YB132M4,RWF77-YB160M4,RWF77-YB71M4,RWF77-YB80M4,RWF77-YB90M4,RWF77-YDP100M4,RWF77-YDP112M4,RWF77-YDP132M4,RWF77-YDP160M4,RWF77-YDP71M4,RWF77-YDP80M4,RWF77-YDP90M4,RWF77-YE100M4,RWF77-YE112M4,RWF77-YE132M4,RWF77-YE160M4,RWF77-YE71M4,RWF77-YE80M4,RWF77-YE90M4,RWF77-YEJ100M4,RWF77-YEJ112M4,RWF77-YEJ132M4,RWF77-YEJ160M4,RWF77-YEJ71M4,RWF77-YEJ80M4,RWF77-YEJ90M4,RWF77-YEJB100M4,RWF77-YEJB112M4,RWF77-YEJB132M4,RWF77-YEJB160M4,RWF77-YEJB71M4,RWF77-YEJB80M4,RWF77-YEJB90M4,RWF77-YP100M4,RWF77-YP112M4,RWF77-YP132M4,RWF77-YP160M4,RWF77-YP71M4,RWF77-YP80M4,RWF77-YP90M4,RWF77-YPB100M4,RWF77-YPB112M4,RWF77-YPB132M4,RWF77-YPB160M4,RWF77-YPB71M4,RWF77-YPB80M4,RWF77-YPB90M4,RWF77-YPE100M4,RWF77-YPE112M4,RWF77-YPE132M4,RWF77-YPE160M4,RWF77-YPE71M4,RWF77-YPE80M4,RWF77-YPE90M4,RWF77-YS100M4,RWF77-YS112M4,RWF77-YS132M4,RWF77-YS160M4,RWF77-YS71M4,RWF77-YS80M4,RWF77-YS90M4,RWF77-YVB100M4,RWF77-YVB112M4,RWF77-YVB132M4,RWF77-YVB160M4,RWF77-YVB71M4,RWF77-YVB80M4,RWF77-YVB90M4,RWF77-YVP100M4,RWF77-YVP112M4,RWF77-YVP132M4,RWF77-YVP160M4,RWF77-YVP71M4,RWF77-YVP80M4,RWF77-YVP90M4,RWF77-YVPEJ100M4,RWF77-YVPEJ112M4,RWF77-YVPEJ132M4,RWF77-YVPEJ160M4,RWF77-YVPEJ71M4,RWF77-YVPEJ80M4,RWF77-YVPEJ90M4。
