RF29減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF29減速機選型樣本。
RF29-BVP90M4-8.16-M1-270°
RF:系列代號
29:減速機規格代號
B:電機
VP:變頻電機
90:電機規格代號
M:電機定子鐵心長度代號
4:電機級數
8.16:減速機傳動比
M1:減速機安裝位置
270°:接線盒位置
RF29減速機潤滑油型號:
RF29減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。
RF29減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的RF29減速機選型樣本中列出了安裝位置從M1到M6RF29減速機相應的潤滑油加注標準,請自行下載查看。
RF29減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據RF29減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“RF29減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。RF系列減速機
RF29減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
RF29減速機使用說明:
RF29減速機的螺母:立式安裝RF29減速機輸出法蘭直徑120螺母規格M6;立式安裝RF29減速機輸出法蘭直徑160螺母規格M8;RF29減速機螺母/螺母擰緊扭矩強度等級10.9。齒輪減速電機
RF29減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
RF29減速機警告說明:由于RF29減速機發熱或RF29減速機油溫過高可能引起燙傷;對RF29減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
RF29減速機注意事項:若未注入正確的RF29減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
RF29減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見RF29減速機說明書安裝位置章節中的內容。立式減速機
RF29減速機型號:
YQRF27-AM100M4,YQRF27-AM63M4,YQRF27-AM71M4,YQRF27-AM80M4,YQRF27-AM90M4,YQRF27-Y0.12KW,YQRF27-Y0.18KW,YQRF27-Y0.25KW,YQRF27-Y0.37KW,YQRF27-Y0.55KW,YQRF27-Y0.75KW,YQRF27-Y1.1KW,YQRF27-Y1.5KW,YQRF27-Y100M4,YQRF27-Y2.2KW,YQRF27-Y3KW,YQRF27-Y63M4,YQRF27-Y71M4,YQRF27-Y80M4,YQRF27-Y90M4,YQRF27-YB100M4,YQRF27-YB63M4,YQRF27-YB71M4,YQRF27-YB80M4,YQRF27-YB90M4,YQRF27-YDP100M4,YQRF27-YDP63M4,YQRF27-YDP71M4,YQRF27-YDP80M4,YQRF27-YDP90M4,YQRF27-YE100M4,YQRF27-YE63M4,YQRF27-YE71M4,YQRF27-YE80M4,YQRF27-YE90M4,YQRF27-YEJ100M4,YQRF27-YEJ63M4,YQRF27-YEJ71M4,YQRF27-YEJ80M4,YQRF27-YEJ90M4,YQRF27-YEJB100M4,YQRF27-YEJB63M4,YQRF27-YEJB71M4,YQRF27-YEJB80M4,YQRF27-YEJB90M4,YQRF27-YP100M4,YQRF27-YP63M4,YQRF27-YP71M4,YQRF27-YP80M4,YQRF27-YP90M4,YQRF27-YPB100M4,YQRF27-YPB63M4,YQRF27-YPB71M4,YQRF27-YPB80M4,YQRF27-YPB90M4,YQRF27-YPE100M4,YQRF27-YPE63M4,YQRF27-YPE71M4,YQRF27-YPE80M4,YQRF27-YPE90M4,YQRF27-YS100M4,YQRF27-YS63M4,YQRF27-YS71M4,YQRF27-YS80M4,YQRF27-YS90M4,YQRF27-YVB100M4,YQRF27-YVB63M4,YQRF27-YVB71M4,YQRF27-YVB80M4,YQRF27-YVB90M4,YQRF27-YVP100M4,YQRF27-YVP63M4,YQRF27-YVP71M4,YQRF27-YVP80M4,YQRF27-YVP90M4,YQRF27-YVPEJ100M4,YQRF27-YVPEJ63M4,YQRF27-YVPEJ71M4,YQRF27-YVPEJ80M4,YQRF27-YVPEJ90M4,JCRF27-AM100M4,JCRF27-AM63M4,JCRF27-AM71M4,JCRF27-AM80M4,JCRF27-AM90M4,JCRF27-Y0.12KW,JCRF27-Y0.18KW,JCRF27-Y0.25KW,JCRF27-Y0.37KW,JCRF27-Y0.55KW,JCRF27-Y0.75KW,JCRF27-Y1.1KW,JCRF27-Y1.5KW,JCRF27-Y100M4,JCRF27-Y2.2KW,JCRF27-Y3KW,JCRF27-Y63M4,JCRF27-Y71M4,JCRF27-Y80M4,JCRF27-Y90M4,JCRF27-YB100M4,JCRF27-YB63M4,JCRF27-YB71M4,JCRF27-YB80M4,JCRF27-YB90M4,JCRF27-YDP100M4,JCRF27-YDP63M4,JCRF27-YDP71M4,JCRF27-YDP80M4,JCRF27-YDP90M4,JCRF27-YE100M4,JCRF27-YE63M4,JCRF27-YE71M4,JCRF27-YE80M4,JCRF27-YE90M4,JCRF27-YEJ100M4,JCRF27-YEJ63M4,JCRF27-YEJ71M4,JCRF27-YEJ80M4,JCRF27-YEJ90M4,JCRF27-YEJB100M4,JCRF27-YEJB63M4,JCRF27-YEJB71M4,JCRF27-YEJB80M4,JCRF27-YEJB90M4,JCRF27-YP100M4,JCRF27-YP63M4,JCRF27-YP71M4,JCRF27-YP80M4,JCRF27-YP90M4,JCRF27-YPB100M4,JCRF27-YPB63M4,JCRF27-YPB71M4,JCRF27-YPB80M4,JCRF27-YPB90M4,JCRF27-YPE100M4,JCRF27-YPE63M4,JCRF27-YPE71M4,JCRF27-YPE80M4,JCRF27-YPE90M4,JCRF27-YS100M4,JCRF27-YS63M4,JCRF27-YS71M4,JCRF27-YS80M4,JCRF27-YS90M4,JCRF27-YVB100M4,JCRF27-YVB63M4,JCRF27-YVB71M4,JCRF27-YVB80M4,JCRF27-YVB90M4,JCRF27-YVP100M4,JCRF27-YVP63M4,JCRF27-YVP71M4,JCRF27-YVP80M4,JCRF27-YVP90M4,JCRF27-YVPEJ100M4,JCRF27-YVPEJ63M4,JCRF27-YVPEJ71M4,JCRF27-YVPEJ80M4,JCRF27-YVPEJ90M4,XDRF27-AM100M4,XDRF27-AM63M4,XDRF27-AM71M4,XDRF27-AM80M4,XDRF27-AM90M4,XDRF27-Y0.12KW,XDRF27-Y0.18KW,XDRF27-Y0.25KW,XDRF27-Y0.37KW,XDRF27-Y0.55KW,XDRF27-Y0.75KW,XDRF27-Y1.1KW,XDRF27-Y1.5KW,XDRF27-Y100M4,XDRF27-Y2.2KW,XDRF27-Y3KW,XDRF27-Y63M4,XDRF27-Y71M4,XDRF27-Y80M4,XDRF27-Y90M4,XDRF27-YB100M4,XDRF27-YB63M4,XDRF27-YB71M4,XDRF27-YB80M4,XDRF27-YB90M4,XDRF27-YDP100M4,XDRF27-YDP63M4,XDRF27-YDP71M4,XDRF27-YDP80M4,XDRF27-YDP90M4,XDRF27-YE100M4,XDRF27-YE63M4,XDRF27-YE71M4,XDRF27-YE80M4,XDRF27-YE90M4,XDRF27-YEJ100M4,XDRF27-YEJ63M4,XDRF27-YEJ71M4,XDRF27-YEJ80M4,XDRF27-YEJ90M4,XDRF27-YEJB100M4,XDRF27-YEJB63M4,XDRF27-YEJB71M4,XDRF27-YEJB80M4,XDRF27-YEJB90M4,XDRF27-YP100M4,XDRF27-YP63M4,XDRF27-YP71M4,XDRF27-YP80M4,XDRF27-YP90M4,XDRF27-YPB100M4,XDRF27-YPB63M4,XDRF27-YPB71M4,XDRF27-YPB80M4,XDRF27-YPB90M4,XDRF27-YPE100M4,XDRF27-YPE63M4,XDRF27-YPE71M4,XDRF27-YPE80M4,XDRF27-YPE90M4,XDRF27-YS100M4,XDRF27-YS63M4,XDRF27-YS71M4,XDRF27-YS80M4,XDRF27-YS90M4,XDRF27-YVB100M4,XDRF27-YVB63M4,XDRF27-YVB71M4,XDRF27-YVB80M4,XDRF27-YVB90M4,XDRF27-YVP100M4,XDRF27-YVP63M4,XDRF27-YVP71M4,XDRF27-YVP80M4,XDRF27-YVP90M4,XDRF27-YVPEJ100M4,XDRF27-YVPEJ63M4,XDRF27-YVPEJ71M4,XDRF27-YVPEJ80M4,XDRF27-YVPEJ90M4,RF29-AM100M4,RF29-AM63M4,RF29-AM71M4,RF29-AM80M4,RF29-AM90M4,RF29-Y0.12KW,RF29-Y0.18KW,RF29-Y0.25KW,RF29-Y0.37KW,RF29-Y0.55KW,RF29-Y0.75KW,RF29-Y1.1KW,RF29-Y1.5KW,RF29-Y100M4,RF29-Y2.2KW,RF29-Y3KW,RF29-Y63M4,RF29-Y71M4,RF29-Y80M4,RF29-Y90M4,RF29-YB100M4,RF29-YB63M4,RF29-YB71M4,RF29-YB80M4,RF29-YB90M4,RF29-YDP100M4,RF29-YDP63M4,RF29-YDP71M4,RF29-YDP80M4,RF29-YDP90M4,RF29-YE100M4,RF29-YE63M4,RF29-YE71M4,RF29-YE80M4,RF29-YE90M4,RF29-YEJ100M4,RF29-YEJ63M4,RF29-YEJ71M4,RF29-YEJ80M4,RF29-YEJ90M4,RF29-YEJB100M4,RF29-YEJB63M4,RF29-YEJB71M4,RF29-YEJB80M4,RF29-YEJB90M4,RF29-YP100M4,RF29-YP63M4,RF29-YP71M4,RF29-YP80M4,RF29-YP90M4,RF29-YPB100M4,RF29-YPB63M4,RF29-YPB71M4,RF29-YPB80M4,RF29-YPB90M4,RF29-YPE100M4,RF29-YPE63M4,RF29-YPE71M4,RF29-YPE80M4,RF29-YPE90M4,RF29-YS100M4,RF29-YS63M4,RF29-YS71M4,RF29-YS80M4,RF29-YS90M4,RF29-YVB100M4,RF29-YVB63M4,RF29-YVB71M4,RF29-YVB80M4,RF29-YVB90M4,RF29-YVP100M4,RF29-YVP63M4,RF29-YVP71M4,RF29-YVP80M4,RF29-YVP90M4,RF29-YVPEJ100M4,RF29-YVPEJ63M4,RF29-YVPEJ71M4,RF29-YVPEJ80M4,RF29-YVPEJ90M4,RWF27-AM100M4,RWF27-AM63M4,RWF27-AM71M4,RWF27-AM80M4,RWF27-AM90M4,RWF27-Y0.12KW,RWF27-Y0.18KW,RWF27-Y0.25KW,RWF27-Y0.37KW,RWF27-Y0.55KW,RWF27-Y0.75KW,RWF27-Y1.1KW,RWF27-Y1.5KW,RWF27-Y100M4,RWF27-Y2.2KW,RWF27-Y3KW,RWF27-Y63M4,RWF27-Y71M4,RWF27-Y80M4,RWF27-Y90M4,RWF27-YB100M4,RWF27-YB63M4,RWF27-YB71M4,RWF27-YB80M4,RWF27-YB90M4,RWF27-YDP100M4,RWF27-YDP63M4,RWF27-YDP71M4,RWF27-YDP80M4,RWF27-YDP90M4,RWF27-YE100M4,RWF27-YE63M4,RWF27-YE71M4,RWF27-YE80M4,RWF27-YE90M4,RWF27-YEJ100M4,RWF27-YEJ63M4,RWF27-YEJ71M4,RWF27-YEJ80M4,RWF27-YEJ90M4,RWF27-YEJB100M4,RWF27-YEJB63M4,RWF27-YEJB71M4,RWF27-YEJB80M4,RWF27-YEJB90M4,RWF27-YP100M4,RWF27-YP63M4,RWF27-YP71M4,RWF27-YP80M4,RWF27-YP90M4,RWF27-YPB100M4,RWF27-YPB63M4,RWF27-YPB71M4,RWF27-YPB80M4,RWF27-YPB90M4,RWF27-YPE100M4,RWF27-YPE63M4,RWF27-YPE71M4,RWF27-YPE80M4,RWF27-YPE90M4,RWF27-YS100M4,RWF27-YS63M4,RWF27-YS71M4,RWF27-YS80M4,RWF27-YS90M4,RWF27-YVB100M4,RWF27-YVB63M4,RWF27-YVB71M4,RWF27-YVB80M4,RWF27-YVB90M4,RWF27-YVP100M4,RWF27-YVP63M4,RWF27-YVP71M4,RWF27-YVP80M4,RWF27-YVP90M4,RWF27-YVPEJ100M4,RWF27-YVPEJ63M4,RWF27-YVPEJ71M4,RWF27-YVPEJ80M4,RWF27-YVPEJ90M4。

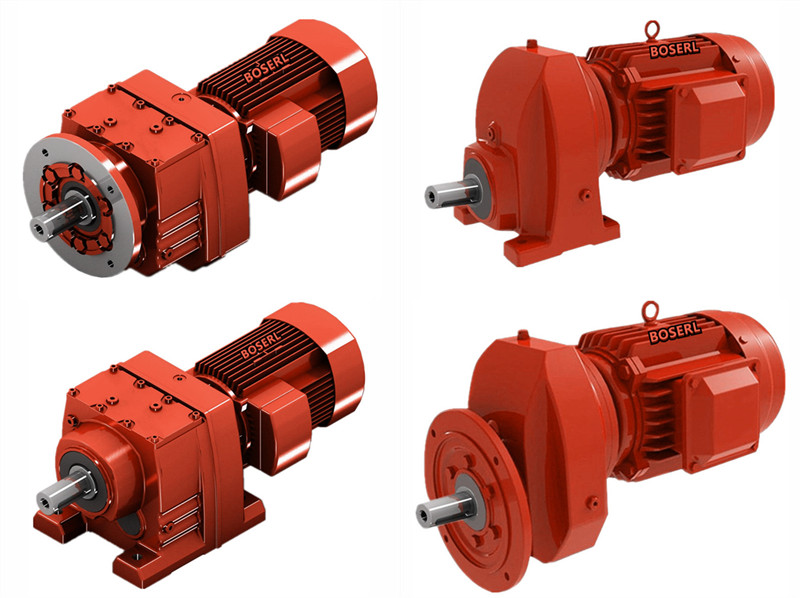

RF29減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rfxiliejiansuji-cn.html
推薦類似型號:R29減速機
關鍵詞:直連電機帶減速機立式一體機_直線輸出減速機_RF系列減速器_直連減速機_直連減速器_直聯減速機_GRF系列減速機_RF系列減速機_RF型減速機_RF齒輪減速電機
RF系列減速機型號:RF19減速機,RF29減速機,RF39減速機,RF49減速機,RF59減速機,RF69減速機,RF79減速機,RF89減速機,RF99減速機,RF109減速機,RF139減速機,RF149減速機,RF169減速機
RF系列斜齒輪減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
