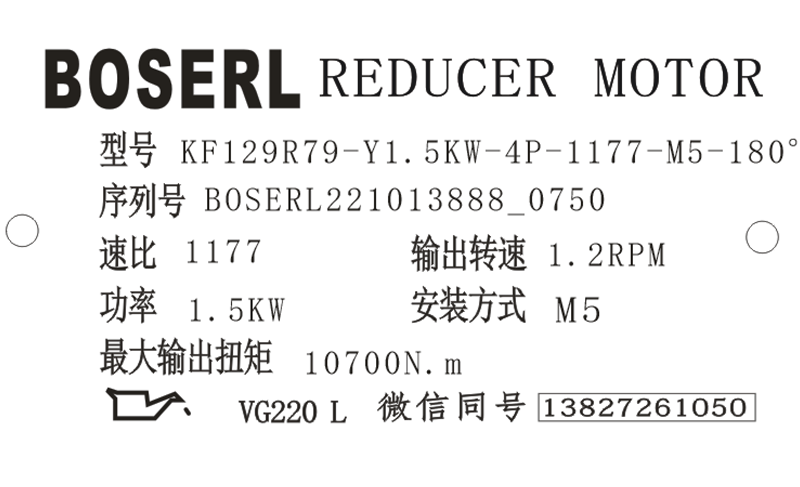

KF129R79減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF129R79減速機選型樣本。
KF129R79-Y1.5KW-4P-1177-M5-180°
KF/R:系列代號
129/79:減速機規格代號
Y:電機
1.5KW:電機功率
4P:電機級數
1177:減速機傳動比
M5:減速機安裝位置
180°:接線盒位置
KF129R79減速機電機安裝方法:
KF129R79減速機電機須由熟悉安全條例及國家法規的專業人員安裝和使用。齒輪減速電機
按照當?shù)匾?guī)定,電機安裝和操作場所應配備必要的安全防護設備,以避免意外事故。安裝地點請優先選擇符合下列條件的地方:容易做檢查的地方,并盡可能是干燥通風的地方;塵埃少且離爐等熱源較遠的地方。
KF129R79減速機電機接地:為了防止漏電等事故,根據電氣工作物規定,客戶使用前須將線盒內的接地螺釘與地線導通,如EN50014標準的表3所示。
KF129R79減速機電機垂直安裝,轉軸朝下時,必須有防護下落物體和液體的防護罩。確保電機防護等級與環境和氣候條件相匹配,如確保接線盒內不進水。
KF129R79減速機電機電網和電機端子之間的電纜接線必須根據銘牌上的額定電流,符合國家相關安裝標準或EN60204-1標準的要求。
KF129R79減速機電機只用于固定安裝。電機的電纜接頭應符合GB3836.8/EN 60079-15。電纜接頭的防護等級至少應等同于電機的防護等級。電纜應經機械防護后緊固在接線盒上,應符合GB3836.1/EN60079-0和當?shù)氐陌惭b標準的規定。
KF129R79減速機電機當使用連軸器連接輸出軸時,需安裝固定且務必使兩軸平行,底座需以安裝孔徑相適應的螺栓進行安裝,確保齒輪減速電機緊密牢固。
KF129R79減速機電機所有安裝在出力軸上的裝備必須輕裝于軸上,勿使用鐵錘及其它鈍器等敲擊出力軸,避免因安裝遇緊而引起軸承損壞。
KF129R79減速機電機滑輪、鏈輪或齒輪在裝配時盡量靠近出力軸承以減少彎曲應力。應使用不超過出力軸直徑6倍的鏈輪、皮帶輪等與出軸連接。使用時請配合H7公差使用,避免使用中發生異常噪音及軸面受損。
KF129R79減速機電機安裝完成后,可以在出力軸表面涂上適當?shù)姆冷P油或防銹漆以保護出力軸避免生銹。根據電源電壓,選擇適合的接線方式接好電機線盒內引線,接線盒內接錯線會導致電機燒毀。要根據電機銘牌上額定電流,建議5A/mm2的電流密度選擇合適尺寸電纜線給電機供電。
KF129R79減速機電機使用變頻器給帶剎車功能的齒輪電機供電時,需將剎車線(黃色)單獨提供交流220V供電,供電應與齒輪減速電機供電同步。直角減速機
KF129R79減速機電機溫度高解決方法:
負載過大/頻繁啟停,選擇大容量電機或減輕負載;
風道阻塞,清除風道油垢;
環境溫度增高,太陽下暴曬/附近有其它高溫熱源,應采用遮陽或降溫措施;
電機缺相運行,電源接觸不良,修復觸點及電源線路;
電機缺相運行,線圈斷路,更換定子線圈;
繞組市間或相間短路,電流猛增,更換定子線圈;
電源電壓波動超10%:電流超標,采用穩壓措施,或選用大容量電機;
接法錯誤,Y接法與△接法用反,接法更正;
定轉子擦,更換電機;
轉子斷條更換轉子。伺服電機減速機
KF129R79減速電機型號:
YQKF127R77-Y100M4,YQKF127R77-Y112M4,YQKF127R77-Y132M4,YQKF127R77-Y63M4,YQKF127R77-Y71M4,YQKF127R77-Y80M4,YQKF127R77-Y90M4,YQKF127RF77-Y0.12KWF,YQKF127RF77-Y0.18KWF,YQKF127RF77-Y0.25KWF,YQKF127RF77-Y0.37KWF,YQKF127RF77-Y0.55KWF,YQKF127RF77-Y0.75KWF,YQKF127RF77-Y1.1KWF,YQKF127RF77-Y1.5KWF,YQKF127RF77-Y100M4,YQKF127RF77-Y112M4,YQKF127RF77-Y132M4,YQKF127RF77-Y2.2KWF,YQKF127RF77-Y3KWF,YQKF127RF77-Y4KWF,YQKF127RF77-Y5.5KWF,YQKF127RF77-Y63M4,YQKF127RF77-Y7.5KWF,YQKF127RF77-Y71M4,YQKF127RF77-Y80M4,YQKF127RF77-Y90M4,YQKF127RF77-YB100L4,YQKF127RF77-YB112M4,YQKF127RF77-YB132M4,YQKF127RF77-YB63M4,YQKF127RF77-YB71M4,YQKF127RF77-YB80M4,YQKF127RF77-YB90S4,YQKF127RF77-YDP100L4,YQKF127RF77-YDP112M4,YQKF127RF77-YDP132M4,YQKF127RF77-YDP63M4,YQKF127RF77-YDP71M4,YQKF127RF77-YDP80M4,YQKF127RF77-YDP90S4,YQKF127RF77-YE100L4,YQKF127RF77-YE112M4,YQKF127RF77-YE132M4,YQKF127RF77-YE63M4,YQKF127RF77-YE71M4,YQKF127RF77-YE80M4,YQKF127RF77-YE90S4,YQKF127RF77-YEJ100L4,YQKF127RF77-YEJ112M4,YQKF127RF77-YEJ132M4,YQKF127RF77-YEJ63M4,YQKF127RF77-YEJ71M4,YQKF127RF77-YEJ80M4,YQKF127RF77-YEJ90S4,YQKF127RF77-YEJB100L4,YQKF127RF77-YEJB112M4,YQKF127RF77-YEJB132M4,YQKF127RF77-YEJB63M4,YQKF127RF77-YEJB71M4,YQKF127RF77-YEJB80M4,YQKF127RF77-YEJB90S4,YQKF127RF77-YP100L4,YQKF127RF77-YP112M4,YQKF127RF77-YP132M4,YQKF127RF77-YP63M4,YQKF127RF77-YP71M4,YQKF127RF77-YP80M4,YQKF127RF77-YP90S4,YQKF127RF77-YPB100L4,YQKF127RF77-YPB112M4,YQKF127RF77-YPB132M4,YQKF127RF77-YPB63M4,YQKF127RF77-YPB71M4,YQKF127RF77-YPB80M4,YQKF127RF77-YPB90S4,YQKF127RF77-YPE100L4,YQKF127RF77-YPE112M4,YQKF127RF77-YPE132M4,YQKF127RF77-YPE63M4,YQKF127RF77-YPE71M4,YQKF127RF77-YPE80M4,YQKF127RF77-YPE90S4,YQKF127RF77-YS100L4,YQKF127RF77-YS112M4,YQKF127RF77-YS132M4,YQKF127RF77-YS63M4,YQKF127RF77-YS71M4,YQKF127RF77-YS80M4,YQKF127RF77-YS90S4,YQKF127RF77-YVB100L4,YQKF127RF77-YVB112M4,YQKF127RF77-YVB132M4,YQKF127RF77-YVB63M4,YQKF127RF77-YVB71M4,YQKF127RF77-YVB80M4,YQKF127RF77-YVB90S4,YQKF127RF77-YVP100L4,YQKF127RF77-YVP112M4,YQKF127RF77-YVP132M4,YQKF127RF77-YVP63M4,YQKF127RF77-YVP71M4,YQKF127RF77-YVP80M4,YQKF127RF77-YVP90S4,YQKF127RF77-YVPEJ100L4,YQKF127RF77-YVPEJ112M4,YQKF127RF77-YVPEJ132M4,YQKF127RF77-YVPEJ63M4,YQKF127RF77-YVPEJ71M4,YQKF127RF77-YVPEJ80M4,YQKF127RF77-YVPEJ90S4,AKF127R77-Y100M4,AKF127R77-Y112M4,AKF127R77-Y132M4,AKF127R77-Y63M4,AKF127R77-Y71M4,AKF127R77-Y80M4,AKF127R77-Y90M4,AKF127RF77-Y0.12KWF,AKF127RF77-Y0.18KWF,AKF127RF77-Y0.25KWF,AKF127RF77-Y0.37KWF,AKF127RF77-Y0.55KWF,AKF127RF77-Y0.75KWF,AKF127RF77-Y1.1KWF,AKF127RF77-Y1.5KWF,AKF127RF77-Y100M4,AKF127RF77-Y112M4,AKF127RF77-Y132M4,AKF127RF77-Y2.2KWF,AKF127RF77-Y3KWF,AKF127RF77-Y4KWF,AKF127RF77-Y5.5KWF,AKF127RF77-Y63M4,AKF127RF77-Y7.5KWF,AKF127RF77-Y71M4,AKF127RF77-Y80M4,AKF127RF77-Y90M4,AKF127RF77-YB100L4,AKF127RF77-YB112M4,AKF127RF77-YB132M4,AKF127RF77-YB63M4,AKF127RF77-YB71M4,AKF127RF77-YB80M4,AKF127RF77-YB90S4,AKF127RF77-YDP100L4,AKF127RF77-YDP112M4,AKF127RF77-YDP132M4,AKF127RF77-YDP63M4,AKF127RF77-YDP71M4,AKF127RF77-YDP80M4,AKF127RF77-YDP90S4,AKF127RF77-YE100L4,AKF127RF77-YE112M4,AKF127RF77-YE132M4,AKF127RF77-YE63M4,AKF127RF77-YE71M4,AKF127RF77-YE80M4,AKF127RF77-YE90S4,AKF127RF77-YEJ100L4,AKF127RF77-YEJ112M4,AKF127RF77-YEJ132M4,AKF127RF77-YEJ63M4,AKF127RF77-YEJ71M4,AKF127RF77-YEJ80M4,AKF127RF77-YEJ90S4,AKF127RF77-YEJB100L4,AKF127RF77-YEJB112M4,AKF127RF77-YEJB132M4,AKF127RF77-YEJB63M4,AKF127RF77-YEJB71M4,AKF127RF77-YEJB80M4,AKF127RF77-YEJB90S4,AKF127RF77-YP100L4,AKF127RF77-YP112M4,AKF127RF77-YP132M4,AKF127RF77-YP63M4,AKF127RF77-YP71M4,AKF127RF77-YP80M4,AKF127RF77-YP90S4,AKF127RF77-YPB100L4,AKF127RF77-YPB112M4,AKF127RF77-YPB132M4,AKF127RF77-YPB63M4,AKF127RF77-YPB71M4,AKF127RF77-YPB80M4,AKF127RF77-YPB90S4,AKF127RF77-YPE100L4,AKF127RF77-YPE112M4,AKF127RF77-YPE132M4,AKF127RF77-YPE63M4,AKF127RF77-YPE71M4,AKF127RF77-YPE80M4,AKF127RF77-YPE90S4,AKF127RF77-YS100L4,AKF127RF77-YS112M4,AKF127RF77-YS132M4,AKF127RF77-YS63M4,AKF127RF77-YS71M4,AKF127RF77-YS80M4,AKF127RF77-YS90S4,AKF127RF77-YVB100L4,AKF127RF77-YVB112M4,AKF127RF77-YVB132M4,AKF127RF77-YVB63M4,AKF127RF77-YVB71M4,AKF127RF77-YVB80M4,AKF127RF77-YVB90S4,AKF127RF77-YVP100L4,AKF127RF77-YVP112M4,AKF127RF77-YVP132M4,AKF127RF77-YVP63M4,AKF127RF77-YVP71M4,AKF127RF77-YVP80M4,AKF127RF77-YVP90S4,AKF127RF77-YVPEJ100L4,AKF127RF77-YVPEJ112M4,AKF127RF77-YVPEJ132M4,AKF127RF77-YVPEJ63M4,AKF127RF77-YVPEJ71M4,AKF127RF77-YVPEJ80M4,AKF127RF77-YVPEJ90S4,SKF127R77-Y100M4,SKF127R77-Y112M4,SKF127R77-Y132M4,SKF127R77-Y63M4,SKF127R77-Y71M4,SKF127R77-Y80M4,SKF127R77-Y90M4,SKF127RF77-Y0.12KWF,SKF127RF77-Y0.18KWF,SKF127RF77-Y0.25KWF,SKF127RF77-Y0.37KWF,SKF127RF77-Y0.55KWF,SKF127RF77-Y0.75KWF,SKF127RF77-Y1.1KWF,SKF127RF77-Y1.5KWF,SKF127RF77-Y100M4,SKF127RF77-Y112M4,SKF127RF77-Y132M4,SKF127RF77-Y2.2KWF,SKF127RF77-Y3KWF,SKF127RF77-Y4KWF,SKF127RF77-Y5.5KWF,SKF127RF77-Y63M4,SKF127RF77-Y7.5KWF,SKF127RF77-Y71M4,SKF127RF77-Y80M4,SKF127RF77-Y90M4,SKF127RF77-YB100L4,SKF127RF77-YB112M4,SKF127RF77-YB132M4,SKF127RF77-YB63M4,SKF127RF77-YB71M4,SKF127RF77-YB80M4,SKF127RF77-YB90S4,SKF127RF77-YDP100L4,SKF127RF77-YDP112M4,SKF127RF77-YDP132M4,SKF127RF77-YDP63M4,SKF127RF77-YDP71M4,SKF127RF77-YDP80M4,SKF127RF77-YDP90S4,SKF127RF77-YE100L4,SKF127RF77-YE112M4,SKF127RF77-YE132M4,SKF127RF77-YE63M4,SKF127RF77-YE71M4,SKF127RF77-YE80M4,SKF127RF77-YE90S4,SKF127RF77-YEJ100L4,SKF127RF77-YEJ112M4,SKF127RF77-YEJ132M4,SKF127RF77-YEJ63M4,SKF127RF77-YEJ71M4,SKF127RF77-YEJ80M4,SKF127RF77-YEJ90S4,SKF127RF77-YEJB100L4,SKF127RF77-YEJB112M4,SKF127RF77-YEJB132M4,SKF127RF77-YEJB63M4,SKF127RF77-YEJB71M4,SKF127RF77-YEJB80M4,SKF127RF77-YEJB90S4,SKF127RF77-YP100L4,SKF127RF77-YP112M4,SKF127RF77-YP132M4,SKF127RF77-YP63M4,SKF127RF77-YP71M4,SKF127RF77-YP80M4,SKF127RF77-YP90S4,SKF127RF77-YPB100L4,SKF127RF77-YPB112M4,SKF127RF77-YPB132M4,SKF127RF77-YPB63M4,SKF127RF77-YPB71M4,SKF127RF77-YPB80M4,SKF127RF77-YPB90S4,SKF127RF77-YPE100L4,SKF127RF77-YPE112M4,SKF127RF77-YPE132M4,SKF127RF77-YPE63M4,SKF127RF77-YPE71M4,SKF127RF77-YPE80M4,SKF127RF77-YPE90S4,SKF127RF77-YS100L4,SKF127RF77-YS112M4,SKF127RF77-YS132M4,SKF127RF77-YS63M4,SKF127RF77-YS71M4,SKF127RF77-YS80M4,SKF127RF77-YS90S4,SKF127RF77-YVB100L4,SKF127RF77-YVB112M4,SKF127RF77-YVB132M4,SKF127RF77-YVB63M4,SKF127RF77-YVB71M4,SKF127RF77-YVB80M4,SKF127RF77-YVB90S4,SKF127RF77-YVP100L4,SKF127RF77-YVP112M4,SKF127RF77-YVP132M4,SKF127RF77-YVP63M4,SKF127RF77-YVP71M4,SKF127RF77-YVP80M4,SKF127RF77-YVP90S4,SKF127RF77-YVPEJ100L4,SKF127RF77-YVPEJ112M4,SKF127RF77-YVPEJ132M4,SKF127RF77-YVPEJ63M4,SKF127RF77-YVPEJ71M4,SKF127RF77-YVPEJ80M4,SKF127RF77-YVPEJ90S4,XDKF127R77-Y100M4,XDKF127R77-Y112M4,XDKF127R77-Y132M4,XDKF127R77-Y63M4,XDKF127R77-Y71M4,XDKF127R77-Y80M4,XDKF127R77-Y90M4,XDKF127RF77-Y0.12KWF,XDKF127RF77-Y0.18KWF,XDKF127RF77-Y0.25KWF,XDKF127RF77-Y0.37KWF,XDKF127RF77-Y0.55KWF,XDKF127RF77-Y0.75KWF,XDKF127RF77-Y1.1KWF,XDKF127RF77-Y1.5KWF,XDKF127RF77-Y100M4,XDKF127RF77-Y112M4,XDKF127RF77-Y132M4,XDKF127RF77-Y2.2KWF,XDKF127RF77-Y3KWF,XDKF127RF77-Y4KWF,XDKF127RF77-Y5.5KWF,XDKF127RF77-Y63M4,XDKF127RF77-Y7.5KWF,XDKF127RF77-Y71M4,XDKF127RF77-Y80M4,XDKF127RF77-Y90M4,XDKF127RF77-YB100L4,XDKF127RF77-YB112M4,XDKF127RF77-YB132M4,XDKF127RF77-YB63M4,XDKF127RF77-YB71M4,XDKF127RF77-YB80M4,XDKF127RF77-YB90S4,XDKF127RF77-YDP100L4,XDKF127RF77-YDP112M4,XDKF127RF77-YDP132M4,XDKF127RF77-YDP63M4,XDKF127RF77-YDP71M4,XDKF127RF77-YDP80M4,XDKF127RF77-YDP90S4,XDKF127RF77-YE100L4,XDKF127RF77-YE112M4,XDKF127RF77-YE132M4,XDKF127RF77-YE63M4,XDKF127RF77-YE71M4,XDKF127RF77-YE80M4,XDKF127RF77-YE90S4,XDKF127RF77-YEJ100L4,XDKF127RF77-YEJ112M4,XDKF127RF77-YEJ132M4,XDKF127RF77-YEJ63M4,XDKF127RF77-YEJ71M4,XDKF127RF77-YEJ80M4,XDKF127RF77-YEJ90S4,XDKF127RF77-YEJB100L4,XDKF127RF77-YEJB112M4,XDKF127RF77-YEJB132M4,XDKF127RF77-YEJB63M4,XDKF127RF77-YEJB71M4,XDKF127RF77-YEJB80M4,XDKF127RF77-YEJB90S4,XDKF127RF77-YP100L4,XDKF127RF77-YP112M4,XDKF127RF77-YP132M4,XDKF127RF77-YP63M4,XDKF127RF77-YP71M4,XDKF127RF77-YP80M4,XDKF127RF77-YP90S4,XDKF127RF77-YPB100L4,XDKF127RF77-YPB112M4,XDKF127RF77-YPB132M4,XDKF127RF77-YPB63M4,XDKF127RF77-YPB71M4,XDKF127RF77-YPB80M4,XDKF127RF77-YPB90S4,XDKF127RF77-YPE100L4,XDKF127RF77-YPE112M4,XDKF127RF77-YPE132M4,XDKF127RF77-YPE63M4,XDKF127RF77-YPE71M4,XDKF127RF77-YPE80M4,XDKF127RF77-YPE90S4,XDKF127RF77-YS100L4,XDKF127RF77-YS112M4,XDKF127RF77-YS132M4,XDKF127RF77-YS63M4,XDKF127RF77-YS71M4,XDKF127RF77-YS80M4,XDKF127RF77-YS90S4,XDKF127RF77-YVB100L4,XDKF127RF77-YVB112M4,XDKF127RF77-YVB132M4,XDKF127RF77-YVB63M4,XDKF127RF77-YVB71M4,XDKF127RF77-YVB80M4,XDKF127RF77-YVB90S4,XDKF127RF77-YVP100L4,XDKF127RF77-YVP112M4,XDKF127RF77-YVP132M4,XDKF127RF77-YVP63M4,XDKF127RF77-YVP71M4,XDKF127RF77-YVP80M4,XDKF127RF77-YVP90S4,XDKF127RF77-YVPEJ100L4,XDKF127RF77-YVPEJ112M4,XDKF127RF77-YVPEJ132M4,XDKF127RF77-YVPEJ63M4,XDKF127RF77-YVPEJ71M4,XDKF127RF77-YVPEJ80M4,XDKF127RF77-YVPEJ90S4,WKF127R77-Y100M4,WKF127R77-Y112M4,WKF127R77-Y132M4,WKF127R77-Y63M4,WKF127R77-Y71M4,WKF127R77-Y80M4,WKF127R77-Y90M4,WKF127RF77-Y0.12KWF,WKF127RF77-Y0.18KWF,WKF127RF77-Y0.25KWF,WKF127RF77-Y0.37KWF,WKF127RF77-Y0.55KWF,WKF127RF77-Y0.75KWF,WKF127RF77-Y1.1KWF,WKF127RF77-Y1.5KWF,WKF127RF77-Y100M4,WKF127RF77-Y112M4,WKF127RF77-Y132M4,WKF127RF77-Y2.2KWF,WKF127RF77-Y3KWF,WKF127RF77-Y4KWF,WKF127RF77-Y5.5KWF,WKF127RF77-Y63M4,WKF127RF77-Y7.5KWF,WKF127RF77-Y71M4,WKF127RF77-Y80M4,WKF127RF77-Y90M4,WKF127RF77-YB100L4,WKF127RF77-YB112M4,WKF127RF77-YB132M4,WKF127RF77-YB63M4,WKF127RF77-YB71M4,WKF127RF77-YB80M4,WKF127RF77-YB90S4,WKF127RF77-YDP100L4,WKF127RF77-YDP112M4,WKF127RF77-YDP132M4,WKF127RF77-YDP63M4,WKF127RF77-YDP71M4,WKF127RF77-YDP80M4,WKF127RF77-YDP90S4,WKF127RF77-YE100L4,WKF127RF77-YE112M4,WKF127RF77-YE132M4,WKF127RF77-YE63M4,WKF127RF77-YE71M4,WKF127RF77-YE80M4,WKF127RF77-YE90S4,WKF127RF77-YEJ100L4,WKF127RF77-YEJ112M4,WKF127RF77-YEJ132M4,WKF127RF77-YEJ63M4,WKF127RF77-YEJ71M4,WKF127RF77-YEJ80M4,WKF127RF77-YEJ90S4,WKF127RF77-YEJB100L4,WKF127RF77-YEJB112M4,WKF127RF77-YEJB132M4,WKF127RF77-YEJB63M4,WKF127RF77-YEJB71M4,WKF127RF77-YEJB80M4,WKF127RF77-YEJB90S4,WKF127RF77-YP100L4,WKF127RF77-YP112M4,WKF127RF77-YP132M4,WKF127RF77-YP63M4,WKF127RF77-YP71M4,WKF127RF77-YP80M4,WKF127RF77-YP90S4,WKF127RF77-YPB100L4,WKF127RF77-YPB112M4,WKF127RF77-YPB132M4,WKF127RF77-YPB63M4,WKF127RF77-YPB71M4,WKF127RF77-YPB80M4,WKF127RF77-YPB90S4,WKF127RF77-YPE100L4,WKF127RF77-YPE112M4,WKF127RF77-YPE132M4,WKF127RF77-YPE63M4,WKF127RF77-YPE71M4,WKF127RF77-YPE80M4,WKF127RF77-YPE90S4,WKF127RF77-YS100L4,WKF127RF77-YS112M4,WKF127RF77-YS132M4,WKF127RF77-YS63M4,WKF127RF77-YS71M4,WKF127RF77-YS80M4,WKF127RF77-YS90S4,WKF127RF77-YVB100L4,WKF127RF77-YVB112M4,WKF127RF77-YVB132M4,WKF127RF77-YVB63M4,WKF127RF77-YVB71M4,WKF127RF77-YVB80M4,WKF127RF77-YVB90S4,WKF127RF77-YVP100L4,WKF127RF77-YVP112M4,WKF127RF77-YVP132M4,WKF127RF77-YVP63M4,WKF127RF77-YVP71M4,WKF127RF77-YVP80M4,WKF127RF77-YVP90S4,WKF127RF77-YVPEJ100L4,WKF127RF77-YVPEJ112M4,WKF127RF77-YVPEJ132M4,WKF127RF77-YVPEJ63M4,WKF127RF77-YVPEJ71M4,WKF127RF77-YVPEJ80M4,WKF127RF77-YVPEJ90S4,JCKF127R77-Y100M4,JCKF127R77-Y112M4,JCKF127R77-Y132M4,JCKF127R77-Y63M4,JCKF127R77-Y71M4,JCKF127R77-Y80M4,JCKF127R77-Y90M4,JCKF127RF77-Y0.12KWF,JCKF127RF77-Y0.18KWF,JCKF127RF77-Y0.25KWF,JCKF127RF77-Y0.37KWF,JCKF127RF77-Y0.55KWF,JCKF127RF77-Y0.75KWF,JCKF127RF77-Y1.1KWF,JCKF127RF77-Y1.5KWF,JCKF127RF77-Y100M4,JCKF127RF77-Y112M4,JCKF127RF77-Y132M4,JCKF127RF77-Y2.2KWF,JCKF127RF77-Y3KWF,JCKF127RF77-Y4KWF,JCKF127RF77-Y5.5KWF,JCKF127RF77-Y63M4,JCKF127RF77-Y7.5KWF,JCKF127RF77-Y71M4,JCKF127RF77-Y80M4,JCKF127RF77-Y90M4,JCKF127RF77-YB100L4,JCKF127RF77-YB112M4,JCKF127RF77-YB132M4,JCKF127RF77-YB63M4,JCKF127RF77-YB71M4,JCKF127RF77-YB80M4,JCKF127RF77-YB90S4,JCKF127RF77-YDP100L4,JCKF127RF77-YDP112M4,JCKF127RF77-YDP132M4,JCKF127RF77-YDP63M4,JCKF127RF77-YDP71M4,JCKF127RF77-YDP80M4,JCKF127RF77-YDP90S4,JCKF127RF77-YE100L4,JCKF127RF77-YE112M4,JCKF127RF77-YE132M4,JCKF127RF77-YE63M4,JCKF127RF77-YE71M4,JCKF127RF77-YE80M4,JCKF127RF77-YE90S4,JCKF127RF77-YEJ100L4,JCKF127RF77-YEJ112M4,JCKF127RF77-YEJ132M4,JCKF127RF77-YEJ63M4,JCKF127RF77-YEJ71M4,JCKF127RF77-YEJ80M4,JCKF127RF77-YEJ90S4,JCKF127RF77-YEJB100L4,JCKF127RF77-YEJB112M4,JCKF127RF77-YEJB132M4,JCKF127RF77-YEJB63M4,JCKF127RF77-YEJB71M4,JCKF127RF77-YEJB80M4,JCKF127RF77-YEJB90S4,JCKF127RF77-YP100L4,JCKF127RF77-YP112M4,JCKF127RF77-YP132M4,JCKF127RF77-YP63M4,JCKF127RF77-YP71M4,JCKF127RF77-YP80M4,JCKF127RF77-YP90S4,JCKF127RF77-YPB100L4,JCKF127RF77-YPB112M4,JCKF127RF77-YPB132M4,JCKF127RF77-YPB63M4,JCKF127RF77-YPB71M4,JCKF127RF77-YPB80M4,JCKF127RF77-YPB90S4,JCKF127RF77-YPE100L4,JCKF127RF77-YPE112M4,JCKF127RF77-YPE132M4,JCKF127RF77-YPE63M4,JCKF127RF77-YPE71M4,JCKF127RF77-YPE80M4,JCKF127RF77-YPE90S4,JCKF127RF77-YS100L4,JCKF127RF77-YS112M4,JCKF127RF77-YS132M4,JCKF127RF77-YS63M4,JCKF127RF77-YS71M4,JCKF127RF77-YS80M4,JCKF127RF77-YS90S4,JCKF127RF77-YVB100L4,JCKF127RF77-YVB112M4,JCKF127RF77-YVB132M4,JCKF127RF77-YVB63M4,JCKF127RF77-YVB71M4,JCKF127RF77-YVB80M4,JCKF127RF77-YVB90S4,JCKF127RF77-YVP100L4,JCKF127RF77-YVP112M4,JCKF127RF77-YVP132M4,JCKF127RF77-YVP63M4,JCKF127RF77-YVP71M4,JCKF127RF77-YVP80M4,JCKF127RF77-YVP90S4,JCKF127RF77-YVPEJ100L4,JCKF127RF77-YVPEJ112M4,JCKF127RF77-YVPEJ132M4,JCKF127RF77-YVPEJ63M4,JCKF127RF77-YVPEJ71M4,JCKF127RF77-YVPEJ80M4,JCKF127RF77-YVPEJ90S4,NKF127R77-Y100M4,NKF127R77-Y112M4,NKF127R77-Y132M4,NKF127R77-Y63M4,NKF127R77-Y71M4,NKF127R77-Y80M4,NKF127R77-Y90M4,NKF127RF77-Y0.12KWF,NKF127RF77-Y0.18KWF,NKF127RF77-Y0.25KWF,NKF127RF77-Y0.37KWF,NKF127RF77-Y0.55KWF,NKF127RF77-Y0.75KWF,NKF127RF77-Y1.1KWF,NKF127RF77-Y1.5KWF,NKF127RF77-Y100M4,NKF127RF77-Y112M4,NKF127RF77-Y132M4,NKF127RF77-Y2.2KWF,NKF127RF77-Y3KWF,NKF127RF77-Y4KWF,NKF127RF77-Y5.5KWF,NKF127RF77-Y63M4,NKF127RF77-Y7.5KWF,NKF127RF77-Y71M4,NKF127RF77-Y80M4,NKF127RF77-Y90M4,NKF127RF77-YB100L4,NKF127RF77-YB112M4,NKF127RF77-YB132M4,NKF127RF77-YB63M4,NKF127RF77-YB71M4,NKF127RF77-YB80M4,NKF127RF77-YB90S4,NKF127RF77-YDP100L4,NKF127RF77-YDP112M4,NKF127RF77-YDP132M4,NKF127RF77-YDP63M4,NKF127RF77-YDP71M4,NKF127RF77-YDP80M4,NKF127RF77-YDP90S4,NKF127RF77-YE100L4,NKF127RF77-YE112M4,NKF127RF77-YE132M4,NKF127RF77-YE63M4,NKF127RF77-YE71M4,NKF127RF77-YE80M4,NKF127RF77-YE90S4,NKF127RF77-YEJ100L4,NKF127RF77-YEJ112M4,NKF127RF77-YEJ132M4,NKF127RF77-YEJ63M4,NKF127RF77-YEJ71M4,NKF127RF77-YEJ80M4,NKF127RF77-YEJ90S4,NKF127RF77-YEJB100L4,NKF127RF77-YEJB112M4,NKF127RF77-YEJB132M4,NKF127RF77-YEJB63M4,NKF127RF77-YEJB71M4,NKF127RF77-YEJB80M4,NKF127RF77-YEJB90S4,NKF127RF77-YP100L4,NKF127RF77-YP112M4,NKF127RF77-YP132M4,NKF127RF77-YP63M4,NKF127RF77-YP71M4,NKF127RF77-YP80M4,NKF127RF77-YP90S4,NKF127RF77-YPB100L4,NKF127RF77-YPB112M4,NKF127RF77-YPB132M4,NKF127RF77-YPB63M4,NKF127RF77-YPB71M4,NKF127RF77-YPB80M4,NKF127RF77-YPB90S4,NKF127RF77-YPE100L4,NKF127RF77-YPE112M4,NKF127RF77-YPE132M4,NKF127RF77-YPE63M4,NKF127RF77-YPE71M4,NKF127RF77-YPE80M4,NKF127RF77-YPE90S4,NKF127RF77-YS100L4,NKF127RF77-YS112M4,NKF127RF77-YS132M4,NKF127RF77-YS63M4,NKF127RF77-YS71M4,NKF127RF77-YS80M4,NKF127RF77-YS90S4,NKF127RF77-YVB100L4,NKF127RF77-YVB112M4,NKF127RF77-YVB132M4,NKF127RF77-YVB63M4,NKF127RF77-YVB71M4,NKF127RF77-YVB80M4,NKF127RF77-YVB90S4,NKF127RF77-YVP100L4,NKF127RF77-YVP112M4,NKF127RF77-YVP132M4,NKF127RF77-YVP63M4,NKF127RF77-YVP71M4,NKF127RF77-YVP80M4,NKF127RF77-YVP90S4,NKF127RF77-YVPEJ100L4,NKF127RF77-YVPEJ112M4,NKF127RF77-YVPEJ132M4,NKF127RF77-YVPEJ63M4,NKF127RF77-YVPEJ71M4,NKF127RF77-YVPEJ80M4,NKF127RF77-YVPEJ90S4,KWF127RW77-Y100M4,KWF127RW77-Y112M4,KWF127RW77-Y132M4,KWF127RW77-Y63M4,KWF127RW77-Y71M4,KWF127RW77-Y80M4,KWF127RW77-Y90M4,KWF127RWF77-Y0.12KWF,KWF127RWF77-Y0.18KWF,KWF127RWF77-Y0.25KWF,KWF127RWF77-Y0.37KWF,KWF127RWF77-Y0.55KWF,KWF127RWF77-Y0.75KWF,KWF127RWF77-Y1.1KWF,KWF127RWF77-Y1.5KWF,KWF127RWF77-Y100M4,KWF127RWF77-Y112M4,KWF127RWF77-Y132M4,KWF127RWF77-Y2.2KWF,KWF127RWF77-Y3KWF,KWF127RWF77-Y4KWF,KWF127RWF77-Y5.5KWF,KWF127RWF77-Y63M4,KWF127RWF77-Y7.5KWF,KWF127RWF77-Y71M4,KWF127RWF77-Y80M4,KWF127RWF77-Y90M4,KWF127RWF77-YB100L4,KWF127RWF77-YB112M4,KWF127RWF77-YB132M4,KWF127RWF77-YB63M4,KWF127RWF77-YB71M4,KWF127RWF77-YB80M4,KWF127RWF77-YB90S4,KWF127RWF77-YDP100L4,KWF127RWF77-YDP112M4,KWF127RWF77-YDP132M4,KWF127RWF77-YDP63M4,KWF127RWF77-YDP71M4,KWF127RWF77-YDP80M4,KWF127RWF77-YDP90S4,KWF127RWF77-YE100L4,KWF127RWF77-YE112M4,KWF127RWF77-YE132M4,KWF127RWF77-YE63M4,KWF127RWF77-YE71M4,KWF127RWF77-YE80M4,KWF127RWF77-YE90S4,KWF127RWF77-YEJ100L4,KWF127RWF77-YEJ112M4,KWF127RWF77-YEJ132M4,KWF127RWF77-YEJ63M4,KWF127RWF77-YEJ71M4,KWF127RWF77-YEJ80M4,KWF127RWF77-YEJ90S4,KWF127RWF77-YEJB100L4,KWF127RWF77-YEJB112M4,KWF127RWF77-YEJB132M4,KWF127RWF77-YEJB63M4,KWF127RWF77-YEJB71M4,KWF127RWF77-YEJB80M4,KWF127RWF77-YEJB90S4,KWF127RWF77-YP100L4,KWF127RWF77-YP112M4,KWF127RWF77-YP132M4,KWF127RWF77-YP63M4,KWF127RWF77-YP71M4,KWF127RWF77-YP80M4,KWF127RWF77-YP90S4,KWF127RWF77-YPB100L4,KWF127RWF77-YPB112M4,KWF127RWF77-YPB132M4,KWF127RWF77-YPB63M4,KWF127RWF77-YPB71M4,KWF127RWF77-YPB80M4,KWF127RWF77-YPB90S4,KWF127RWF77-YPE100L4,KWF127RWF77-YPE112M4,KWF127RWF77-YPE132M4,KWF127RWF77-YPE63M4,KWF127RWF77-YPE71M4,KWF127RWF77-YPE80M4,KWF127RWF77-YPE90S4,KWF127RWF77-YS100L4,KWF127RWF77-YS112M4,KWF127RWF77-YS132M4,KWF127RWF77-YS63M4,KWF127RWF77-YS71M4,KWF127RWF77-YS80M4,KWF127RWF77-YS90S4,KWF127RWF77-YVB100L4,KWF127RWF77-YVB112M4,KWF127RWF77-YVB132M4,KWF127RWF77-YVB63M4,KWF127RWF77-YVB71M4,KWF127RWF77-YVB80M4,KWF127RWF77-YVB90S4,KWF127RWF77-YVP100L4,KWF127RWF77-YVP112M4,KWF127RWF77-YVP132M4,KWF127RWF77-YVP63M4,KWF127RWF77-YVP71M4,KWF127RWF77-YVP80M4,KWF127RWF77-YVP90S4,KWF127RWF77-YVPEJ100L4,KWF127RWF77-YVPEJ112M4,KWF127RWF77-YVPEJ132M4,KWF127RWF77-YVPEJ63M4,KWF127RWF77-YVPEJ71M4,KWF127RWF77-YVPEJ80M4,KWF127RWF77-YVPEJ90S4,KF129R79-Y100M4,KF129R79-Y112M4,KF129R79-Y132M4,KF129R79-Y63M4,KF129R79-Y71M4,KF129R79-Y80M4,KF129R79-Y90M4,KF129RF79-Y0.12KWF,KF129RF79-Y0.18KWF,KF129RF79-Y0.25KWF,KF129RF79-Y0.37KWF,KF129RF79-Y0.55KWF,KF129RF79-Y0.75KWF,KF129RF79-Y1.1KWF,KF129RF79-Y1.5KWF,KF129RF79-Y100M4,KF129RF79-Y112M4,KF129RF79-Y132M4,KF129RF79-Y2.2KWF,KF129RF79-Y3KWF,KF129RF79-Y4KWF,KF129RF79-Y5.5KWF,KF129RF79-Y63M4,KF129RF79-Y7.5KWF,KF129RF79-Y71M4,KF129RF79-Y80M4,KF129RF79-Y90M4,KF129RF79-YB100L4,KF129RF79-YB112M4,KF129RF79-YB132M4,KF129RF79-YB63M4,KF129RF79-YB71M4,KF129RF79-YB80M4,KF129RF79-YB90S4,KF129RF79-YDP100L4,KF129RF79-YDP112M4,KF129RF79-YDP132M4,KF129RF79-YDP63M4,KF129RF79-YDP71M4,KF129RF79-YDP80M4,KF129RF79-YDP90S4,KF129RF79-YE100L4,KF129RF79-YE112M4,KF129RF79-YE132M4,KF129RF79-YE63M4,KF129RF79-YE71M4,KF129RF79-YE80M4,KF129RF79-YE90S4,KF129RF79-YEJ100L4,KF129RF79-YEJ112M4,KF129RF79-YEJ132M4,KF129RF79-YEJ63M4,KF129RF79-YEJ71M4,KF129RF79-YEJ80M4,KF129RF79-YEJ90S4,KF129RF79-YEJB100L4,KF129RF79-YEJB112M4,KF129RF79-YEJB132M4,KF129RF79-YEJB63M4,KF129RF79-YEJB71M4,KF129RF79-YEJB80M4,KF129RF79-YEJB90S4,KF129RF79-YP100L4,KF129RF79-YP112M4,KF129RF79-YP132M4,KF129RF79-YP63M4,KF129RF79-YP71M4,KF129RF79-YP80M4,KF129RF79-YP90S4,KF129RF79-YPB100L4,KF129RF79-YPB112M4,KF129RF79-YPB132M4,KF129RF79-YPB63M4,KF129RF79-YPB71M4,KF129RF79-YPB80M4,KF129RF79-YPB90S4,KF129RF79-YPE100L4,KF129RF79-YPE112M4,KF129RF79-YPE132M4,KF129RF79-YPE63M4,KF129RF79-YPE71M4,KF129RF79-YPE80M4,KF129RF79-YPE90S4,KF129RF79-YS100L4,KF129RF79-YS112M4,KF129RF79-YS132M4,KF129RF79-YS63M4,KF129RF79-YS71M4,KF129RF79-YS80M4,KF129RF79-YS90S4,KF129RF79-YVB100L4,KF129RF79-YVB112M4,KF129RF79-YVB132M4,KF129RF79-YVB63M4,KF129RF79-YVB71M4,KF129RF79-YVB80M4,KF129RF79-YVB90S4,KF129RF79-YVP100L4,KF129RF79-YVP112M4,KF129RF79-YVP132M4,KF129RF79-YVP63M4,KF129RF79-YVP71M4,KF129RF79-YVP80M4,KF129RF79-YVP90S4,KF129RF79-YVPEJ100L4,KF129RF79-YVPEJ112M4,KF129RF79-YVPEJ132M4,KF129RF79-YVPEJ63M4,KF129RF79-YVPEJ71M4,KF129RF79-YVPEJ80M4,KF129RF79-YVPEJ90S4。
KF129R79減速電機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kfxiliejiansuji-cn.html
推薦型號:K129減速機
關鍵詞:帶伺服減速機_伺服電機減速機_伺服電機減速器_伺服減速器_大扭力減速機_大扭力減速器_交流減速機_GKF系列減速機_KF系列減速機_伺服電機減速機一體機_伺服減速機一體機_KF系列減速器
KF系列齒輪減速電機型號:KF39減速機,KF49減速機,KF59減速機,KF69減速機,KF79減速機,KF89減速機,KF99減速機,KF109減速機,KF129減速機,KF159減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
