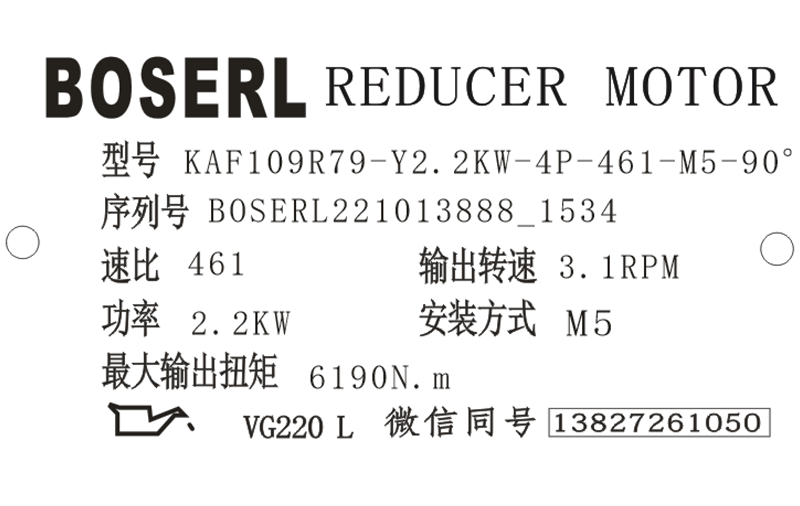

KAF109R79減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KAF109R79減速機選型樣本。
KAF109R79-Y2.2KW-4P-461-M5-90°
KAF/R:系列代號
109/79:減速機規格代號
Y:電機
2.2KW:電機功率
4P:電機級數
461:減速機傳動比
M5:減速機安裝位置
90°:接線盒位置直角減速機
KAF109R79減速機電機使用需知:
使用中電源電壓變動超過10%時,有可能燒毀電機,同時伴有出力扭力降低或異常;電機超負荷運行時有可能燒毀,請在運行初次測試電機電流是否在額定電流值內。質保:本公司同意在正常使用情況下,如有因零件瑕疵或制造不良發生損壞,可于出廠后一年半內(18個月內)免費維修或以新品更換之;若因客戶使用不當,擅自加裝配件或自已變更機體等所造成之損壞維修,使用者應自行負擔零件維修費用;若超過質保期產品需要維修的,我司將收取維修費用;自然天災或操作環境惡劣所造成之損壞,雖于保修期內,恕難受理理賠;(5).若無法取得出貨日期證明時,以銘牌上制造日期為準;本公司對產品所負責任,不超過產品原初售價。齒輪減速電機
KAF109R79減速機電機剎車器不動作解決方法:
KAF109R79減速機電機維護和故障排除必須由專業人員用適當?shù)墓ぞ吆驮O備進行。前提:發生故障時,先對照如下目錄的故障排除表進行處理,不能自行處理的,請聯系當?shù)亟涗N商解決;本機故障,換用零部件或咨詢時,請將銘版上的參數確認后再進行聯系:完整型號、馬力、制造編號、生產序列號、規格與產品代碼等。二級減速機
故障 | 可能的原因 | 解決方法 |
剎車器不動作 | 未供電源 | 供應電源 |
換新來令片 | 換新來令片 |
調整間隙 | 調整間隙 |
提供正確電壓 | 提供正確電壓 |
電源供應器換新 | 電源供應器換新 |
清潔零件 | 清潔零件 |
使用正確電壓 | 使用正確電壓 |
重新接線 | 重新接線 |
清潔零件/放大間隙 | 清潔零件/放大間隙 |
更換剎車線圈 | 更換剎車線圈 |
KAF109R79減速電機型號:
YQKAF107R77-Y100M4,YQKAF107R77-Y112M4,YQKAF107R77-Y132M4,YQKAF107R77-Y63M4,YQKAF107R77-Y71M4,YQKAF107R77-Y80M4,YQKAF107R77-Y90M4,YQKAF107RF77-Y0.12KWAF,YQKAF107RF77-Y0.18KWAF,YQKAF107RF77-Y0.25KWAF,YQKAF107RF77-Y0.37KWAF,YQKAF107RF77-Y0.55KWAF,YQKAF107RF77-Y0.75KWAF,YQKAF107RF77-Y1.1KWAF,YQKAF107RF77-Y1.5KWAF,YQKAF107RF77-Y100M4,YQKAF107RF77-Y112M4,YQKAF107RF77-Y132M4,YQKAF107RF77-Y2.2KWAF,YQKAF107RF77-Y3KWAF,YQKAF107RF77-Y4KWAF,YQKAF107RF77-Y5.5KWAF,YQKAF107RF77-Y63M4,YQKAF107RF77-Y7.5KWAF,YQKAF107RF77-Y71M4,YQKAF107RF77-Y80M4,YQKAF107RF77-Y90M4,YQKAF107RF77-YB100L4,YQKAF107RF77-YB112M4,YQKAF107RF77-YB132M4,YQKAF107RF77-YB63M4,YQKAF107RF77-YB71M4,YQKAF107RF77-YB80M4,YQKAF107RF77-YB90S4,YQKAF107RF77-YDP100L4,YQKAF107RF77-YDP112M4,YQKAF107RF77-YDP132M4,YQKAF107RF77-YDP63M4,YQKAF107RF77-YDP71M4,YQKAF107RF77-YDP80M4,YQKAF107RF77-YDP90S4,YQKAF107RF77-YE100L4,YQKAF107RF77-YE112M4,YQKAF107RF77-YE132M4,YQKAF107RF77-YE63M4,YQKAF107RF77-YE71M4,YQKAF107RF77-YE80M4,YQKAF107RF77-YE90S4,YQKAF107RF77-YEJ100L4,YQKAF107RF77-YEJ112M4,YQKAF107RF77-YEJ132M4,YQKAF107RF77-YEJ63M4,YQKAF107RF77-YEJ71M4,YQKAF107RF77-YEJ80M4,YQKAF107RF77-YEJ90S4,YQKAF107RF77-YEJB100L4,YQKAF107RF77-YEJB112M4,YQKAF107RF77-YEJB132M4,YQKAF107RF77-YEJB63M4,YQKAF107RF77-YEJB71M4,YQKAF107RF77-YEJB80M4,YQKAF107RF77-YEJB90S4,YQKAF107RF77-YP100L4,YQKAF107RF77-YP112M4,YQKAF107RF77-YP132M4,YQKAF107RF77-YP63M4,YQKAF107RF77-YP71M4,YQKAF107RF77-YP80M4,YQKAF107RF77-YP90S4,YQKAF107RF77-YPB100L4,YQKAF107RF77-YPB112M4,YQKAF107RF77-YPB132M4,YQKAF107RF77-YPB63M4,YQKAF107RF77-YPB71M4,YQKAF107RF77-YPB80M4,YQKAF107RF77-YPB90S4,YQKAF107RF77-YPE100L4,YQKAF107RF77-YPE112M4,YQKAF107RF77-YPE132M4,YQKAF107RF77-YPE63M4,YQKAF107RF77-YPE71M4,YQKAF107RF77-YPE80M4,YQKAF107RF77-YPE90S4,YQKAF107RF77-YS100L4,YQKAF107RF77-YS112M4,YQKAF107RF77-YS132M4,YQKAF107RF77-YS63M4,YQKAF107RF77-YS71M4,YQKAF107RF77-YS80M4,YQKAF107RF77-YS90S4,YQKAF107RF77-YVB100L4,YQKAF107RF77-YVB112M4,YQKAF107RF77-YVB132M4,YQKAF107RF77-YVB63M4,YQKAF107RF77-YVB71M4,YQKAF107RF77-YVB80M4,YQKAF107RF77-YVB90S4,YQKAF107RF77-YVP100L4,YQKAF107RF77-YVP112M4,YQKAF107RF77-YVP132M4,YQKAF107RF77-YVP63M4,YQKAF107RF77-YVP71M4,YQKAF107RF77-YVP80M4,YQKAF107RF77-YVP90S4,YQKAF107RF77-YVPEJ100L4,YQKAF107RF77-YVPEJ112M4,YQKAF107RF77-YVPEJ132M4,YQKAF107RF77-YVPEJ63M4,YQKAF107RF77-YVPEJ71M4,YQKAF107RF77-YVPEJ80M4,YQKAF107RF77-YVPEJ90S4,AKAF107R77-Y100M4,AKAF107R77-Y112M4,AKAF107R77-Y132M4,AKAF107R77-Y63M4,AKAF107R77-Y71M4,AKAF107R77-Y80M4,AKAF107R77-Y90M4,AKAF107RF77-Y0.12KWAF,AKAF107RF77-Y0.18KWAF,AKAF107RF77-Y0.25KWAF,AKAF107RF77-Y0.37KWAF,AKAF107RF77-Y0.55KWAF,AKAF107RF77-Y0.75KWAF,AKAF107RF77-Y1.1KWAF,AKAF107RF77-Y1.5KWAF,AKAF107RF77-Y100M4,AKAF107RF77-Y112M4,AKAF107RF77-Y132M4,AKAF107RF77-Y2.2KWAF,AKAF107RF77-Y3KWAF,AKAF107RF77-Y4KWAF,AKAF107RF77-Y5.5KWAF,AKAF107RF77-Y63M4,AKAF107RF77-Y7.5KWAF,AKAF107RF77-Y71M4,AKAF107RF77-Y80M4,AKAF107RF77-Y90M4,AKAF107RF77-YB100L4,AKAF107RF77-YB112M4,AKAF107RF77-YB132M4,AKAF107RF77-YB63M4,AKAF107RF77-YB71M4,AKAF107RF77-YB80M4,AKAF107RF77-YB90S4,AKAF107RF77-YDP100L4,AKAF107RF77-YDP112M4,AKAF107RF77-YDP132M4,AKAF107RF77-YDP63M4,AKAF107RF77-YDP71M4,AKAF107RF77-YDP80M4,AKAF107RF77-YDP90S4,AKAF107RF77-YE100L4,AKAF107RF77-YE112M4,AKAF107RF77-YE132M4,AKAF107RF77-YE63M4,AKAF107RF77-YE71M4,AKAF107RF77-YE80M4,AKAF107RF77-YE90S4,AKAF107RF77-YEJ100L4,AKAF107RF77-YEJ112M4,AKAF107RF77-YEJ132M4,AKAF107RF77-YEJ63M4,AKAF107RF77-YEJ71M4,AKAF107RF77-YEJ80M4,AKAF107RF77-YEJ90S4,AKAF107RF77-YEJB100L4,AKAF107RF77-YEJB112M4,AKAF107RF77-YEJB132M4,AKAF107RF77-YEJB63M4,AKAF107RF77-YEJB71M4,AKAF107RF77-YEJB80M4,AKAF107RF77-YEJB90S4,AKAF107RF77-YP100L4,AKAF107RF77-YP112M4,AKAF107RF77-YP132M4,AKAF107RF77-YP63M4,AKAF107RF77-YP71M4,AKAF107RF77-YP80M4,AKAF107RF77-YP90S4,AKAF107RF77-YPB100L4,AKAF107RF77-YPB112M4,AKAF107RF77-YPB132M4,AKAF107RF77-YPB63M4,AKAF107RF77-YPB71M4,AKAF107RF77-YPB80M4,AKAF107RF77-YPB90S4,AKAF107RF77-YPE100L4,AKAF107RF77-YPE112M4,AKAF107RF77-YPE132M4,AKAF107RF77-YPE63M4,AKAF107RF77-YPE71M4,AKAF107RF77-YPE80M4,AKAF107RF77-YPE90S4,AKAF107RF77-YS100L4,AKAF107RF77-YS112M4,AKAF107RF77-YS132M4,AKAF107RF77-YS63M4,AKAF107RF77-YS71M4,AKAF107RF77-YS80M4,AKAF107RF77-YS90S4,AKAF107RF77-YVB100L4,AKAF107RF77-YVB112M4,AKAF107RF77-YVB132M4,AKAF107RF77-YVB63M4,AKAF107RF77-YVB71M4,AKAF107RF77-YVB80M4,AKAF107RF77-YVB90S4,AKAF107RF77-YVP100L4,AKAF107RF77-YVP112M4,AKAF107RF77-YVP132M4,AKAF107RF77-YVP63M4,AKAF107RF77-YVP71M4,AKAF107RF77-YVP80M4,AKAF107RF77-YVP90S4,AKAF107RF77-YVPEJ100L4,AKAF107RF77-YVPEJ112M4,AKAF107RF77-YVPEJ132M4,AKAF107RF77-YVPEJ63M4,AKAF107RF77-YVPEJ71M4,AKAF107RF77-YVPEJ80M4,AKAF107RF77-YVPEJ90S4,SKAF107R77-Y100M4,SKAF107R77-Y112M4,SKAF107R77-Y132M4,SKAF107R77-Y63M4,SKAF107R77-Y71M4,SKAF107R77-Y80M4,SKAF107R77-Y90M4,SKAF107RF77-Y0.12KWAF,SKAF107RF77-Y0.18KWAF,SKAF107RF77-Y0.25KWAF,SKAF107RF77-Y0.37KWAF,SKAF107RF77-Y0.55KWAF,SKAF107RF77-Y0.75KWAF,SKAF107RF77-Y1.1KWAF,SKAF107RF77-Y1.5KWAF,SKAF107RF77-Y100M4,SKAF107RF77-Y112M4,SKAF107RF77-Y132M4,SKAF107RF77-Y2.2KWAF,SKAF107RF77-Y3KWAF,SKAF107RF77-Y4KWAF,SKAF107RF77-Y5.5KWAF,SKAF107RF77-Y63M4,SKAF107RF77-Y7.5KWAF,SKAF107RF77-Y71M4,SKAF107RF77-Y80M4,SKAF107RF77-Y90M4,SKAF107RF77-YB100L4,SKAF107RF77-YB112M4,SKAF107RF77-YB132M4,SKAF107RF77-YB63M4,SKAF107RF77-YB71M4,SKAF107RF77-YB80M4,SKAF107RF77-YB90S4,SKAF107RF77-YDP100L4,SKAF107RF77-YDP112M4,SKAF107RF77-YDP132M4,SKAF107RF77-YDP63M4,SKAF107RF77-YDP71M4,SKAF107RF77-YDP80M4,SKAF107RF77-YDP90S4,SKAF107RF77-YE100L4,SKAF107RF77-YE112M4,SKAF107RF77-YE132M4,SKAF107RF77-YE63M4,SKAF107RF77-YE71M4,SKAF107RF77-YE80M4,SKAF107RF77-YE90S4,SKAF107RF77-YEJ100L4,SKAF107RF77-YEJ112M4,SKAF107RF77-YEJ132M4,SKAF107RF77-YEJ63M4,SKAF107RF77-YEJ71M4,SKAF107RF77-YEJ80M4,SKAF107RF77-YEJ90S4,SKAF107RF77-YEJB100L4,SKAF107RF77-YEJB112M4,SKAF107RF77-YEJB132M4,SKAF107RF77-YEJB63M4,SKAF107RF77-YEJB71M4,SKAF107RF77-YEJB80M4,SKAF107RF77-YEJB90S4,SKAF107RF77-YP100L4,SKAF107RF77-YP112M4,SKAF107RF77-YP132M4,SKAF107RF77-YP63M4,SKAF107RF77-YP71M4,SKAF107RF77-YP80M4,SKAF107RF77-YP90S4,SKAF107RF77-YPB100L4,SKAF107RF77-YPB112M4,SKAF107RF77-YPB132M4,SKAF107RF77-YPB63M4,SKAF107RF77-YPB71M4,SKAF107RF77-YPB80M4,SKAF107RF77-YPB90S4,SKAF107RF77-YPE100L4,SKAF107RF77-YPE112M4,SKAF107RF77-YPE132M4,SKAF107RF77-YPE63M4,SKAF107RF77-YPE71M4,SKAF107RF77-YPE80M4,SKAF107RF77-YPE90S4,SKAF107RF77-YS100L4,SKAF107RF77-YS112M4,SKAF107RF77-YS132M4,SKAF107RF77-YS63M4,SKAF107RF77-YS71M4,SKAF107RF77-YS80M4,SKAF107RF77-YS90S4,SKAF107RF77-YVB100L4,SKAF107RF77-YVB112M4,SKAF107RF77-YVB132M4,SKAF107RF77-YVB63M4,SKAF107RF77-YVB71M4,SKAF107RF77-YVB80M4,SKAF107RF77-YVB90S4,SKAF107RF77-YVP100L4,SKAF107RF77-YVP112M4,SKAF107RF77-YVP132M4,SKAF107RF77-YVP63M4,SKAF107RF77-YVP71M4,SKAF107RF77-YVP80M4,SKAF107RF77-YVP90S4,SKAF107RF77-YVPEJ100L4,SKAF107RF77-YVPEJ112M4,SKAF107RF77-YVPEJ132M4,SKAF107RF77-YVPEJ63M4,SKAF107RF77-YVPEJ71M4,SKAF107RF77-YVPEJ80M4,SKAF107RF77-YVPEJ90S4,XDKAF107R77-Y100M4,XDKAF107R77-Y112M4,XDKAF107R77-Y132M4,XDKAF107R77-Y63M4,XDKAF107R77-Y71M4,XDKAF107R77-Y80M4,XDKAF107R77-Y90M4,XDKAF107RF77-Y0.12KWAF,XDKAF107RF77-Y0.18KWAF,XDKAF107RF77-Y0.25KWAF,XDKAF107RF77-Y0.37KWAF,XDKAF107RF77-Y0.55KWAF,XDKAF107RF77-Y0.75KWAF,XDKAF107RF77-Y1.1KWAF,XDKAF107RF77-Y1.5KWAF,XDKAF107RF77-Y100M4,XDKAF107RF77-Y112M4,XDKAF107RF77-Y132M4,XDKAF107RF77-Y2.2KWAF,XDKAF107RF77-Y3KWAF,XDKAF107RF77-Y4KWAF,XDKAF107RF77-Y5.5KWAF,XDKAF107RF77-Y63M4,XDKAF107RF77-Y7.5KWAF,XDKAF107RF77-Y71M4,XDKAF107RF77-Y80M4,XDKAF107RF77-Y90M4,XDKAF107RF77-YB100L4,XDKAF107RF77-YB112M4,XDKAF107RF77-YB132M4,XDKAF107RF77-YB63M4,XDKAF107RF77-YB71M4,XDKAF107RF77-YB80M4,XDKAF107RF77-YB90S4,XDKAF107RF77-YDP100L4,XDKAF107RF77-YDP112M4,XDKAF107RF77-YDP132M4,XDKAF107RF77-YDP63M4,XDKAF107RF77-YDP71M4,XDKAF107RF77-YDP80M4,XDKAF107RF77-YDP90S4,XDKAF107RF77-YE100L4,XDKAF107RF77-YE112M4,XDKAF107RF77-YE132M4,XDKAF107RF77-YE63M4,XDKAF107RF77-YE71M4,XDKAF107RF77-YE80M4,XDKAF107RF77-YE90S4,XDKAF107RF77-YEJ100L4,XDKAF107RF77-YEJ112M4,XDKAF107RF77-YEJ132M4,XDKAF107RF77-YEJ63M4,XDKAF107RF77-YEJ71M4,XDKAF107RF77-YEJ80M4,XDKAF107RF77-YEJ90S4,XDKAF107RF77-YEJB100L4,XDKAF107RF77-YEJB112M4,XDKAF107RF77-YEJB132M4,XDKAF107RF77-YEJB63M4,XDKAF107RF77-YEJB71M4,XDKAF107RF77-YEJB80M4,XDKAF107RF77-YEJB90S4,XDKAF107RF77-YP100L4,XDKAF107RF77-YP112M4,XDKAF107RF77-YP132M4,XDKAF107RF77-YP63M4,XDKAF107RF77-YP71M4,XDKAF107RF77-YP80M4,XDKAF107RF77-YP90S4,XDKAF107RF77-YPB100L4,XDKAF107RF77-YPB112M4,XDKAF107RF77-YPB132M4,XDKAF107RF77-YPB63M4,XDKAF107RF77-YPB71M4,XDKAF107RF77-YPB80M4,XDKAF107RF77-YPB90S4,XDKAF107RF77-YPE100L4,XDKAF107RF77-YPE112M4,XDKAF107RF77-YPE132M4,XDKAF107RF77-YPE63M4,XDKAF107RF77-YPE71M4,XDKAF107RF77-YPE80M4,XDKAF107RF77-YPE90S4,XDKAF107RF77-YS100L4,XDKAF107RF77-YS112M4,XDKAF107RF77-YS132M4,XDKAF107RF77-YS63M4,XDKAF107RF77-YS71M4,XDKAF107RF77-YS80M4,XDKAF107RF77-YS90S4,XDKAF107RF77-YVB100L4,XDKAF107RF77-YVB112M4,XDKAF107RF77-YVB132M4,XDKAF107RF77-YVB63M4,XDKAF107RF77-YVB71M4,XDKAF107RF77-YVB80M4,XDKAF107RF77-YVB90S4,XDKAF107RF77-YVP100L4,XDKAF107RF77-YVP112M4,XDKAF107RF77-YVP132M4,XDKAF107RF77-YVP63M4,XDKAF107RF77-YVP71M4,XDKAF107RF77-YVP80M4,XDKAF107RF77-YVP90S4,XDKAF107RF77-YVPEJ100L4,XDKAF107RF77-YVPEJ112M4,XDKAF107RF77-YVPEJ132M4,XDKAF107RF77-YVPEJ63M4,XDKAF107RF77-YVPEJ71M4,XDKAF107RF77-YVPEJ80M4,XDKAF107RF77-YVPEJ90S4,WKAF107R77-Y100M4,WKAF107R77-Y112M4,WKAF107R77-Y132M4,WKAF107R77-Y63M4,WKAF107R77-Y71M4,WKAF107R77-Y80M4,WKAF107R77-Y90M4,WKAF107RF77-Y0.12KWAF,WKAF107RF77-Y0.18KWAF,WKAF107RF77-Y0.25KWAF,WKAF107RF77-Y0.37KWAF,WKAF107RF77-Y0.55KWAF,WKAF107RF77-Y0.75KWAF,WKAF107RF77-Y1.1KWAF,WKAF107RF77-Y1.5KWAF,WKAF107RF77-Y100M4,WKAF107RF77-Y112M4,WKAF107RF77-Y132M4,WKAF107RF77-Y2.2KWAF,WKAF107RF77-Y3KWAF,WKAF107RF77-Y4KWAF,WKAF107RF77-Y5.5KWAF,WKAF107RF77-Y63M4,WKAF107RF77-Y7.5KWAF,WKAF107RF77-Y71M4,WKAF107RF77-Y80M4,WKAF107RF77-Y90M4,WKAF107RF77-YB100L4,WKAF107RF77-YB112M4,WKAF107RF77-YB132M4,WKAF107RF77-YB63M4,WKAF107RF77-YB71M4,WKAF107RF77-YB80M4,WKAF107RF77-YB90S4,WKAF107RF77-YDP100L4,WKAF107RF77-YDP112M4,WKAF107RF77-YDP132M4,WKAF107RF77-YDP63M4,WKAF107RF77-YDP71M4,WKAF107RF77-YDP80M4,WKAF107RF77-YDP90S4,WKAF107RF77-YE100L4,WKAF107RF77-YE112M4,WKAF107RF77-YE132M4,WKAF107RF77-YE63M4,WKAF107RF77-YE71M4,WKAF107RF77-YE80M4,WKAF107RF77-YE90S4,WKAF107RF77-YEJ100L4,WKAF107RF77-YEJ112M4,WKAF107RF77-YEJ132M4,WKAF107RF77-YEJ63M4,WKAF107RF77-YEJ71M4,WKAF107RF77-YEJ80M4,WKAF107RF77-YEJ90S4,WKAF107RF77-YEJB100L4,WKAF107RF77-YEJB112M4,WKAF107RF77-YEJB132M4,WKAF107RF77-YEJB63M4,WKAF107RF77-YEJB71M4,WKAF107RF77-YEJB80M4,WKAF107RF77-YEJB90S4,WKAF107RF77-YP100L4,WKAF107RF77-YP112M4,WKAF107RF77-YP132M4,WKAF107RF77-YP63M4,WKAF107RF77-YP71M4,WKAF107RF77-YP80M4,WKAF107RF77-YP90S4,WKAF107RF77-YPB100L4,WKAF107RF77-YPB112M4,WKAF107RF77-YPB132M4,WKAF107RF77-YPB63M4,WKAF107RF77-YPB71M4,WKAF107RF77-YPB80M4,WKAF107RF77-YPB90S4,WKAF107RF77-YPE100L4,WKAF107RF77-YPE112M4,WKAF107RF77-YPE132M4,WKAF107RF77-YPE63M4,WKAF107RF77-YPE71M4,WKAF107RF77-YPE80M4,WKAF107RF77-YPE90S4,WKAF107RF77-YS100L4,WKAF107RF77-YS112M4,WKAF107RF77-YS132M4,WKAF107RF77-YS63M4,WKAF107RF77-YS71M4,WKAF107RF77-YS80M4,WKAF107RF77-YS90S4,WKAF107RF77-YVB100L4,WKAF107RF77-YVB112M4,WKAF107RF77-YVB132M4,WKAF107RF77-YVB63M4,WKAF107RF77-YVB71M4,WKAF107RF77-YVB80M4,WKAF107RF77-YVB90S4,WKAF107RF77-YVP100L4,WKAF107RF77-YVP112M4,WKAF107RF77-YVP132M4,WKAF107RF77-YVP63M4,WKAF107RF77-YVP71M4,WKAF107RF77-YVP80M4,WKAF107RF77-YVP90S4,WKAF107RF77-YVPEJ100L4,WKAF107RF77-YVPEJ112M4,WKAF107RF77-YVPEJ132M4,WKAF107RF77-YVPEJ63M4,WKAF107RF77-YVPEJ71M4,WKAF107RF77-YVPEJ80M4,WKAF107RF77-YVPEJ90S4,JCKAF107R77-Y100M4,JCKAF107R77-Y112M4,JCKAF107R77-Y132M4,JCKAF107R77-Y63M4,JCKAF107R77-Y71M4,JCKAF107R77-Y80M4,JCKAF107R77-Y90M4,JCKAF107RF77-Y0.12KWAF,JCKAF107RF77-Y0.18KWAF,JCKAF107RF77-Y0.25KWAF,JCKAF107RF77-Y0.37KWAF,JCKAF107RF77-Y0.55KWAF,JCKAF107RF77-Y0.75KWAF,JCKAF107RF77-Y1.1KWAF,JCKAF107RF77-Y1.5KWAF,JCKAF107RF77-Y100M4,JCKAF107RF77-Y112M4,JCKAF107RF77-Y132M4,JCKAF107RF77-Y2.2KWAF,JCKAF107RF77-Y3KWAF,JCKAF107RF77-Y4KWAF,JCKAF107RF77-Y5.5KWAF,JCKAF107RF77-Y63M4,JCKAF107RF77-Y7.5KWAF,JCKAF107RF77-Y71M4,JCKAF107RF77-Y80M4,JCKAF107RF77-Y90M4,JCKAF107RF77-YB100L4,JCKAF107RF77-YB112M4,JCKAF107RF77-YB132M4,JCKAF107RF77-YB63M4,JCKAF107RF77-YB71M4,JCKAF107RF77-YB80M4,JCKAF107RF77-YB90S4,JCKAF107RF77-YDP100L4,JCKAF107RF77-YDP112M4,JCKAF107RF77-YDP132M4,JCKAF107RF77-YDP63M4,JCKAF107RF77-YDP71M4,JCKAF107RF77-YDP80M4,JCKAF107RF77-YDP90S4,JCKAF107RF77-YE100L4,JCKAF107RF77-YE112M4,JCKAF107RF77-YE132M4,JCKAF107RF77-YE63M4,JCKAF107RF77-YE71M4,JCKAF107RF77-YE80M4,JCKAF107RF77-YE90S4,JCKAF107RF77-YEJ100L4,JCKAF107RF77-YEJ112M4,JCKAF107RF77-YEJ132M4,JCKAF107RF77-YEJ63M4,JCKAF107RF77-YEJ71M4,JCKAF107RF77-YEJ80M4,JCKAF107RF77-YEJ90S4,JCKAF107RF77-YEJB100L4,JCKAF107RF77-YEJB112M4,JCKAF107RF77-YEJB132M4,JCKAF107RF77-YEJB63M4,JCKAF107RF77-YEJB71M4,JCKAF107RF77-YEJB80M4,JCKAF107RF77-YEJB90S4,JCKAF107RF77-YP100L4,JCKAF107RF77-YP112M4,JCKAF107RF77-YP132M4,JCKAF107RF77-YP63M4,JCKAF107RF77-YP71M4,JCKAF107RF77-YP80M4,JCKAF107RF77-YP90S4,JCKAF107RF77-YPB100L4,JCKAF107RF77-YPB112M4,JCKAF107RF77-YPB132M4,JCKAF107RF77-YPB63M4,JCKAF107RF77-YPB71M4,JCKAF107RF77-YPB80M4,JCKAF107RF77-YPB90S4,JCKAF107RF77-YPE100L4,JCKAF107RF77-YPE112M4,JCKAF107RF77-YPE132M4,JCKAF107RF77-YPE63M4,JCKAF107RF77-YPE71M4,JCKAF107RF77-YPE80M4,JCKAF107RF77-YPE90S4,JCKAF107RF77-YS100L4,JCKAF107RF77-YS112M4,JCKAF107RF77-YS132M4,JCKAF107RF77-YS63M4,JCKAF107RF77-YS71M4,JCKAF107RF77-YS80M4,JCKAF107RF77-YS90S4,JCKAF107RF77-YVB100L4,JCKAF107RF77-YVB112M4,JCKAF107RF77-YVB132M4,JCKAF107RF77-YVB63M4,JCKAF107RF77-YVB71M4,JCKAF107RF77-YVB80M4,JCKAF107RF77-YVB90S4,JCKAF107RF77-YVP100L4,JCKAF107RF77-YVP112M4,JCKAF107RF77-YVP132M4,JCKAF107RF77-YVP63M4,JCKAF107RF77-YVP71M4,JCKAF107RF77-YVP80M4,JCKAF107RF77-YVP90S4,JCKAF107RF77-YVPEJ100L4,JCKAF107RF77-YVPEJ112M4,JCKAF107RF77-YVPEJ132M4,JCKAF107RF77-YVPEJ63M4,JCKAF107RF77-YVPEJ71M4,JCKAF107RF77-YVPEJ80M4,JCKAF107RF77-YVPEJ90S4,NKAF107R77-Y100M4,NKAF107R77-Y112M4,NKAF107R77-Y132M4,NKAF107R77-Y63M4,NKAF107R77-Y71M4,NKAF107R77-Y80M4,NKAF107R77-Y90M4,NKAF107RF77-Y0.12KWAF,NKAF107RF77-Y0.18KWAF,NKAF107RF77-Y0.25KWAF,NKAF107RF77-Y0.37KWAF,NKAF107RF77-Y0.55KWAF,NKAF107RF77-Y0.75KWAF,NKAF107RF77-Y1.1KWAF,NKAF107RF77-Y1.5KWAF,NKAF107RF77-Y100M4,NKAF107RF77-Y112M4,NKAF107RF77-Y132M4,NKAF107RF77-Y2.2KWAF,NKAF107RF77-Y3KWAF,NKAF107RF77-Y4KWAF,NKAF107RF77-Y5.5KWAF,NKAF107RF77-Y63M4,NKAF107RF77-Y7.5KWAF,NKAF107RF77-Y71M4,NKAF107RF77-Y80M4,NKAF107RF77-Y90M4,NKAF107RF77-YB100L4,NKAF107RF77-YB112M4,NKAF107RF77-YB132M4,NKAF107RF77-YB63M4,NKAF107RF77-YB71M4,NKAF107RF77-YB80M4,NKAF107RF77-YB90S4,NKAF107RF77-YDP100L4,NKAF107RF77-YDP112M4,NKAF107RF77-YDP132M4,NKAF107RF77-YDP63M4,NKAF107RF77-YDP71M4,NKAF107RF77-YDP80M4,NKAF107RF77-YDP90S4,NKAF107RF77-YE100L4,NKAF107RF77-YE112M4,NKAF107RF77-YE132M4,NKAF107RF77-YE63M4,NKAF107RF77-YE71M4,NKAF107RF77-YE80M4,NKAF107RF77-YE90S4,NKAF107RF77-YEJ100L4,NKAF107RF77-YEJ112M4,NKAF107RF77-YEJ132M4,NKAF107RF77-YEJ63M4,NKAF107RF77-YEJ71M4,NKAF107RF77-YEJ80M4,NKAF107RF77-YEJ90S4,NKAF107RF77-YEJB100L4,NKAF107RF77-YEJB112M4,NKAF107RF77-YEJB132M4,NKAF107RF77-YEJB63M4,NKAF107RF77-YEJB71M4,NKAF107RF77-YEJB80M4,NKAF107RF77-YEJB90S4,NKAF107RF77-YP100L4,NKAF107RF77-YP112M4,NKAF107RF77-YP132M4,NKAF107RF77-YP63M4,NKAF107RF77-YP71M4,NKAF107RF77-YP80M4,NKAF107RF77-YP90S4,NKAF107RF77-YPB100L4,NKAF107RF77-YPB112M4,NKAF107RF77-YPB132M4,NKAF107RF77-YPB63M4,NKAF107RF77-YPB71M4,NKAF107RF77-YPB80M4,NKAF107RF77-YPB90S4,NKAF107RF77-YPE100L4,NKAF107RF77-YPE112M4,NKAF107RF77-YPE132M4,NKAF107RF77-YPE63M4,NKAF107RF77-YPE71M4,NKAF107RF77-YPE80M4,NKAF107RF77-YPE90S4,NKAF107RF77-YS100L4,NKAF107RF77-YS112M4,NKAF107RF77-YS132M4,NKAF107RF77-YS63M4,NKAF107RF77-YS71M4,NKAF107RF77-YS80M4,NKAF107RF77-YS90S4,NKAF107RF77-YVB100L4,NKAF107RF77-YVB112M4,NKAF107RF77-YVB132M4,NKAF107RF77-YVB63M4,NKAF107RF77-YVB71M4,NKAF107RF77-YVB80M4,NKAF107RF77-YVB90S4,NKAF107RF77-YVP100L4,NKAF107RF77-YVP112M4,NKAF107RF77-YVP132M4,NKAF107RF77-YVP63M4,NKAF107RF77-YVP71M4,NKAF107RF77-YVP80M4,NKAF107RF77-YVP90S4,NKAF107RF77-YVPEJ100L4,NKAF107RF77-YVPEJ112M4,NKAF107RF77-YVPEJ132M4,NKAF107RF77-YVPEJ63M4,NKAF107RF77-YVPEJ71M4,NKAF107RF77-YVPEJ80M4,NKAF107RF77-YVPEJ90S4,KWAF107RW77-Y100M4,KWAF107RW77-Y112M4,KWAF107RW77-Y132M4,KWAF107RW77-Y63M4,KWAF107RW77-Y71M4,KWAF107RW77-Y80M4,KWAF107RW77-Y90M4,KWAF107RWF77-Y0.12KWAF,KWAF107RWF77-Y0.18KWAF,KWAF107RWF77-Y0.25KWAF,KWAF107RWF77-Y0.37KWAF,KWAF107RWF77-Y0.55KWAF,KWAF107RWF77-Y0.75KWAF,KWAF107RWF77-Y1.1KWAF,KWAF107RWF77-Y1.5KWAF,KWAF107RWF77-Y100M4,KWAF107RWF77-Y112M4,KWAF107RWF77-Y132M4,KWAF107RWF77-Y2.2KWAF,KWAF107RWF77-Y3KWAF,KWAF107RWF77-Y4KWAF,KWAF107RWF77-Y5.5KWAF,KWAF107RWF77-Y63M4,KWAF107RWF77-Y7.5KWAF,KWAF107RWF77-Y71M4,KWAF107RWF77-Y80M4,KWAF107RWF77-Y90M4,KWAF107RWF77-YB100L4,KWAF107RWF77-YB112M4,KWAF107RWF77-YB132M4,KWAF107RWF77-YB63M4,KWAF107RWF77-YB71M4,KWAF107RWF77-YB80M4,KWAF107RWF77-YB90S4,KWAF107RWF77-YDP100L4,KWAF107RWF77-YDP112M4,KWAF107RWF77-YDP132M4,KWAF107RWF77-YDP63M4,KWAF107RWF77-YDP71M4,KWAF107RWF77-YDP80M4,KWAF107RWF77-YDP90S4,KWAF107RWF77-YE100L4,KWAF107RWF77-YE112M4,KWAF107RWF77-YE132M4,KWAF107RWF77-YE63M4,KWAF107RWF77-YE71M4,KWAF107RWF77-YE80M4,KWAF107RWF77-YE90S4,KWAF107RWF77-YEJ100L4,KWAF107RWF77-YEJ112M4,KWAF107RWF77-YEJ132M4,KWAF107RWF77-YEJ63M4,KWAF107RWF77-YEJ71M4,KWAF107RWF77-YEJ80M4,KWAF107RWF77-YEJ90S4,KWAF107RWF77-YEJB100L4,KWAF107RWF77-YEJB112M4,KWAF107RWF77-YEJB132M4,KWAF107RWF77-YEJB63M4,KWAF107RWF77-YEJB71M4,KWAF107RWF77-YEJB80M4,KWAF107RWF77-YEJB90S4,KWAF107RWF77-YP100L4,KWAF107RWF77-YP112M4,KWAF107RWF77-YP132M4,KWAF107RWF77-YP63M4,KWAF107RWF77-YP71M4,KWAF107RWF77-YP80M4,KWAF107RWF77-YP90S4,KWAF107RWF77-YPB100L4,KWAF107RWF77-YPB112M4,KWAF107RWF77-YPB132M4,KWAF107RWF77-YPB63M4,KWAF107RWF77-YPB71M4,KWAF107RWF77-YPB80M4,KWAF107RWF77-YPB90S4,KWAF107RWF77-YPE100L4,KWAF107RWF77-YPE112M4,KWAF107RWF77-YPE132M4,KWAF107RWF77-YPE63M4,KWAF107RWF77-YPE71M4,KWAF107RWF77-YPE80M4,KWAF107RWF77-YPE90S4,KWAF107RWF77-YS100L4,KWAF107RWF77-YS112M4,KWAF107RWF77-YS132M4,KWAF107RWF77-YS63M4,KWAF107RWF77-YS71M4,KWAF107RWF77-YS80M4,KWAF107RWF77-YS90S4,KWAF107RWF77-YVB100L4,KWAF107RWF77-YVB112M4,KWAF107RWF77-YVB132M4,KWAF107RWF77-YVB63M4,KWAF107RWF77-YVB71M4,KWAF107RWF77-YVB80M4,KWAF107RWF77-YVB90S4,KWAF107RWF77-YVP100L4,KWAF107RWF77-YVP112M4,KWAF107RWF77-YVP132M4,KWAF107RWF77-YVP63M4,KWAF107RWF77-YVP71M4,KWAF107RWF77-YVP80M4,KWAF107RWF77-YVP90S4,KWAF107RWF77-YVPEJ100L4,KWAF107RWF77-YVPEJ112M4,KWAF107RWF77-YVPEJ132M4,KWAF107RWF77-YVPEJ63M4,KWAF107RWF77-YVPEJ71M4,KWAF107RWF77-YVPEJ80M4,KWAF107RWF77-YVPEJ90S4,KAF109R79-Y100M4,KAF109R79-Y112M4,KAF109R79-Y132M4,KAF109R79-Y63M4,KAF109R79-Y71M4,KAF109R79-Y80M4,KAF109R79-Y90M4,KAF109RF79-Y0.12KWAF,KAF109RF79-Y0.18KWAF,KAF109RF79-Y0.25KWAF,KAF109RF79-Y0.37KWAF,KAF109RF79-Y0.55KWAF,KAF109RF79-Y0.75KWAF,KAF109RF79-Y1.1KWAF,KAF109RF79-Y1.5KWAF,KAF109RF79-Y100M4,KAF109RF79-Y112M4,KAF109RF79-Y132M4,KAF109RF79-Y2.2KWAF,KAF109RF79-Y3KWAF,KAF109RF79-Y4KWAF,KAF109RF79-Y5.5KWAF,KAF109RF79-Y63M4,KAF109RF79-Y7.5KWAF,KAF109RF79-Y71M4,KAF109RF79-Y80M4,KAF109RF79-Y90M4,KAF109RF79-YB100L4,KAF109RF79-YB112M4,KAF109RF79-YB132M4,KAF109RF79-YB63M4,KAF109RF79-YB71M4,KAF109RF79-YB80M4,KAF109RF79-YB90S4,KAF109RF79-YDP100L4,KAF109RF79-YDP112M4,KAF109RF79-YDP132M4,KAF109RF79-YDP63M4,KAF109RF79-YDP71M4,KAF109RF79-YDP80M4,KAF109RF79-YDP90S4,KAF109RF79-YE100L4,KAF109RF79-YE112M4,KAF109RF79-YE132M4,KAF109RF79-YE63M4,KAF109RF79-YE71M4,KAF109RF79-YE80M4,KAF109RF79-YE90S4,KAF109RF79-YEJ100L4,KAF109RF79-YEJ112M4,KAF109RF79-YEJ132M4,KAF109RF79-YEJ63M4,KAF109RF79-YEJ71M4,KAF109RF79-YEJ80M4,KAF109RF79-YEJ90S4,KAF109RF79-YEJB100L4,KAF109RF79-YEJB112M4,KAF109RF79-YEJB132M4,KAF109RF79-YEJB63M4,KAF109RF79-YEJB71M4,KAF109RF79-YEJB80M4,KAF109RF79-YEJB90S4,KAF109RF79-YP100L4,KAF109RF79-YP112M4,KAF109RF79-YP132M4,KAF109RF79-YP63M4,KAF109RF79-YP71M4,KAF109RF79-YP80M4,KAF109RF79-YP90S4,KAF109RF79-YPB100L4,KAF109RF79-YPB112M4,KAF109RF79-YPB132M4,KAF109RF79-YPB63M4,KAF109RF79-YPB71M4,KAF109RF79-YPB80M4,KAF109RF79-YPB90S4,KAF109RF79-YPE100L4,KAF109RF79-YPE112M4,KAF109RF79-YPE132M4,KAF109RF79-YPE63M4,KAF109RF79-YPE71M4,KAF109RF79-YPE80M4,KAF109RF79-YPE90S4,KAF109RF79-YS100L4,KAF109RF79-YS112M4,KAF109RF79-YS132M4,KAF109RF79-YS63M4,KAF109RF79-YS71M4,KAF109RF79-YS80M4,KAF109RF79-YS90S4,KAF109RF79-YVB100L4,KAF109RF79-YVB112M4,KAF109RF79-YVB132M4,KAF109RF79-YVB63M4,KAF109RF79-YVB71M4,KAF109RF79-YVB80M4,KAF109RF79-YVB90S4,KAF109RF79-YVP100L4,KAF109RF79-YVP112M4,KAF109RF79-YVP132M4,KAF109RF79-YVP63M4,KAF109RF79-YVP71M4,KAF109RF79-YVP80M4,KAF109RF79-YVP90S4,KAF109RF79-YVPEJ100L4,KAF109RF79-YVPEJ112M4,KAF109RF79-YVPEJ132M4,KAF109RF79-YVPEJ63M4,KAF109RF79-YVPEJ71M4,KAF109RF79-YVPEJ80M4,KAF109RF79-YVPEJ90S4。
KAF109R79減速電機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kafxiliejiansuji-cn.html
推薦型號:K109減速機
關鍵詞:二級減速機帶電機一體機_三相異步減速電機_三級減速機_角向減速機_GKAF系列減速機_KAF系列減速機_KAF系列減速器_三相異步減速機_二級減速器_三級減速器
KAF系列齒輪減速電機型號:KAF39減速機,KAF49減速機,KAF59減速機,KAF69減速機,KAF79減速機,KAF89減速機,KAF99減速機,KAF109減速機,KAF129減速機,KAF159減速機,KAF167減速機,KAF187減速機
KAF系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
