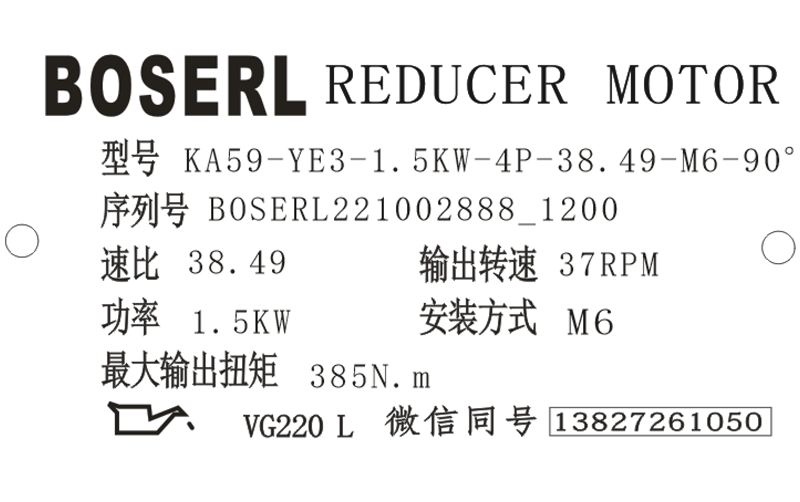

KA59減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA59減速機選型樣本。
KA59-YE3-1.5KW-4P-38.49-M6-90°
KA:系列代號
59:減速機規格代號
YE3:電機
1.5KW:電機功率
4P:電機級數
38.49:減速機傳動比
M6:減速機安裝位置
90°:接線盒位置
KA59減速機空心軸扭矩臂安裝:
裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA59減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機
減速機型號 | 螺栓 | 擰緊扭矩 |
KA39減速機 | 4Xm10x25-8.8 | 48Nm |
KA49減速機 | 4Xm10x30-8.8 | 48Nm |
KA69減速機 | 4Xm12x35-8.8 | 86Nm |
KA79減速機 | 4Xm16x40-8.8 | 210Nm |
KA89減速機 | 4Xm16x45-8.8 | 210Nm |
KA99減速機 | 4Xm20x50-8.8 | 410Nm |
KA109減速機 | 4Xm24x60-8.8 | 710Nm |
KA129減速機 | 4Xm36x60-8.8 | 2500Nm |
KA159減速機 | 4Xm36x60-8.8 | 2500Nm |
KA169減速機 | 4Xm30x60-8.8 | 1450Nm |
KA189減速機 | 4Xm36x60-8.8 | 2500Nm |
KA59減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA59減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。空心軸減速機
KA59減速機型號:
WKA57-Y0.12SKA,WKA57-Y0.18SKA,WKA57-Y0.25SKA,WKA57-Y0.37SKA,WKA57-Y0.55SKA,WKA57-Y0.75SKA,WKA57-Y1.1SKA,WKA57-Y1.5SKA,WKA57-Y100M4,WKA57-Y112M4,WKA57-Y2.2SKA,WKA57-Y3SKA,WKA57-Y4SKA,WKA57-Y63M4,WKA57-Y71M4,WKA57-Y80M4,WKA57-Y90M4,WKA57-YB100M4,WKA57-YB112M4,WKA57-YB63M4,WKA57-YB71M4,WKA57-YB80M4,WKA57-YB90M4,WKA57-YDP100M4,WKA57-YDP112M4,WKA57-YDP63M4,WKA57-YDP71M4,WKA57-YDP80M4,WKA57-YDP90M4,WKA57-YE100M4,WKA57-YE112M4,WKA57-YE63M4,WKA57-YE71M4,WKA57-YE80M4,WKA57-YE90M4,WKA57-YEJ100M4,WKA57-YEJ112M4,WKA57-YEJ63M4,WKA57-YEJ71M4,WKA57-YEJ80M4,WKA57-YEJ90M4,WKA57-YEJB100M4,WKA57-YEJB112M4,WKA57-YEJB63M4,WKA57-YEJB71M4,WKA57-YEJB80M4,WKA57-YEJB90M4,WKA57-YP100M4,WKA57-YP112M4,WKA57-YP63M4,WKA57-YP71M4,WKA57-YP80M4,WKA57-YP90M4,WKA57-YPB100M4,WKA57-YPB112M4,WKA57-YPB63M4,WKA57-YPB71M4,WKA57-YPB80M4,WKA57-YPB90M4,WKA57-YPE100M4,WKA57-YPE112M4,WKA57-YPE63M4,WKA57-YPE71M4,WKA57-YPE80M4,WKA57-YPE90M4,WKA57-YS100M4,WKA57-YS112M4,WKA57-YS63M4,WKA57-YS71M4,WKA57-YS80M4,WKA57-YS90M4,WKA57-YVB100M4,WKA57-YVB112M4,WKA57-YVB63M4,WKA57-YVB71M4,WKA57-YVB80M4,WKA57-YVB90M4,WKA57-YVP100M4,WKA57-YVP112M4,WKA57-YVP63M4,WKA57-YVP71M4,WKA57-YVP80M4,WKA57-YVP90M4,WKA57-YVPEJ100M4,WKA57-YVPEJ112M4,WKA57-YVPEJ63M4,WKA57-YVPEJ71M4,WKA57-YVPEJ80M4,WKA57-YVPEJ90M4,SKA57-Y0.12SKA,SKA57-Y0.18SKA,SKA57-Y0.25SKA,SKA57-Y0.37SKA,SKA57-Y0.55SKA,SKA57-Y0.75SKA,SKA57-Y1.1SKA,SKA57-Y1.5SKA,SKA57-Y100M4,SKA57-Y112M4,SKA57-Y2.2SKA,SKA57-Y3SKA,SKA57-Y4SKA,SKA57-Y63M4,SKA57-Y71M4,SKA57-Y80M4,SKA57-Y90M4,SKA57-YB100M4,SKA57-YB112M4,SKA57-YB63M4,SKA57-YB71M4,SKA57-YB80M4,SKA57-YB90M4,SKA57-YDP100M4,SKA57-YDP112M4,SKA57-YDP63M4,SKA57-YDP71M4,SKA57-YDP80M4,SKA57-YDP90M4,SKA57-YE100M4,SKA57-YE112M4,SKA57-YE63M4,SKA57-YE71M4,SKA57-YE80M4,SKA57-YE90M4,SKA57-YEJ100M4,SKA57-YEJ112M4,SKA57-YEJ63M4,SKA57-YEJ71M4,SKA57-YEJ80M4,SKA57-YEJ90M4,SKA57-YEJB100M4,SKA57-YEJB112M4,SKA57-YEJB63M4,SKA57-YEJB71M4,SKA57-YEJB80M4,SKA57-YEJB90M4,SKA57-YP100M4,SKA57-YP112M4,SKA57-YP63M4,SKA57-YP71M4,SKA57-YP80M4,SKA57-YP90M4,SKA57-YPB100M4,SKA57-YPB112M4,SKA57-YPB63M4,SKA57-YPB71M4,SKA57-YPB80M4,SKA57-YPB90M4,SKA57-YPE100M4,SKA57-YPE112M4,SKA57-YPE63M4,SKA57-YPE71M4,SKA57-YPE80M4,SKA57-YPE90M4,SKA57-YS100M4,SKA57-YS112M4,SKA57-YS63M4,SKA57-YS71M4,SKA57-YS80M4,SKA57-YS90M4,SKA57-YVB100M4,SKA57-YVB112M4,SKA57-YVB63M4,SKA57-YVB71M4,SKA57-YVB80M4,SKA57-YVB90M4,SKA57-YVP100M4,SKA57-YVP112M4,SKA57-YVP63M4,SKA57-YVP71M4,SKA57-YVP80M4,SKA57-YVP90M4,SKA57-YVPEJ100M4,SKA57-YVPEJ112M4,SKA57-YVPEJ63M4,SKA57-YVPEJ71M4,SKA57-YVPEJ80M4,SKA57-YVPEJ90M4,AKA57-Y0.12SKA,AKA57-Y0.18SKA,AKA57-Y0.25SKA,AKA57-Y0.37SKA,AKA57-Y0.55SKA,AKA57-Y0.75SKA,AKA57-Y1.1SKA,AKA57-Y1.5SKA,AKA57-Y100M4,AKA57-Y112M4,AKA57-Y2.2SKA,AKA57-Y3SKA,AKA57-Y4SKA,AKA57-Y63M4,AKA57-Y71M4,AKA57-Y80M4,AKA57-Y90M4,AKA57-YB100M4,AKA57-YB112M4,AKA57-YB63M4,AKA57-YB71M4,AKA57-YB80M4,AKA57-YB90M4,AKA57-YDP100M4,AKA57-YDP112M4,AKA57-YDP63M4,AKA57-YDP71M4,AKA57-YDP80M4,AKA57-YDP90M4,AKA57-YE100M4,AKA57-YE112M4,AKA57-YE63M4,AKA57-YE71M4,AKA57-YE80M4,AKA57-YE90M4,AKA57-YEJ100M4,AKA57-YEJ112M4,AKA57-YEJ63M4,AKA57-YEJ71M4,AKA57-YEJ80M4,AKA57-YEJ90M4,AKA57-YEJB100M4,AKA57-YEJB112M4,AKA57-YEJB63M4,AKA57-YEJB71M4,AKA57-YEJB80M4,AKA57-YEJB90M4,AKA57-YP100M4,AKA57-YP112M4,AKA57-YP63M4,AKA57-YP71M4,AKA57-YP80M4,AKA57-YP90M4,AKA57-YPB100M4,AKA57-YPB112M4,AKA57-YPB63M4,AKA57-YPB71M4,AKA57-YPB80M4,AKA57-YPB90M4,AKA57-YPE100M4,AKA57-YPE112M4,AKA57-YPE63M4,AKA57-YPE71M4,AKA57-YPE80M4,AKA57-YPE90M4,AKA57-YS100M4,AKA57-YS112M4,AKA57-YS63M4,AKA57-YS71M4,AKA57-YS80M4,AKA57-YS90M4,AKA57-YVB100M4,AKA57-YVB112M4,AKA57-YVB63M4,AKA57-YVB71M4,AKA57-YVB80M4,AKA57-YVB90M4,AKA57-YVP100M4,AKA57-YVP112M4,AKA57-YVP63M4,AKA57-YVP71M4,AKA57-YVP80M4,AKA57-YVP90M4,AKA57-YVPEJ100M4,AKA57-YVPEJ112M4,AKA57-YVPEJ63M4,AKA57-YVPEJ71M4,AKA57-YVPEJ80M4,AKA57-YVPEJ90M4,NKA57-Y0.12SKA,NKA57-Y0.18SKA,NKA57-Y0.25SKA,NKA57-Y0.37SKA,NKA57-Y0.55SKA,NKA57-Y0.75SKA,NKA57-Y1.1SKA,NKA57-Y1.5SKA,NKA57-Y100M4,NKA57-Y112M4,NKA57-Y2.2SKA,NKA57-Y3SKA,NKA57-Y4SKA,NKA57-Y63M4,NKA57-Y71M4,NKA57-Y80M4,NKA57-Y90M4,NKA57-YB100M4,NKA57-YB112M4,NKA57-YB63M4,NKA57-YB71M4,NKA57-YB80M4,NKA57-YB90M4,NKA57-YDP100M4,NKA57-YDP112M4,NKA57-YDP63M4,NKA57-YDP71M4,NKA57-YDP80M4,NKA57-YDP90M4,NKA57-YE100M4,NKA57-YE112M4,NKA57-YE63M4,NKA57-YE71M4,NKA57-YE80M4,NKA57-YE90M4,NKA57-YEJ100M4,NKA57-YEJ112M4,NKA57-YEJ63M4,NKA57-YEJ71M4,NKA57-YEJ80M4,NKA57-YEJ90M4,NKA57-YEJB100M4,NKA57-YEJB112M4,NKA57-YEJB63M4,NKA57-YEJB71M4,NKA57-YEJB80M4,NKA57-YEJB90M4,NKA57-YP100M4,NKA57-YP112M4,NKA57-YP63M4,NKA57-YP71M4,NKA57-YP80M4,NKA57-YP90M4,NKA57-YPB100M4,NKA57-YPB112M4,NKA57-YPB63M4,NKA57-YPB71M4,NKA57-YPB80M4,NKA57-YPB90M4,NKA57-YPE100M4,NKA57-YPE112M4,NKA57-YPE63M4,NKA57-YPE71M4,NKA57-YPE80M4,NKA57-YPE90M4,NKA57-YS100M4,NKA57-YS112M4,NKA57-YS63M4,NKA57-YS71M4,NKA57-YS80M4,NKA57-YS90M4,NKA57-YVB100M4,NKA57-YVB112M4,NKA57-YVB63M4,NKA57-YVB71M4,NKA57-YVB80M4,NKA57-YVB90M4,NKA57-YVP100M4,NKA57-YVP112M4,NKA57-YVP63M4,NKA57-YVP71M4,NKA57-YVP80M4,NKA57-YVP90M4,NKA57-YVPEJ100M4,NKA57-YVPEJ112M4,NKA57-YVPEJ63M4,NKA57-YVPEJ71M4,NKA57-YVPEJ80M4,NKA57-YVPEJ90M4,GKA59-Y0.12SKA,GKA59-Y0.18SKA,GKA59-Y0.25SKA,GKA59-Y0.37SKA,GKA59-Y0.55SKA,GKA59-Y0.75SKA,GKA59-Y1.1SKA,GKA59-Y1.5SKA,GKA59-Y100M4,GKA59-Y112M4,GKA59-Y2.2SKA,GKA59-Y3SKA,GKA59-Y4SKA,GKA59-Y63M4,GKA59-Y71M4,GKA59-Y80M4,GKA59-Y90M4,GKA59-YB100M4,GKA59-YB112M4,GKA59-YB63M4,GKA59-YB71M4,GKA59-YB80M4,GKA59-YB90M4,GKA59-YDP100M4,GKA59-YDP112M4,GKA59-YDP63M4,GKA59-YDP71M4,GKA59-YDP80M4,GKA59-YDP90M4,GKA59-YE100M4,GKA59-YE112M4,GKA59-YE63M4,GKA59-YE71M4,GKA59-YE80M4,GKA59-YE90M4,GKA59-YEJ100M4,GKA59-YEJ112M4,GKA59-YEJ63M4,GKA59-YEJ71M4,GKA59-YEJ80M4,GKA59-YEJ90M4,GKA59-YEJB100M4,GKA59-YEJB112M4,GKA59-YEJB63M4,GKA59-YEJB71M4,GKA59-YEJB80M4,GKA59-YEJB90M4,GKA59-YP100M4,GKA59-YP112M4,GKA59-YP63M4,GKA59-YP71M4,GKA59-YP80M4,GKA59-YP90M4,GKA59-YPB100M4,GKA59-YPB112M4,GKA59-YPB63M4,GKA59-YPB71M4,GKA59-YPB80M4,GKA59-YPB90M4,GKA59-YPE100M4,GKA59-YPE112M4,GKA59-YPE63M4,GKA59-YPE71M4,GKA59-YPE80M4,GKA59-YPE90M4,GKA59-YS100M4,GKA59-YS112M4,GKA59-YS63M4,GKA59-YS71M4,GKA59-YS80M4,GKA59-YS90M4,GKA59-YVB100M4,GKA59-YVB112M4,GKA59-YVB63M4,GKA59-YVB71M4,GKA59-YVB80M4,GKA59-YVB90M4,GKA59-YVP100M4,GKA59-YVP112M4,GKA59-YVP63M4,GKA59-YVP71M4,GKA59-YVP80M4,GKA59-YVP90M4,GKA59-YVPEJ100M4,GKA59-YVPEJ112M4,GKA59-YVPEJ63M4,GKA59-YVPEJ71M4,GKA59-YVPEJ80M4,GKA59-YVPEJ90M4。
KA59減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kaxiliejiansuji-cn.html
推薦類似型號:K59減速機
關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機
KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
