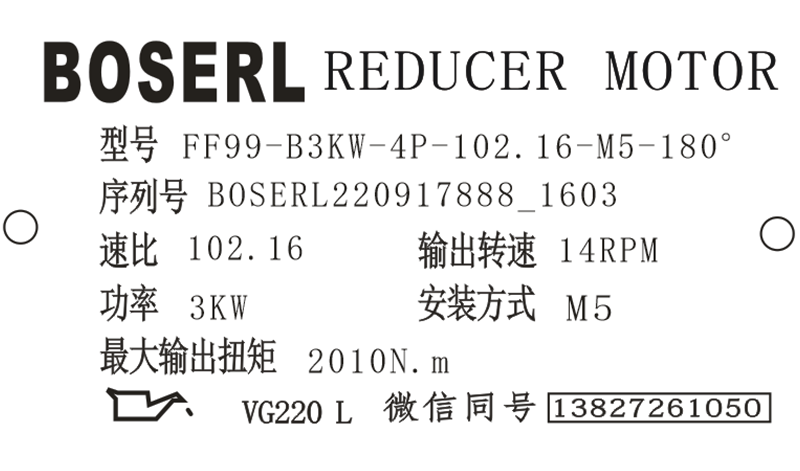

FF99減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF99減速機選型樣本。
FF99-YVPEJ3KW-4P-102.16-M5-180°
FF:系列代號
99:減速機規格代號
Y:電機
VPEJ:變頻剎車電機
3KW:電機功率
4P:電機級數
102.16:減速機傳動比
M5:減速機安裝位置
180°:接線盒位置
FF99減速機潤滑油型號:
FF99減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF99減速機選型樣本中列出了安裝位置從M1到M6FF99減速機相應的潤滑油加注標準,請自行下載查看。平行軸斜齒輪減速機
FF99減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據FF99減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“FF99減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。
FF99減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機
FF99減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
FF99減速機使用說明:
FF99減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
FF99減速機警告說明:由于FF99減速機發熱或FF99減速機油溫過高可能引起燙傷;對FF99減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
FF99減速機注意事項:若未注入正確的FF99減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
FF99減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見FF99減速機說明書安裝位置章節中的內容。剎車電機減速機
FF99減速機的螺母:立式安裝FF99減速機輸出法蘭螺母規格M16;FF99減速機螺母/螺母擰緊扭矩強度等級10.9。
FF99減速機型號:
SFF97-Y0.75KW,SFF97-Y1.1KW,SFF97-Y1.5KW,SFF97-Y100M4,SFF97-Y112M4,SFF97-Y11KW,SFF97-Y132M4,SFF97-Y15KW,SFF97-Y160M4,SFF97-Y18.5KW,SFF97-Y180M4,SFF97-Y2.2KW,SFF97-Y200M4,SFF97-Y22KW,SFF97-Y30KW,SFF97-Y3KW,SFF97-Y4KW,SFF97-Y5.5KW,SFF97-Y7.5KW,SFF97-Y80M4,SFF97-Y90M4,SFF97-YB100M4,SFF97-YB112M4,SFF97-YB132M4,SFF97-YB160M4,SFF97-YB180M4,SFF97-YB200M4,SFF97-YB80M4,SFF97-YB90M4,SFF97-YDP100M4,SFF97-YDP112M4,SFF97-YDP132M4,SFF97-YDP160M4,SFF97-YDP180M4,SFF97-YDP200M4,SFF97-YDP80M4,SFF97-YDP90M4,SFF97-YE100M4,SFF97-YE112M4,SFF97-YE132M4,SFF97-YE160M4,SFF97-YE180M4,SFF97-YE200M4,SFF97-YE80M4,SFF97-YE90M4,SFF97-YEJ100M4,SFF97-YEJ112M4,SFF97-YEJ132M4,SFF97-YEJ160M4,SFF97-YEJ180M4,SFF97-YEJ200M4,SFF97-YEJ80M4,SFF97-YEJ90M4,SFF97-YEJB100M4,SFF97-YEJB112M4,SFF97-YEJB132M4,SFF97-YEJB160M4,SFF97-YEJB180M4,SFF97-YEJB200M4,SFF97-YEJB80M4,SFF97-YEJB90M4,SFF97-YP100M4,SFF97-YP112M4,SFF97-YP132M4,SFF97-YP160M4,SFF97-YP180M4,SFF97-YP200M4,SFF97-YP80M4,SFF97-YP90M4,SFF97-YPB100M4,SFF97-YPB112M4,SFF97-YPB132M4,SFF97-YPB160M4,SFF97-YPB180M4,SFF97-YPB200M4,SFF97-YPB80M4,SFF97-YPB90M4,SFF97-YPE100M4,SFF97-YPE112M4,SFF97-YPE132M4,SFF97-YPE160M4,SFF97-YPE180M4,SFF97-YPE200M4,SFF97-YPE80M4,SFF97-YPE90M4,SFF97-YS100M4,SFF97-YS112M4,SFF97-YS132M4,SFF97-YS160M4,SFF97-YS180M4,SFF97-YS200M4,SFF97-YS80M4,SFF97-YS90M4,SFF97-YVB100M4,SFF97-YVB112M4,SFF97-YVB132M4,SFF97-YVB160M4,SFF97-YVB180M4,SFF97-YVB200M4,SFF97-YVB80M4,SFF97-YVB90M4,SFF97-YVP100M4,SFF97-YVP112M4,SFF97-YVP132M4,SFF97-YVP160M4,SFF97-YVP180M4,SFF97-YVP200M4,SFF97-YVP80M4,SFF97-YVP90M4,SFF97-YVPEJ100M4,SFF97-YVPEJ112M4,SFF97-YVPEJ132M4,SFF97-YVPEJ160M4,SFF97-YVPEJ180M4,SFF97-YVPEJ200M4,SFF97-YVPEJ80M4,SFF97-YVPEJ90M4,NFF97-Y0.75KW,NFF97-Y1.1KW,NFF97-Y1.5KW,NFF97-Y100M4,NFF97-Y112M4,NFF97-Y11KW,NFF97-Y132M4,NFF97-Y15KW,NFF97-Y160M4,NFF97-Y18.5KW,NFF97-Y180M4,NFF97-Y2.2KW,NFF97-Y200M4,NFF97-Y22KW,NFF97-Y30KW,NFF97-Y3KW,NFF97-Y4KW,NFF97-Y5.5KW,NFF97-Y7.5KW,NFF97-Y80M4,NFF97-Y90M4,NFF97-YB100M4,NFF97-YB112M4,NFF97-YB132M4,NFF97-YB160M4,NFF97-YB180M4,NFF97-YB200M4,NFF97-YB80M4,NFF97-YB90M4,NFF97-YDP100M4,NFF97-YDP112M4,NFF97-YDP132M4,NFF97-YDP160M4,NFF97-YDP180M4,NFF97-YDP200M4,NFF97-YDP80M4,NFF97-YDP90M4,NFF97-YE100M4,NFF97-YE112M4,NFF97-YE132M4,NFF97-YE160M4,NFF97-YE180M4,NFF97-YE200M4,NFF97-YE80M4,NFF97-YE90M4,NFF97-YEJ100M4,NFF97-YEJ112M4,NFF97-YEJ132M4,NFF97-YEJ160M4,NFF97-YEJ180M4,NFF97-YEJ200M4,NFF97-YEJ80M4,NFF97-YEJ90M4,NFF97-YEJB100M4,NFF97-YEJB112M4,NFF97-YEJB132M4,NFF97-YEJB160M4,NFF97-YEJB180M4,NFF97-YEJB200M4,NFF97-YEJB80M4,NFF97-YEJB90M4,NFF97-YP100M4,NFF97-YP112M4,NFF97-YP132M4,NFF97-YP160M4,NFF97-YP180M4,NFF97-YP200M4,NFF97-YP80M4,NFF97-YP90M4,NFF97-YPB100M4,NFF97-YPB112M4,NFF97-YPB132M4,NFF97-YPB160M4,NFF97-YPB180M4,NFF97-YPB200M4,NFF97-YPB80M4,NFF97-YPB90M4,NFF97-YPE100M4,NFF97-YPE112M4,NFF97-YPE132M4,NFF97-YPE160M4,NFF97-YPE180M4,NFF97-YPE200M4,NFF97-YPE80M4,NFF97-YPE90M4,NFF97-YS100M4,NFF97-YS112M4,NFF97-YS132M4,NFF97-YS160M4,NFF97-YS180M4,NFF97-YS200M4,NFF97-YS80M4,NFF97-YS90M4,NFF97-YVB100M4,NFF97-YVB112M4,NFF97-YVB132M4,NFF97-YVB160M4,NFF97-YVB180M4,NFF97-YVB200M4,NFF97-YVB80M4,NFF97-YVB90M4,NFF97-YVP100M4,NFF97-YVP112M4,NFF97-YVP132M4,NFF97-YVP160M4,NFF97-YVP180M4,NFF97-YVP200M4,NFF97-YVP80M4,NFF97-YVP90M4,NFF97-YVPEJ100M4,NFF97-YVPEJ112M4,NFF97-YVPEJ132M4,NFF97-YVPEJ160M4,NFF97-YVPEJ180M4,NFF97-YVPEJ200M4,NFF97-YVPEJ80M4,NFF97-YVPEJ90M4,WFF97-Y0.75KW,WFF97-Y1.1KW,WFF97-Y1.5KW,WFF97-Y100M4,WFF97-Y112M4,WFF97-Y11KW,WFF97-Y132M4,WFF97-Y15KW,WFF97-Y160M4,WFF97-Y18.5KW,WFF97-Y180M4,WFF97-Y2.2KW,WFF97-Y200M4,WFF97-Y22KW,WFF97-Y30KW,WFF97-Y3KW,WFF97-Y4KW,WFF97-Y5.5KW,WFF97-Y7.5KW,WFF97-Y80M4,WFF97-Y90M4,WFF97-YB100M4,WFF97-YB112M4,WFF97-YB132M4,WFF97-YB160M4,WFF97-YB180M4,WFF97-YB200M4,WFF97-YB80M4,WFF97-YB90M4,WFF97-YDP100M4,WFF97-YDP112M4,WFF97-YDP132M4,WFF97-YDP160M4,WFF97-YDP180M4,WFF97-YDP200M4,WFF97-YDP80M4,WFF97-YDP90M4,WFF97-YE100M4,WFF97-YE112M4,WFF97-YE132M4,WFF97-YE160M4,WFF97-YE180M4,WFF97-YE200M4,WFF97-YE80M4,WFF97-YE90M4,WFF97-YEJ100M4,WFF97-YEJ112M4,WFF97-YEJ132M4,WFF97-YEJ160M4,WFF97-YEJ180M4,WFF97-YEJ200M4,WFF97-YEJ80M4,WFF97-YEJ90M4,WFF97-YEJB100M4,WFF97-YEJB112M4,WFF97-YEJB132M4,WFF97-YEJB160M4,WFF97-YEJB180M4,WFF97-YEJB200M4,WFF97-YEJB80M4,WFF97-YEJB90M4,WFF97-YP100M4,WFF97-YP112M4,WFF97-YP132M4,WFF97-YP160M4,WFF97-YP180M4,WFF97-YP200M4,WFF97-YP80M4,WFF97-YP90M4,WFF97-YPB100M4,WFF97-YPB112M4,WFF97-YPB132M4,WFF97-YPB160M4,WFF97-YPB180M4,WFF97-YPB200M4,WFF97-YPB80M4,WFF97-YPB90M4,WFF97-YPE100M4,WFF97-YPE112M4,WFF97-YPE132M4,WFF97-YPE160M4,WFF97-YPE180M4,WFF97-YPE200M4,WFF97-YPE80M4,WFF97-YPE90M4,WFF97-YS100M4,WFF97-YS112M4,WFF97-YS132M4,WFF97-YS160M4,WFF97-YS180M4,WFF97-YS200M4,WFF97-YS80M4,WFF97-YS90M4,WFF97-YVB100M4,WFF97-YVB112M4,WFF97-YVB132M4,WFF97-YVB160M4,WFF97-YVB180M4,WFF97-YVB200M4,WFF97-YVB80M4,WFF97-YVB90M4,WFF97-YVP100M4,WFF97-YVP112M4,WFF97-YVP132M4,WFF97-YVP160M4,WFF97-YVP180M4,WFF97-YVP200M4,WFF97-YVP80M4,WFF97-YVP90M4,WFF97-YVPEJ100M4,WFF97-YVPEJ112M4,WFF97-YVPEJ132M4,WFF97-YVPEJ160M4,WFF97-YVPEJ180M4,WFF97-YVPEJ200M4,WFF97-YVPEJ80M4,WFF97-YVPEJ90M4,AFF97-Y0.75KW,AFF97-Y1.1KW,AFF97-Y1.5KW,AFF97-Y100M4,AFF97-Y112M4,AFF97-Y11KW,AFF97-Y132M4,AFF97-Y15KW,AFF97-Y160M4,AFF97-Y18.5KW,AFF97-Y180M4,AFF97-Y2.2KW,AFF97-Y200M4,AFF97-Y22KW,AFF97-Y30KW,AFF97-Y3KW,AFF97-Y4KW,AFF97-Y5.5KW,AFF97-Y7.5KW,AFF97-Y80M4,AFF97-Y90M4,AFF97-YB100M4,AFF97-YB112M4,AFF97-YB132M4,AFF97-YB160M4,AFF97-YB180M4,AFF97-YB200M4,AFF97-YB80M4,AFF97-YB90M4,AFF97-YDP100M4,AFF97-YDP112M4,AFF97-YDP132M4,AFF97-YDP160M4,AFF97-YDP180M4,AFF97-YDP200M4,AFF97-YDP80M4,AFF97-YDP90M4,AFF97-YE100M4,AFF97-YE112M4,AFF97-YE132M4,AFF97-YE160M4,AFF97-YE180M4,AFF97-YE200M4,AFF97-YE80M4,AFF97-YE90M4,AFF97-YEJ100M4,AFF97-YEJ112M4,AFF97-YEJ132M4,AFF97-YEJ160M4,AFF97-YEJ180M4,AFF97-YEJ200M4,AFF97-YEJ80M4,AFF97-YEJ90M4,AFF97-YEJB100M4,AFF97-YEJB112M4,AFF97-YEJB132M4,AFF97-YEJB160M4,AFF97-YEJB180M4,AFF97-YEJB200M4,AFF97-YEJB80M4,AFF97-YEJB90M4,AFF97-YP100M4,AFF97-YP112M4,AFF97-YP132M4,AFF97-YP160M4,AFF97-YP180M4,AFF97-YP200M4,AFF97-YP80M4,AFF97-YP90M4,AFF97-YPB100M4,AFF97-YPB112M4,AFF97-YPB132M4,AFF97-YPB160M4,AFF97-YPB180M4,AFF97-YPB200M4,AFF97-YPB80M4,AFF97-YPB90M4,AFF97-YPE100M4,AFF97-YPE112M4,AFF97-YPE132M4,AFF97-YPE160M4,AFF97-YPE180M4,AFF97-YPE200M4,AFF97-YPE80M4,AFF97-YPE90M4,AFF97-YS100M4,AFF97-YS112M4,AFF97-YS132M4,AFF97-YS160M4,AFF97-YS180M4,AFF97-YS200M4,AFF97-YS80M4,AFF97-YS90M4,AFF97-YVB100M4,AFF97-YVB112M4,AFF97-YVB132M4,AFF97-YVB160M4,AFF97-YVB180M4,AFF97-YVB200M4,AFF97-YVB80M4,AFF97-YVB90M4,AFF97-YVP100M4,AFF97-YVP112M4,AFF97-YVP132M4,AFF97-YVP160M4,AFF97-YVP180M4,AFF97-YVP200M4,AFF97-YVP80M4,AFF97-YVP90M4,AFF97-YVPEJ100M4,AFF97-YVPEJ112M4,AFF97-YVPEJ132M4,AFF97-YVPEJ160M4,AFF97-YVPEJ180M4,AFF97-YVPEJ200M4,AFF97-YVPEJ80M4,AFF97-YVPEJ90M4,GFF99-Y0.75KW,GFF99-Y1.1KW,GFF99-Y1.5KW,GFF99-Y100M4,GFF99-Y112M4,GFF99-Y11KW,GFF99-Y132M4,GFF99-Y15KW,GFF99-Y160M4,GFF99-Y18.5KW,GFF99-Y180M4,GFF99-Y2.2KW,GFF99-Y200M4,GFF99-Y22KW,GFF99-Y30KW,GFF99-Y3KW,GFF99-Y4KW,GFF99-Y5.5KW,GFF99-Y7.5KW,GFF99-Y80M4,GFF99-Y90M4,GFF99-YB100M4,GFF99-YB112M4,GFF99-YB132M4,GFF99-YB160M4,GFF99-YB180M4,GFF99-YB200M4,GFF99-YB80M4,GFF99-YB90M4,GFF99-YDP100M4,GFF99-YDP112M4,GFF99-YDP132M4,GFF99-YDP160M4,GFF99-YDP180M4,GFF99-YDP200M4,GFF99-YDP80M4,GFF99-YDP90M4,GFF99-YE100M4,GFF99-YE112M4,GFF99-YE132M4,GFF99-YE160M4,GFF99-YE180M4,GFF99-YE200M4,GFF99-YE80M4,GFF99-YE90M4,GFF99-YEJ100M4,GFF99-YEJ112M4,GFF99-YEJ132M4,GFF99-YEJ160M4,GFF99-YEJ180M4,GFF99-YEJ200M4,GFF99-YEJ80M4,GFF99-YEJ90M4,GFF99-YEJB100M4,GFF99-YEJB112M4,GFF99-YEJB132M4,GFF99-YEJB160M4,GFF99-YEJB180M4,GFF99-YEJB200M4,GFF99-YEJB80M4,GFF99-YEJB90M4,GFF99-YP100M4,GFF99-YP112M4,GFF99-YP132M4,GFF99-YP160M4,GFF99-YP180M4,GFF99-YP200M4,GFF99-YP80M4,GFF99-YP90M4,GFF99-YPB100M4,GFF99-YPB112M4,GFF99-YPB132M4,GFF99-YPB160M4,GFF99-YPB180M4,GFF99-YPB200M4,GFF99-YPB80M4,GFF99-YPB90M4,GFF99-YPE100M4,GFF99-YPE112M4,GFF99-YPE132M4,GFF99-YPE160M4,GFF99-YPE180M4,GFF99-YPE200M4,GFF99-YPE80M4,GFF99-YPE90M4,GFF99-YS100M4,GFF99-YS112M4,GFF99-YS132M4,GFF99-YS160M4,GFF99-YS180M4,GFF99-YS200M4,GFF99-YS80M4,GFF99-YS90M4,GFF99-YVB100M4,GFF99-YVB112M4,GFF99-YVB132M4,GFF99-YVB160M4,GFF99-YVB180M4,GFF99-YVB200M4,GFF99-YVB80M4,GFF99-YVB90M4,GFF99-YVP100M4,GFF99-YVP112M4,GFF99-YVP132M4,GFF99-YVP160M4,GFF99-YVP180M4,GFF99-YVP200M4,GFF99-YVP80M4,GFF99-YVP90M4,GFF99-YVPEJ100M4,GFF99-YVPEJ112M4,GFF99-YVPEJ132M4,GFF99-YVPEJ160M4,GFF99-YVPEJ180M4,GFF99-YVPEJ200M4,GFF99-YVPEJ80M4,GFF99-YVPEJ90M4。
FF99減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-ffxiliejiansuji-cn.html
推薦類似型號:F99減速機
關鍵詞:帶抱閘減速機馬達一體機_帶剎車電機減速機_FF系列減速器_制動電機減速機_減速器帶抱閘_減速機帶抱閘_FF系列減速機_FF型減速機_GFF系列減速機_帶剎車減速機_帶制動減速機_抱閘電機減速機
FF系列齒輪減速電機型號:FF29減速機,FF39減速機,FF49減速機,FF69減速機,FF79減速機,FF89減速機,FF99減速機,FF109減速機,FF129減速機,FF159減速機
FF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
