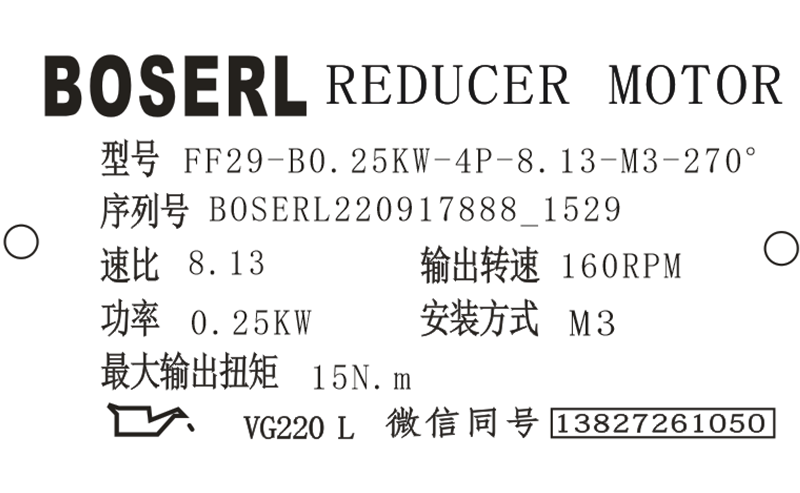

FF29減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF29減速機選型樣本。
FF29-YVPEJ0.25KW-4P-8.13-M3-270°
FF:系列代號
29:減速機規格代號
Y:電機
VPEJ:變頻剎車電機
0.25KW:電機功率
4P:電機級數
8.13:減速機傳動比
M3:減速機安裝位置
270°:接線盒位置
FF29減速機潤滑油型號:
FF29減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF29減速機選型樣本中列出了安裝位置從M1到M6FF29減速機相應的潤滑油加注標準,請自行下載查看。平行軸斜齒輪減速機
FF29減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據FF29減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“FF29減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。
FF29減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機
FF29減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
FF29減速機使用說明:
FF29減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
FF29減速機警告說明:由于FF29減速機發熱或FF29減速機油溫過高可能引起燙傷;對FF29減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
FF29減速機注意事項:若未注入正確的FF29減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
FF29減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見FF29減速機說明書安裝位置章節中的內容。剎車電機減速機
FF29減速機的螺母:立式安裝FF29減速機輸出法蘭螺母規格M8;FF29減速機螺母/螺母擰緊扭矩強度等級10.9。
FF29減速機型號:
AFF27-Y0.12KW,AFF27-Y0.18KW,AFF27-Y0.25KW,AFF27-Y0.37KW,AFF27-Y0.55KW,AFF27-Y0.75KW,AFF27-Y1.1KW,AFF27-Y1.5KW,AFF27-Y2.2KW,AFF27-Y3KW,AFF27-YB100M4,AFF27-YB63M4,AFF27-YB71M4,AFF27-YB80M4,AFF27-YB90M4,AFF27-YDP100M4,AFF27-YDP63M4,AFF27-YDP71M4,AFF27-YDP80M4,AFF27-YDP90M4,AFF27-YE100M4,AFF27-YE63M4,AFF27-YE71M4,AFF27-YE80M4,AFF27-YE90M4,AFF27-YEJ100M4,AFF27-YEJ63M4,AFF27-YEJ71M4,AFF27-YEJ80M4,AFF27-YEJ90M4,AFF27-YEJB100M4,AFF27-YEJB63M4,AFF27-YEJB71M4,AFF27-YEJB80M4,AFF27-YEJB90M4,AFF27-YP100M4,AFF27-YP63M4,AFF27-YP71M4,AFF27-YP80M4,AFF27-YP90M4,AFF27-YPB100M4,AFF27-YPB63M4,AFF27-YPB71M4,AFF27-YPB80M4,AFF27-YPB90M4,AFF27-YPE100M4,AFF27-YPE63M4,AFF27-YPE71M4,AFF27-YPE80M4,AFF27-YPE90M4,AFF27-YS100M4,AFF27-YS63M4,AFF27-YS71M4,AFF27-YS80M4,AFF27-YS90M4,AFF27-YVB100M4,AFF27-YVB63M4,AFF27-YVB71M4,AFF27-YVB80M4,AFF27-YVB90M4,AFF27-YVP100M4,AFF27-YVP63M4,AFF27-YVP71M4,AFF27-YVP80M4,AFF27-YVP90M4,AFF27-YVPEJ100M4,AFF27-YVPEJ63M4,AFF27-YVPEJ71M4,AFF27-YVPEJ80M4,AFF27-YVPEJ90M4,AFF27-Y63M4,AFF27-Y71M4,AFF27-Y80M4,AFF27-Y90M4,AFF27-Y100M4,NFF27-Y0.12KW,NFF27-Y0.18KW,NFF27-Y0.25KW,NFF27-Y0.37KW,NFF27-Y0.55KW,NFF27-Y0.75KW,NFF27-Y1.1KW,NFF27-Y1.5KW,NFF27-Y2.2KW,NFF27-Y3KW,NFF27-YB100M4,NFF27-YB63M4,NFF27-YB71M4,NFF27-YB80M4,NFF27-YB90M4,NFF27-YDP100M4,NFF27-YDP63M4,NFF27-YDP71M4,NFF27-YDP80M4,NFF27-YDP90M4,NFF27-YE100M4,NFF27-YE63M4,NFF27-YE71M4,NFF27-YE80M4,NFF27-YE90M4,NFF27-YEJ100M4,NFF27-YEJ63M4,NFF27-YEJ71M4,NFF27-YEJ80M4,NFF27-YEJ90M4,NFF27-YEJB100M4,NFF27-YEJB63M4,NFF27-YEJB71M4,NFF27-YEJB80M4,NFF27-YEJB90M4,NFF27-YP100M4,NFF27-YP63M4,NFF27-YP71M4,NFF27-YP80M4,NFF27-YP90M4,NFF27-YPB100M4,NFF27-YPB63M4,NFF27-YPB71M4,NFF27-YPB80M4,NFF27-YPB90M4,NFF27-YPE100M4,NFF27-YPE63M4,NFF27-YPE71M4,NFF27-YPE80M4,NFF27-YPE90M4,NFF27-YS100M4,NFF27-YS63M4,NFF27-YS71M4,NFF27-YS80M4,NFF27-YS90M4,NFF27-YVB100M4,NFF27-YVB63M4,NFF27-YVB71M4,NFF27-YVB80M4,NFF27-YVB90M4,NFF27-YVP100M4,NFF27-YVP63M4,NFF27-YVP71M4,NFF27-YVP80M4,NFF27-YVP90M4,NFF27-YVPEJ100M4,NFF27-YVPEJ63M4,NFF27-YVPEJ71M4,NFF27-YVPEJ80M4,NFF27-YVPEJ90M4,NFF27-Y63M4,NFF27-Y71M4,NFF27-Y80M4,NFF27-Y90M4,NFF27-Y100M4,WFF27-Y0.12KW,WFF27-Y0.18KW,WFF27-Y0.25KW,WFF27-Y0.37KW,WFF27-Y0.55KW,WFF27-Y0.75KW,WFF27-Y1.1KW,WFF27-Y1.5KW,WFF27-Y2.2KW,WFF27-Y3KW,WFF27-YB100M4,WFF27-YB63M4,WFF27-YB71M4,WFF27-YB80M4,WFF27-YB90M4,WFF27-YDP100M4,WFF27-YDP63M4,WFF27-YDP71M4,WFF27-YDP80M4,WFF27-YDP90M4,WFF27-YE100M4,WFF27-YE63M4,WFF27-YE71M4,WFF27-YE80M4,WFF27-YE90M4,WFF27-YEJ100M4,WFF27-YEJ63M4,WFF27-YEJ71M4,WFF27-YEJ80M4,WFF27-YEJ90M4,WFF27-YEJB100M4,WFF27-YEJB63M4,WFF27-YEJB71M4,WFF27-YEJB80M4,WFF27-YEJB90M4,WFF27-YP100M4,WFF27-YP63M4,WFF27-YP71M4,WFF27-YP80M4,WFF27-YP90M4,WFF27-YPB100M4,WFF27-YPB63M4,WFF27-YPB71M4,WFF27-YPB80M4,WFF27-YPB90M4,WFF27-YPE100M4,WFF27-YPE63M4,WFF27-YPE71M4,WFF27-YPE80M4,WFF27-YPE90M4,WFF27-YS100M4,WFF27-YS63M4,WFF27-YS71M4,WFF27-YS80M4,WFF27-YS90M4,WFF27-YVB100M4,WFF27-YVB63M4,WFF27-YVB71M4,WFF27-YVB80M4,WFF27-YVB90M4,WFF27-YVP100M4,WFF27-YVP63M4,WFF27-YVP71M4,WFF27-YVP80M4,WFF27-YVP90M4,WFF27-YVPEJ100M4,WFF27-YVPEJ63M4,WFF27-YVPEJ71M4,WFF27-YVPEJ80M4,WFF27-YVPEJ90M4,WFF27-Y63M4,WFF27-Y71M4,WFF27-Y80M4,WFF27-Y90M4,WFF27-Y100M4,SFF27-Y0.12KW,SFF27-Y0.18KW,SFF27-Y0.25KW,SFF27-Y0.37KW,SFF27-Y0.55KW,SFF27-Y0.75KW,SFF27-Y1.1KW,SFF27-Y1.5KW,SFF27-Y2.2KW,SFF27-Y3KW,SFF27-YB100M4,SFF27-YB63M4,SFF27-YB71M4,SFF27-YB80M4,SFF27-YB90M4,SFF27-YDP100M4,SFF27-YDP63M4,SFF27-YDP71M4,SFF27-YDP80M4,SFF27-YDP90M4,SFF27-YE100M4,SFF27-YE63M4,SFF27-YE71M4,SFF27-YE80M4,SFF27-YE90M4,SFF27-YEJ100M4,SFF27-YEJ63M4,SFF27-YEJ71M4,SFF27-YEJ80M4,SFF27-YEJ90M4,SFF27-YEJB100M4,SFF27-YEJB63M4,SFF27-YEJB71M4,SFF27-YEJB80M4,SFF27-YEJB90M4,SFF27-YP100M4,SFF27-YP63M4,SFF27-YP71M4,SFF27-YP80M4,SFF27-YP90M4,SFF27-YPB100M4,SFF27-YPB63M4,SFF27-YPB71M4,SFF27-YPB80M4,SFF27-YPB90M4,SFF27-YPE100M4,SFF27-YPE63M4,SFF27-YPE71M4,SFF27-YPE80M4,SFF27-YPE90M4,SFF27-YS100M4,SFF27-YS63M4,SFF27-YS71M4,SFF27-YS80M4,SFF27-YS90M4,SFF27-YVB100M4,SFF27-YVB63M4,SFF27-YVB71M4,SFF27-YVB80M4,SFF27-YVB90M4,SFF27-YVP100M4,SFF27-YVP63M4,SFF27-YVP71M4,SFF27-YVP80M4,SFF27-YVP90M4,SFF27-YVPEJ100M4,SFF27-YVPEJ63M4,SFF27-YVPEJ71M4,SFF27-YVPEJ80M4,SFF27-YVPEJ90M4,SFF27-Y63M4,SFF27-Y71M4,SFF27-Y80M4,SFF27-Y90M4,SFF27-Y100M4,GFF29-Y0.12KW,GFF29-Y0.18KW,GFF29-Y0.25KW,GFF29-Y0.37KW,GFF29-Y0.55KW,GFF29-Y0.75KW,GFF29-Y1.1KW,GFF29-Y1.5KW,GFF29-Y2.2KW,GFF29-Y3KW,GFF29-YB100M4,GFF29-YB63M4,GFF29-YB71M4,GFF29-YB80M4,GFF29-YB90M4,GFF29-YDP100M4,GFF29-YDP63M4,GFF29-YDP71M4,GFF29-YDP80M4,GFF29-YDP90M4,GFF29-YE100M4,GFF29-YE63M4,GFF29-YE71M4,GFF29-YE80M4,GFF29-YE90M4,GFF29-YEJ100M4,GFF29-YEJ63M4,GFF29-YEJ71M4,GFF29-YEJ80M4,GFF29-YEJ90M4,GFF29-YEJB100M4,GFF29-YEJB63M4,GFF29-YEJB71M4,GFF29-YEJB80M4,GFF29-YEJB90M4,GFF29-YP100M4,GFF29-YP63M4,GFF29-YP71M4,GFF29-YP80M4,GFF29-YP90M4,GFF29-YPB100M4,GFF29-YPB63M4,GFF29-YPB71M4,GFF29-YPB80M4,GFF29-YPB90M4,GFF29-YPE100M4,GFF29-YPE63M4,GFF29-YPE71M4,GFF29-YPE80M4,GFF29-YPE90M4,GFF29-YS100M4,GFF29-YS63M4,GFF29-YS71M4,GFF29-YS80M4,GFF29-YS90M4,GFF29-YVB100M4,GFF29-YVB63M4,GFF29-YVB71M4,GFF29-YVB80M4,GFF29-YVB90M4,GFF29-YVP100M4,GFF29-YVP63M4,GFF29-YVP71M4,GFF29-YVP80M4,GFF29-YVP90M4,GFF29-YVPEJ100M4,GFF29-YVPEJ63M4,GFF29-YVPEJ71M4,GFF29-YVPEJ80M4,GFF29-YVPEJ90M4,GFF29-Y63M4,GFF29-Y71M4,GFF29-Y80M4,GFF29-Y90M4,GFF29-Y100M4。
FF29減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-ffxiliejiansuji-cn.html
推薦類似型號:F29減速機
關鍵詞:帶抱閘減速機馬達一體機_帶剎車電機減速機_FF系列減速器_制動電機減速機_減速器帶抱閘_減速機帶抱閘_FF系列減速機_FF型減速機_GFF系列減速機_帶剎車減速機_帶制動減速機_抱閘電機減速機
FF系列齒輪減速電機型號:FF29減速機,FF39減速機,FF49減速機,FF69減速機,FF79減速機,FF89減速機,FF99減速機,FF109減速機,FF129減速機,FF159減速機
FF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
