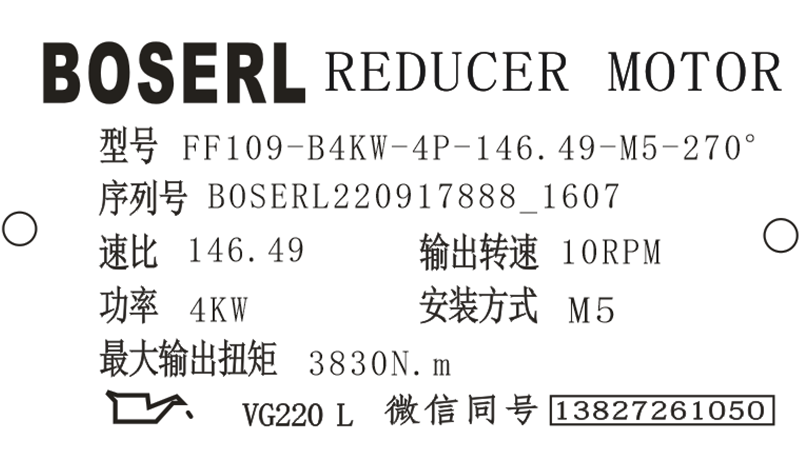

FF109減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF109減速機選型樣本。

FF109-YVPEJ4KW-4P-146.49-M5-270°

FF：系列代號

109：減速機規格代號

Y：電機

VPEJ：變頻剎車電機

4KW：電機功率

4P：電機級數

146.49：減速機傳動比

M5：減速機安裝位置

270°：接線盒位置

FF109減速機潤滑油型號：

FF109減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF109減速機選型樣本中列出了安裝位置從M1到M6FF109減速機相應的潤滑油加注標準，請自行下載查看。平行軸斜齒輪減速機

FF109減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據FF109減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“FF109減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。

FF109減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

FF109減速機推薦使用的潤滑油，其等級和粘度指標見下表：

FF109減速機使用說明：

FF109減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

FF109減速機警告說明：由于FF109減速機發熱或FF109減速機油溫過高可能引起燙傷；對FF29減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

FF109減速機注意事項：若未注入正確的FF109減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

FF109減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見FF109減速機說明書安裝位置章節中的內容。剎車電機減速機

FF109減速機的螺母：立式安裝FF109減速機輸出法蘭螺母規格M16；FF109減速機螺母/螺母擰緊扭矩強度等級10.9。

FF109減速機型號：

NFF107-Y1.5KW，NFF107-Y100M4，NFF107-Y112M4，NFF107-Y11KW，NFF107-Y132M4，NFF107-Y15KW，NFF107-Y160M4，NFF107-Y18.5KW，NFF107-Y180M4，NFF107-Y2.2KW，NFF107-Y200M4，NFF107-Y225M4，NFF107-Y22KW，NFF107-Y30KW，NFF107-Y37KW，NFF107-Y3KW，NFF107-Y45KW，NFF107-Y4KW，NFF107-Y5.5KW，NFF107-Y7.5KW，NFF107-Y80M4，NFF107-Y90M4，NFF107-YB100M4，NFF107-YB112M4，NFF107-YB132M4，NFF107-YB160M4，NFF107-YB180M4，NFF107-YB200M4，NFF107-YB225M4，NFF107-YB80M4，NFF107-YB90M4，NFF107-YDP100M4，NFF107-YDP112M4，NFF107-YDP132M4，NFF107-YDP160M4，NFF107-YDP180M4，NFF107-YDP200M4，NFF107-YDP225M4，NFF107-YDP80M4，NFF107-YDP90M4，NFF107-YE100M4，NFF107-YE112M4，NFF107-YE132M4，NFF107-YE160M4，NFF107-YE180M4，NFF107-YE200M4，NFF107-YE225M4，NFF107-YE80M4，NFF107-YE90M4，NFF107-YEJ100M4，NFF107-YEJ112M4，NFF107-YEJ132M4，NFF107-YEJ160M4，NFF107-YEJ180M4，NFF107-YEJ200M4，NFF107-YEJ225M4，NFF107-YEJ80M4，NFF107-YEJ90M4，NFF107-YEJB100M4，NFF107-YEJB112M4，NFF107-YEJB132M4，NFF107-YEJB160M4，NFF107-YEJB180M4，NFF107-YEJB200M4，NFF107-YEJB225M4，NFF107-YEJB80M4，NFF107-YEJB90M4，NFF107-YP100M4，NFF107-YP112M4，NFF107-YP132M4，NFF107-YP160M4，NFF107-YP180M4，NFF107-YP200M4，NFF107-YP225M4，NFF107-YP80M4，NFF107-YP90M4，NFF107-YPB100M4，NFF107-YPB112M4，NFF107-YPB132M4，NFF107-YPB160M4，NFF107-YPB180M4，NFF107-YPB200M4，NFF107-YPB225M4，NFF107-YPB80M4，NFF107-YPB90M4，NFF107-YPE100M4，NFF107-YPE112M4，NFF107-YPE132M4，NFF107-YPE160M4，NFF107-YPE180M4，NFF107-YPE200M4，NFF107-YPE225M4，NFF107-YPE80M4，NFF107-YPE90M4，NFF107-YS100M4，NFF107-YS112M4，NFF107-YS132M4，NFF107-YS160M4，NFF107-YS180M4，NFF107-YS200M4，NFF107-YS225M4，NFF107-YS80M4，NFF107-YS90M4，NFF107-YVB100M4，NFF107-YVB112M4，NFF107-YVB132M4，NFF107-YVB160M4，NFF107-YVB180M4，NFF107-YVB200M4，NFF107-YVB225M4，NFF107-YVB80M4，NFF107-YVB90M4，NFF107-YVP100M4，NFF107-YVP112M4，NFF107-YVP132M4，NFF107-YVP160M4，NFF107-YVP180M4，NFF107-YVP200M4，NFF107-YVP225M4，NFF107-YVP80M4，NFF107-YVP90M4，NFF107-YVPEJ100M4，NFF107-YVPEJ112M4，NFF107-YVPEJ132M4，NFF107-YVPEJ160M4，NFF107-YVPEJ180M4，NFF107-YVPEJ200M4，NFF107-YVPEJ225M4，NFF107-YVPEJ80M4，NFF107-YVPEJ90M4，SFF107-Y1.5KW，SFF107-Y100M4，SFF107-Y112M4，SFF107-Y11KW，SFF107-Y132M4，SFF107-Y15KW，SFF107-Y160M4，SFF107-Y18.5KW，SFF107-Y180M4，SFF107-Y2.2KW，SFF107-Y200M4，SFF107-Y225M4，SFF107-Y22KW，SFF107-Y30KW，SFF107-Y37KW，SFF107-Y3KW，SFF107-Y45KW，SFF107-Y4KW，SFF107-Y5.5KW，SFF107-Y7.5KW，SFF107-Y80M4，SFF107-Y90M4，SFF107-YB100M4，SFF107-YB112M4，SFF107-YB132M4，SFF107-YB160M4，SFF107-YB180M4，SFF107-YB200M4，SFF107-YB225M4，SFF107-YB80M4，SFF107-YB90M4，SFF107-YDP100M4，SFF107-YDP112M4，SFF107-YDP132M4，SFF107-YDP160M4，SFF107-YDP180M4，SFF107-YDP200M4，SFF107-YDP225M4，SFF107-YDP80M4，SFF107-YDP90M4，SFF107-YE100M4，SFF107-YE112M4，SFF107-YE132M4，SFF107-YE160M4，SFF107-YE180M4，SFF107-YE200M4，SFF107-YE225M4，SFF107-YE80M4，SFF107-YE90M4，SFF107-YEJ100M4，SFF107-YEJ112M4，SFF107-YEJ132M4，SFF107-YEJ160M4，SFF107-YEJ180M4，SFF107-YEJ200M4，SFF107-YEJ225M4，SFF107-YEJ80M4，SFF107-YEJ90M4，SFF107-YEJB100M4，SFF107-YEJB112M4，SFF107-YEJB132M4，SFF107-YEJB160M4，SFF107-YEJB180M4，SFF107-YEJB200M4，SFF107-YEJB225M4，SFF107-YEJB80M4，SFF107-YEJB90M4，SFF107-YP100M4，SFF107-YP112M4，SFF107-YP132M4，SFF107-YP160M4，SFF107-YP180M4，SFF107-YP200M4，SFF107-YP225M4，SFF107-YP80M4，SFF107-YP90M4，SFF107-YPB100M4，SFF107-YPB112M4，SFF107-YPB132M4，SFF107-YPB160M4，SFF107-YPB180M4，SFF107-YPB200M4，SFF107-YPB225M4，SFF107-YPB80M4，SFF107-YPB90M4，SFF107-YPE100M4，SFF107-YPE112M4，SFF107-YPE132M4，SFF107-YPE160M4，SFF107-YPE180M4，SFF107-YPE200M4，SFF107-YPE225M4，SFF107-YPE80M4，SFF107-YPE90M4，SFF107-YS100M4，SFF107-YS112M4，SFF107-YS132M4，SFF107-YS160M4，SFF107-YS180M4，SFF107-YS200M4，SFF107-YS225M4，SFF107-YS80M4，SFF107-YS90M4，SFF107-YVB100M4，SFF107-YVB112M4，SFF107-YVB132M4，SFF107-YVB160M4，SFF107-YVB180M4，SFF107-YVB200M4，SFF107-YVB225M4，SFF107-YVB80M4，SFF107-YVB90M4，SFF107-YVP100M4，SFF107-YVP112M4，SFF107-YVP132M4，SFF107-YVP160M4，SFF107-YVP180M4，SFF107-YVP200M4，SFF107-YVP225M4，SFF107-YVP80M4，SFF107-YVP90M4，SFF107-YVPEJ100M4，SFF107-YVPEJ112M4，SFF107-YVPEJ132M4，SFF107-YVPEJ160M4，SFF107-YVPEJ180M4，SFF107-YVPEJ200M4，SFF107-YVPEJ225M4，SFF107-YVPEJ80M4，SFF107-YVPEJ90M4，WFF107-Y1.5KW，WFF107-Y100M4，WFF107-Y112M4，WFF107-Y11KW，WFF107-Y132M4，WFF107-Y15KW，WFF107-Y160M4，WFF107-Y18.5KW，WFF107-Y180M4，WFF107-Y2.2KW，WFF107-Y200M4，WFF107-Y225M4，WFF107-Y22KW，WFF107-Y30KW，WFF107-Y37KW，WFF107-Y3KW，WFF107-Y45KW，WFF107-Y4KW，WFF107-Y5.5KW，WFF107-Y7.5KW，WFF107-Y80M4，WFF107-Y90M4，WFF107-YB100M4，WFF107-YB112M4，WFF107-YB132M4，WFF107-YB160M4，WFF107-YB180M4，WFF107-YB200M4，WFF107-YB225M4，WFF107-YB80M4，WFF107-YB90M4，WFF107-YDP100M4，WFF107-YDP112M4，WFF107-YDP132M4，WFF107-YDP160M4，WFF107-YDP180M4，WFF107-YDP200M4，WFF107-YDP225M4，WFF107-YDP80M4，WFF107-YDP90M4，WFF107-YE100M4，WFF107-YE112M4，WFF107-YE132M4，WFF107-YE160M4，WFF107-YE180M4，WFF107-YE200M4，WFF107-YE225M4，WFF107-YE80M4，WFF107-YE90M4，WFF107-YEJ100M4，WFF107-YEJ112M4，WFF107-YEJ132M4，WFF107-YEJ160M4，WFF107-YEJ180M4，WFF107-YEJ200M4，WFF107-YEJ225M4，WFF107-YEJ80M4，WFF107-YEJ90M4，WFF107-YEJB100M4，WFF107-YEJB112M4，WFF107-YEJB132M4，WFF107-YEJB160M4，WFF107-YEJB180M4，WFF107-YEJB200M4，WFF107-YEJB225M4，WFF107-YEJB80M4，WFF107-YEJB90M4，WFF107-YP100M4，WFF107-YP112M4，WFF107-YP132M4，WFF107-YP160M4，WFF107-YP180M4，WFF107-YP200M4，WFF107-YP225M4，WFF107-YP80M4，WFF107-YP90M4，WFF107-YPB100M4，WFF107-YPB112M4，WFF107-YPB132M4，WFF107-YPB160M4，WFF107-YPB180M4，WFF107-YPB200M4，WFF107-YPB225M4，WFF107-YPB80M4，WFF107-YPB90M4，WFF107-YPE100M4，WFF107-YPE112M4，WFF107-YPE132M4，WFF107-YPE160M4，WFF107-YPE180M4，WFF107-YPE200M4，WFF107-YPE225M4，WFF107-YPE80M4，WFF107-YPE90M4，WFF107-YS100M4，WFF107-YS112M4，WFF107-YS132M4，WFF107-YS160M4，WFF107-YS180M4，WFF107-YS200M4，WFF107-YS225M4，WFF107-YS80M4，WFF107-YS90M4，WFF107-YVB100M4，WFF107-YVB112M4，WFF107-YVB132M4，WFF107-YVB160M4，WFF107-YVB180M4，WFF107-YVB200M4，WFF107-YVB225M4，WFF107-YVB80M4，WFF107-YVB90M4，WFF107-YVP100M4，WFF107-YVP112M4，WFF107-YVP132M4，WFF107-YVP160M4，WFF107-YVP180M4，WFF107-YVP200M4，WFF107-YVP225M4，WFF107-YVP80M4，WFF107-YVP90M4，WFF107-YVPEJ100M4，WFF107-YVPEJ112M4，WFF107-YVPEJ132M4，WFF107-YVPEJ160M4，WFF107-YVPEJ180M4，WFF107-YVPEJ200M4，WFF107-YVPEJ225M4，WFF107-YVPEJ80M4，WFF107-YVPEJ90M4，AFF107-Y1.5KW，AFF107-Y100M4，AFF107-Y112M4，AFF107-Y11KW，AFF107-Y132M4，AFF107-Y15KW，AFF107-Y160M4，AFF107-Y18.5KW，AFF107-Y180M4，AFF107-Y2.2KW，AFF107-Y200M4，AFF107-Y225M4，AFF107-Y22KW，AFF107-Y30KW，AFF107-Y37KW，AFF107-Y3KW，AFF107-Y45KW，AFF107-Y4KW，AFF107-Y5.5KW，AFF107-Y7.5KW，AFF107-Y80M4，AFF107-Y90M4，AFF107-YB100M4，AFF107-YB112M4，AFF107-YB132M4，AFF107-YB160M4，AFF107-YB180M4，AFF107-YB200M4，AFF107-YB225M4，AFF107-YB80M4，AFF107-YB90M4，AFF107-YDP100M4，AFF107-YDP112M4，AFF107-YDP132M4，AFF107-YDP160M4，AFF107-YDP180M4，AFF107-YDP200M4，AFF107-YDP225M4，AFF107-YDP80M4，AFF107-YDP90M4，AFF107-YE100M4，AFF107-YE112M4，AFF107-YE132M4，AFF107-YE160M4，AFF107-YE180M4，AFF107-YE200M4，AFF107-YE225M4，AFF107-YE80M4，AFF107-YE90M4，AFF107-YEJ100M4，AFF107-YEJ112M4，AFF107-YEJ132M4，AFF107-YEJ160M4，AFF107-YEJ180M4，AFF107-YEJ200M4，AFF107-YEJ225M4，AFF107-YEJ80M4，AFF107-YEJ90M4，AFF107-YEJB100M4，AFF107-YEJB112M4，AFF107-YEJB132M4，AFF107-YEJB160M4，AFF107-YEJB180M4，AFF107-YEJB200M4，AFF107-YEJB225M4，AFF107-YEJB80M4，AFF107-YEJB90M4，AFF107-YP100M4，AFF107-YP112M4，AFF107-YP132M4，AFF107-YP160M4，AFF107-YP180M4，AFF107-YP200M4，AFF107-YP225M4，AFF107-YP80M4，AFF107-YP90M4，AFF107-YPB100M4，AFF107-YPB112M4，AFF107-YPB132M4，AFF107-YPB160M4，AFF107-YPB180M4，AFF107-YPB200M4，AFF107-YPB225M4，AFF107-YPB80M4，AFF107-YPB90M4，AFF107-YPE100M4，AFF107-YPE112M4，AFF107-YPE132M4，AFF107-YPE160M4，AFF107-YPE180M4，AFF107-YPE200M4，AFF107-YPE225M4，AFF107-YPE80M4，AFF107-YPE90M4，AFF107-YS100M4，AFF107-YS112M4，AFF107-YS132M4，AFF107-YS160M4，AFF107-YS180M4，AFF107-YS200M4，AFF107-YS225M4，AFF107-YS80M4，AFF107-YS90M4，AFF107-YVB100M4，AFF107-YVB112M4，AFF107-YVB132M4，AFF107-YVB160M4，AFF107-YVB180M4，AFF107-YVB200M4，AFF107-YVB225M4，AFF107-YVB80M4，AFF107-YVB90M4，AFF107-YVP100M4，AFF107-YVP112M4，AFF107-YVP132M4，AFF107-YVP160M4，AFF107-YVP180M4，AFF107-YVP200M4，AFF107-YVP225M4，AFF107-YVP80M4，AFF107-YVP90M4，AFF107-YVPEJ100M4，AFF107-YVPEJ112M4，AFF107-YVPEJ132M4，AFF107-YVPEJ160M4，AFF107-YVPEJ180M4，AFF107-YVPEJ200M4，AFF107-YVPEJ225M4，AFF107-YVPEJ80M4，AFF107-YVPEJ90M4，GFF109-Y1.5KW，GFF109-Y100M4，GFF109-Y112M4，GFF109-Y11KW，GFF109-Y132M4，GFF109-Y15KW，GFF109-Y160M4，GFF109-Y18.5KW，GFF109-Y180M4，GFF109-Y2.2KW，GFF109-Y200M4，GFF109-Y225M4，GFF109-Y22KW，GFF109-Y30KW，GFF109-Y37KW，GFF109-Y3KW，GFF109-Y45KW，GFF109-Y4KW，GFF109-Y5.5KW，GFF109-Y7.5KW，GFF109-Y80M4，GFF109-Y90M4，GFF109-YB100M4，GFF109-YB112M4，GFF109-YB132M4，GFF109-YB160M4，GFF109-YB180M4，GFF109-YB200M4，GFF109-YB225M4，GFF109-YB80M4，GFF109-YB90M4，GFF109-YDP100M4，GFF109-YDP112M4，GFF109-YDP132M4，GFF109-YDP160M4，GFF109-YDP180M4，GFF109-YDP200M4，GFF109-YDP225M4，GFF109-YDP80M4，GFF109-YDP90M4，GFF109-YE100M4，GFF109-YE112M4，GFF109-YE132M4，GFF109-YE160M4，GFF109-YE180M4，GFF109-YE200M4，GFF109-YE225M4，GFF109-YE80M4，GFF109-YE90M4，GFF109-YEJ100M4，GFF109-YEJ112M4，GFF109-YEJ132M4，GFF109-YEJ160M4，GFF109-YEJ180M4，GFF109-YEJ200M4，GFF109-YEJ225M4，GFF109-YEJ80M4，GFF109-YEJ90M4，GFF109-YEJB100M4，GFF109-YEJB112M4，GFF109-YEJB132M4，GFF109-YEJB160M4，GFF109-YEJB180M4，GFF109-YEJB200M4，GFF109-YEJB225M4，GFF109-YEJB80M4，GFF109-YEJB90M4，GFF109-YP100M4，GFF109-YP112M4，GFF109-YP132M4，GFF109-YP160M4，GFF109-YP180M4，GFF109-YP200M4，GFF109-YP225M4，GFF109-YP80M4，GFF109-YP90M4，GFF109-YPB100M4，GFF109-YPB112M4，GFF109-YPB132M4，GFF109-YPB160M4，GFF109-YPB180M4，GFF109-YPB200M4，GFF109-YPB225M4，GFF109-YPB80M4，GFF109-YPB90M4，GFF109-YPE100M4，GFF109-YPE112M4，GFF109-YPE132M4，GFF109-YPE160M4，GFF109-YPE180M4，GFF109-YPE200M4，GFF109-YPE225M4，GFF109-YPE80M4，GFF109-YPE90M4，GFF109-YS100M4，GFF109-YS112M4，GFF109-YS132M4，GFF109-YS160M4，GFF109-YS180M4，GFF109-YS200M4，GFF109-YS225M4，GFF109-YS80M4，GFF109-YS90M4，GFF109-YVB100M4，GFF109-YVB112M4，GFF109-YVB132M4，GFF109-YVB160M4，GFF109-YVB180M4，GFF109-YVB200M4，GFF109-YVB225M4，GFF109-YVB80M4，GFF109-YVB90M4，GFF109-YVP100M4，GFF109-YVP112M4，GFF109-YVP132M4，GFF109-YVP160M4，GFF109-YVP180M4，GFF109-YVP200M4，GFF109-YVP225M4，GFF109-YVP80M4，GFF109-YVP90M4，GFF109-YVPEJ100M4，GFF109-YVPEJ112M4，GFF109-YVPEJ132M4，GFF109-YVPEJ160M4，GFF109-YVPEJ180M4，GFF109-YVPEJ200M4，GFF109-YVPEJ225M4，GFF109-YVPEJ80M4，GFF109-YVPEJ90M4。

FF109減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://njxyx.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F109減速機
