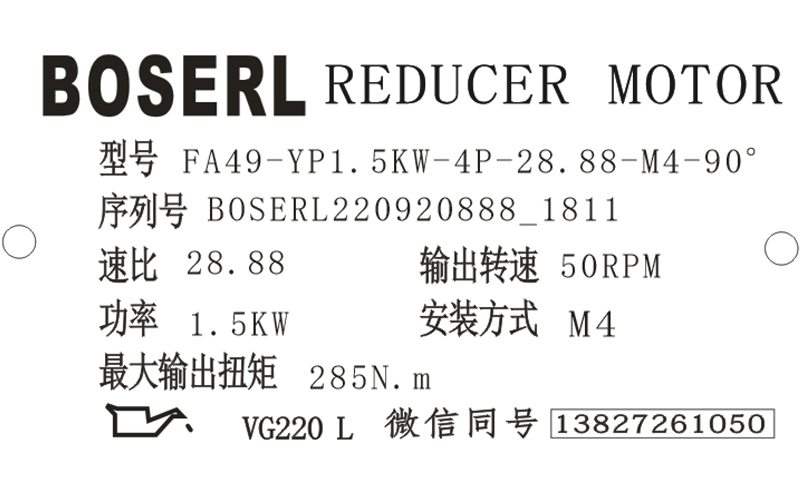

FA49減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F49減速機選型樣本。
FA49-YP1.5KW-4P-28.88-M4-90°
FA:系列代號
49:減速機規格代號
YP:電機
1.5KW:電機功率
4P:電機級數
28.88:減速機傳動比
M4:減速機安裝位置
90°:接線盒位置
FA49減速機扭力臂安裝:
請按以下步驟安裝橡膠緩沖塊:1.根據下表采用螺栓[1]和墊片[2];2.用兩個螺母[3]緊固螺栓;3.擰緊螺栓,直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA49減速機的扭力臂安裝示意圖:齒輪減速電機
減速機型號 | 直 徑 a[mm] | 橡膠緩沖塊 內徑b[mm] | 長 度 (未張緊)d[mm] | 墊片寬度 c[mm] | △L(張緊) [mm] |
FA39減速機 | 40 | 12.5 | 20 | 5 | 1 |
FA49減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA59減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA69減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA79減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA89減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA99減速機 | 80 | 25 | 40 | 12 | 2 |
FA109減速機 | 80 | 25 | 40 | 12 | 2 |
FA129減速機 | 100 | 32 | 60 | 15 | 2 |
FA159減速機 | 120 | 32 | 60 | 15 | 2 |
FA49減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA49減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。平行軸斜齒輪減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。分體電機減速機
FA49減速機型號:
WFA47-Y0.12KW,WFA47-Y0.18KW,WFA47-Y0.25KW,WFA47-Y0.37KW,WFA47-Y0.55KW,WFA47-Y0.75KW,WFA47-Y1.1KW,WFA47-Y1.5KW,WFA47-Y100M4,WFA47-Y2.2KW,WFA47-Y3KW,WFA47-Y63M4,WFA47-Y71M4,WFA47-Y80M4,WFA47-Y90M4,WFA47-YB100M4,WFA47-YB63M4,WFA47-YB71M4,WFA47-YB80M4,WFA47-YB90M4,WFA47-YDP100M4,WFA47-YDP63M4,WFA47-YDP71M4,WFA47-YDP80M4,WFA47-YDP90M4,WFA47-YE100M4,WFA47-YE63M4,WFA47-YE71M4,WFA47-YE80M4,WFA47-YE90M4,WFA47-YEJ100M4,WFA47-YEJ63M4,WFA47-YEJ71M4,WFA47-YEJ80M4,WFA47-YEJ90M4,WFA47-YEJB100M4,WFA47-YEJB63M4,WFA47-YEJB71M4,WFA47-YEJB80M4,WFA47-YEJB90M4,WFA47-YP100M4,WFA47-YP63M4,WFA47-YP71M4,WFA47-YP80M4,WFA47-YP90M4,WFA47-YPB100M4,WFA47-YPB63M4,WFA47-YPB71M4,WFA47-YPB80M4,WFA47-YPB90M4,WFA47-YPE100M4,WFA47-YPE63M4,WFA47-YPE71M4,WFA47-YPE80M4,WFA47-YPE90M4,WFA47-YS100M4,WFA47-YS63M4,WFA47-YS71M4,WFA47-YS80M4,WFA47-YS90M4,WFA47-YVB100M4,WFA47-YVB63M4,WFA47-YVB71M4,WFA47-YVB80M4,WFA47-YVB90M4,WFA47-YVP100M4,WFA47-YVP63M4,WFA47-YVP71M4,WFA47-YVP80M4,WFA47-YVP90M4,WFA47-YVPEJ100M4,WFA47-YVPEJ63M4,WFA47-YVPEJ71M4,WFA47-YVPEJ80M4,WFA47-YVPEJ90M4,NFA47-Y0.12KW,NFA47-Y0.18KW,NFA47-Y0.25KW,NFA47-Y0.37KW,NFA47-Y0.55KW,NFA47-Y0.75KW,NFA47-Y1.1KW,NFA47-Y1.5KW,NFA47-Y100M4,NFA47-Y2.2KW,NFA47-Y3KW,NFA47-Y63M4,NFA47-Y71M4,NFA47-Y80M4,NFA47-Y90M4,NFA47-YB100M4,NFA47-YB63M4,NFA47-YB71M4,NFA47-YB80M4,NFA47-YB90M4,NFA47-YDP100M4,NFA47-YDP63M4,NFA47-YDP71M4,NFA47-YDP80M4,NFA47-YDP90M4,NFA47-YE100M4,NFA47-YE63M4,NFA47-YE71M4,NFA47-YE80M4,NFA47-YE90M4,NFA47-YEJ100M4,NFA47-YEJ63M4,NFA47-YEJ71M4,NFA47-YEJ80M4,NFA47-YEJ90M4,NFA47-YEJB100M4,NFA47-YEJB63M4,NFA47-YEJB71M4,NFA47-YEJB80M4,NFA47-YEJB90M4,NFA47-YP100M4,NFA47-YP63M4,NFA47-YP71M4,NFA47-YP80M4,NFA47-YP90M4,NFA47-YPB100M4,NFA47-YPB63M4,NFA47-YPB71M4,NFA47-YPB80M4,NFA47-YPB90M4,NFA47-YPE100M4,NFA47-YPE63M4,NFA47-YPE71M4,NFA47-YPE80M4,NFA47-YPE90M4,NFA47-YS100M4,NFA47-YS63M4,NFA47-YS71M4,NFA47-YS80M4,NFA47-YS90M4,NFA47-YVB100M4,NFA47-YVB63M4,NFA47-YVB71M4,NFA47-YVB80M4,NFA47-YVB90M4,NFA47-YVP100M4,NFA47-YVP63M4,NFA47-YVP71M4,NFA47-YVP80M4,NFA47-YVP90M4,NFA47-YVPEJ100M4,NFA47-YVPEJ63M4,NFA47-YVPEJ71M4,NFA47-YVPEJ80M4,NFA47-YVPEJ90M4,SFA47-Y0.12KW,SFA47-Y0.18KW,SFA47-Y0.25KW,SFA47-Y0.37KW,SFA47-Y0.55KW,SFA47-Y0.75KW,SFA47-Y1.1KW,SFA47-Y1.5KW,SFA47-Y100M4,SFA47-Y2.2KW,SFA47-Y3KW,SFA47-Y63M4,SFA47-Y71M4,SFA47-Y80M4,SFA47-Y90M4,SFA47-YB100M4,SFA47-YB63M4,SFA47-YB71M4,SFA47-YB80M4,SFA47-YB90M4,SFA47-YDP100M4,SFA47-YDP63M4,SFA47-YDP71M4,SFA47-YDP80M4,SFA47-YDP90M4,SFA47-YE100M4,SFA47-YE63M4,SFA47-YE71M4,SFA47-YE80M4,SFA47-YE90M4,SFA47-YEJ100M4,SFA47-YEJ63M4,SFA47-YEJ71M4,SFA47-YEJ80M4,SFA47-YEJ90M4,SFA47-YEJB100M4,SFA47-YEJB63M4,SFA47-YEJB71M4,SFA47-YEJB80M4,SFA47-YEJB90M4,SFA47-YP100M4,SFA47-YP63M4,SFA47-YP71M4,SFA47-YP80M4,SFA47-YP90M4,SFA47-YPB100M4,SFA47-YPB63M4,SFA47-YPB71M4,SFA47-YPB80M4,SFA47-YPB90M4,SFA47-YPE100M4,SFA47-YPE63M4,SFA47-YPE71M4,SFA47-YPE80M4,SFA47-YPE90M4,SFA47-YS100M4,SFA47-YS63M4,SFA47-YS71M4,SFA47-YS80M4,SFA47-YS90M4,SFA47-YVB100M4,SFA47-YVB63M4,SFA47-YVB71M4,SFA47-YVB80M4,SFA47-YVB90M4,SFA47-YVP100M4,SFA47-YVP63M4,SFA47-YVP71M4,SFA47-YVP80M4,SFA47-YVP90M4,SFA47-YVPEJ100M4,SFA47-YVPEJ63M4,SFA47-YVPEJ71M4,SFA47-YVPEJ80M4,SFA47-YVPEJ90M4,AFA47-Y0.12KW,AFA47-Y0.18KW,AFA47-Y0.25KW,AFA47-Y0.37KW,AFA47-Y0.55KW,AFA47-Y0.75KW,AFA47-Y1.1KW,AFA47-Y1.5KW,AFA47-Y100M4,AFA47-Y2.2KW,AFA47-Y3KW,AFA47-Y63M4,AFA47-Y71M4,AFA47-Y80M4,AFA47-Y90M4,AFA47-YB100M4,AFA47-YB63M4,AFA47-YB71M4,AFA47-YB80M4,AFA47-YB90M4,AFA47-YDP100M4,AFA47-YDP63M4,AFA47-YDP71M4,AFA47-YDP80M4,AFA47-YDP90M4,AFA47-YE100M4,AFA47-YE63M4,AFA47-YE71M4,AFA47-YE80M4,AFA47-YE90M4,AFA47-YEJ100M4,AFA47-YEJ63M4,AFA47-YEJ71M4,AFA47-YEJ80M4,AFA47-YEJ90M4,AFA47-YEJB100M4,AFA47-YEJB63M4,AFA47-YEJB71M4,AFA47-YEJB80M4,AFA47-YEJB90M4,AFA47-YP100M4,AFA47-YP63M4,AFA47-YP71M4,AFA47-YP80M4,AFA47-YP90M4,AFA47-YPB100M4,AFA47-YPB63M4,AFA47-YPB71M4,AFA47-YPB80M4,AFA47-YPB90M4,AFA47-YPE100M4,AFA47-YPE63M4,AFA47-YPE71M4,AFA47-YPE80M4,AFA47-YPE90M4,AFA47-YS100M4,AFA47-YS63M4,AFA47-YS71M4,AFA47-YS80M4,AFA47-YS90M4,AFA47-YVB100M4,AFA47-YVB63M4,AFA47-YVB71M4,AFA47-YVB80M4,AFA47-YVB90M4,AFA47-YVP100M4,AFA47-YVP63M4,AFA47-YVP71M4,AFA47-YVP80M4,AFA47-YVP90M4,AFA47-YVPEJ100M4,AFA47-YVPEJ63M4,AFA47-YVPEJ71M4,AFA47-YVPEJ80M4,AFA47-YVPEJ90M4,GFA49-Y0.12KW,GFA49-Y0.18KW,GFA49-Y0.25KW,GFA49-Y0.37KW,GFA49-Y0.55KW,GFA49-Y0.75KW,GFA49-Y1.1KW,GFA49-Y1.5KW,GFA49-Y100M4,GFA49-Y2.2KW,GFA49-Y3KW,GFA49-Y63M4,GFA49-Y71M4,GFA49-Y80M4,GFA49-Y90M4,GFA49-YB100M4,GFA49-YB63M4,GFA49-YB71M4,GFA49-YB80M4,GFA49-YB90M4,GFA49-YDP100M4,GFA49-YDP63M4,GFA49-YDP71M4,GFA49-YDP80M4,GFA49-YDP90M4,GFA49-YE100M4,GFA49-YE63M4,GFA49-YE71M4,GFA49-YE80M4,GFA49-YE90M4,GFA49-YEJ100M4,GFA49-YEJ63M4,GFA49-YEJ71M4,GFA49-YEJ80M4,GFA49-YEJ90M4,GFA49-YEJB100M4,GFA49-YEJB63M4,GFA49-YEJB71M4,GFA49-YEJB80M4,GFA49-YEJB90M4,GFA49-YP100M4,GFA49-YP63M4,GFA49-YP71M4,GFA49-YP80M4,GFA49-YP90M4,GFA49-YPB100M4,GFA49-YPB63M4,GFA49-YPB71M4,GFA49-YPB80M4,GFA49-YPB90M4,GFA49-YPE100M4,GFA49-YPE63M4,GFA49-YPE71M4,GFA49-YPE80M4,GFA49-YPE90M4,GFA49-YS100M4,GFA49-YS63M4,GFA49-YS71M4,GFA49-YS80M4,GFA49-YS90M4,GFA49-YVB100M4,GFA49-YVB63M4,GFA49-YVB71M4,GFA49-YVB80M4,GFA49-YVB90M4,GFA49-YVP100M4,GFA49-YVP63M4,GFA49-YVP71M4,GFA49-YVP80M4,GFA49-YVP90M4,GFA49-YVPEJ100M4,GFA49-YVPEJ63M4,GFA49-YVPEJ71M4,GFA49-YVPEJ80M4,GFA49-YVPEJ90M4。
FA49減速機生產工廠展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-faxiliejiansuji-cn.html
推薦類似型號:F49減速機
關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家
FA系列齒輪減速電機型號:FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機
FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
