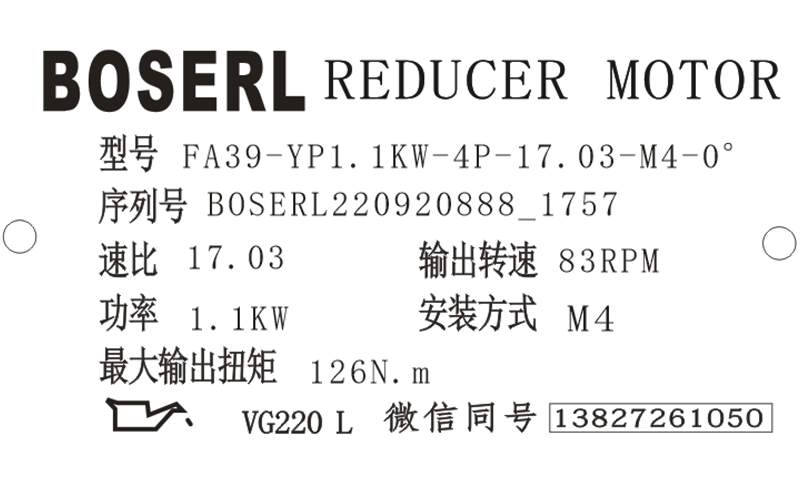

FA39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F39減速機選型樣本。
FA39-YP1.1KW-4P-17.03-M4-0°
FA:系列代號
39:減速機規格代號
YP:電機
1.1KW:電機功率
4P:電機級數
17.03:減速機傳動比
M4:減速機安裝位置
0°:接線盒位置
FA39減速機扭力臂安裝:
請按以下步驟安裝橡膠緩沖塊:1.根據下表采用螺栓[1]和墊片[2];2.用兩個螺母[3]緊固螺栓;3.擰緊螺栓,直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA39減速機的扭力臂安裝示意圖:齒輪減速電機
減速機型號 | 直 徑 a[mm] | 橡膠緩沖塊 內徑b[mm] | 長 度 (未張緊)d[mm] | 墊片寬度 c[mm] | △L(張緊) [mm] |
FA39減速機 | 40 | 12.5 | 20 | 5 | 1 |
FA49減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA59減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA69減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA79減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA89減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA99減速機 | 80 | 25 | 40 | 12 | 2 |
FA109減速機 | 80 | 25 | 40 | 12 | 2 |
FA129減速機 | 100 | 32 | 60 | 15 | 2 |
FA159減速機 | 120 | 32 | 60 | 15 | 2 |
FA39減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA39減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。平行軸斜齒輪減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。分體電機減速機
FA39減速機型號:
NFA37-Y0.12KW,NFA37-Y0.18KW,NFA37-Y0.25KW,NFA37-Y0.37KW,NFA37-Y0.55KW,NFA37-Y0.75KW,NFA37-Y1.1KW,NFA37-Y1.5KW,NFA37-Y100M4,NFA37-Y2.2KW,NFA37-Y3KW,NFA37-Y63M4,NFA37-Y71M4,NFA37-Y80M4,NFA37-Y90M4,NFA37-YB100M4,NFA37-YB63M4,NFA37-YB71M4,NFA37-YB80M4,NFA37-YB90M4,NFA37-YDP100M4,NFA37-YDP63M4,NFA37-YDP71M4,NFA37-YDP80M4,NFA37-YDP90M4,NFA37-YE100M4,NFA37-YE63M4,NFA37-YE71M4,NFA37-YE80M4,NFA37-YE90M4,NFA37-YEJ100M4,NFA37-YEJ63M4,NFA37-YEJ71M4,NFA37-YEJ80M4,NFA37-YEJ90M4,NFA37-YEJB100M4,NFA37-YEJB63M4,NFA37-YEJB71M4,NFA37-YEJB80M4,NFA37-YEJB90M4,NFA37-YP100M4,NFA37-YP63M4,NFA37-YP71M4,NFA37-YP80M4,NFA37-YP90M4,NFA37-YPB100M4,NFA37-YPB63M4,NFA37-YPB71M4,NFA37-YPB80M4,NFA37-YPB90M4,NFA37-YPE100M4,NFA37-YPE63M4,NFA37-YPE71M4,NFA37-YPE80M4,NFA37-YPE90M4,NFA37-YS100M4,NFA37-YS63M4,NFA37-YS71M4,NFA37-YS80M4,NFA37-YS90M4,NFA37-YVB100M4,NFA37-YVB63M4,NFA37-YVB71M4,NFA37-YVB80M4,NFA37-YVB90M4,NFA37-YVP100M4,NFA37-YVP63M4,NFA37-YVP71M4,NFA37-YVP80M4,NFA37-YVP90M4,NFA37-YVPEJ100M4,NFA37-YVPEJ63M4,NFA37-YVPEJ71M4,NFA37-YVPEJ80M4,NFA37-YVPEJ90M4,SFA37-Y0.12KW,SFA37-Y0.18KW,SFA37-Y0.25KW,SFA37-Y0.37KW,SFA37-Y0.55KW,SFA37-Y0.75KW,SFA37-Y1.1KW,SFA37-Y1.5KW,SFA37-Y100M4,SFA37-Y2.2KW,SFA37-Y3KW,SFA37-Y63M4,SFA37-Y71M4,SFA37-Y80M4,SFA37-Y90M4,SFA37-YB100M4,SFA37-YB63M4,SFA37-YB71M4,SFA37-YB80M4,SFA37-YB90M4,SFA37-YDP100M4,SFA37-YDP63M4,SFA37-YDP71M4,SFA37-YDP80M4,SFA37-YDP90M4,SFA37-YE100M4,SFA37-YE63M4,SFA37-YE71M4,SFA37-YE80M4,SFA37-YE90M4,SFA37-YEJ100M4,SFA37-YEJ63M4,SFA37-YEJ71M4,SFA37-YEJ80M4,SFA37-YEJ90M4,SFA37-YEJB100M4,SFA37-YEJB63M4,SFA37-YEJB71M4,SFA37-YEJB80M4,SFA37-YEJB90M4,SFA37-YP100M4,SFA37-YP63M4,SFA37-YP71M4,SFA37-YP80M4,SFA37-YP90M4,SFA37-YPB100M4,SFA37-YPB63M4,SFA37-YPB71M4,SFA37-YPB80M4,SFA37-YPB90M4,SFA37-YPE100M4,SFA37-YPE63M4,SFA37-YPE71M4,SFA37-YPE80M4,SFA37-YPE90M4,SFA37-YS100M4,SFA37-YS63M4,SFA37-YS71M4,SFA37-YS80M4,SFA37-YS90M4,SFA37-YVB100M4,SFA37-YVB63M4,SFA37-YVB71M4,SFA37-YVB80M4,SFA37-YVB90M4,SFA37-YVP100M4,SFA37-YVP63M4,SFA37-YVP71M4,SFA37-YVP80M4,SFA37-YVP90M4,SFA37-YVPEJ100M4,SFA37-YVPEJ63M4,SFA37-YVPEJ71M4,SFA37-YVPEJ80M4,SFA37-YVPEJ90M4,WFA37-Y0.12KW,WFA37-Y0.18KW,WFA37-Y0.25KW,WFA37-Y0.37KW,WFA37-Y0.55KW,WFA37-Y0.75KW,WFA37-Y1.1KW,WFA37-Y1.5KW,WFA37-Y100M4,WFA37-Y2.2KW,WFA37-Y3KW,WFA37-Y63M4,WFA37-Y71M4,WFA37-Y80M4,WFA37-Y90M4,WFA37-YB100M4,WFA37-YB63M4,WFA37-YB71M4,WFA37-YB80M4,WFA37-YB90M4,WFA37-YDP100M4,WFA37-YDP63M4,WFA37-YDP71M4,WFA37-YDP80M4,WFA37-YDP90M4,WFA37-YE100M4,WFA37-YE63M4,WFA37-YE71M4,WFA37-YE80M4,WFA37-YE90M4,WFA37-YEJ100M4,WFA37-YEJ63M4,WFA37-YEJ71M4,WFA37-YEJ80M4,WFA37-YEJ90M4,WFA37-YEJB100M4,WFA37-YEJB63M4,WFA37-YEJB71M4,WFA37-YEJB80M4,WFA37-YEJB90M4,WFA37-YP100M4,WFA37-YP63M4,WFA37-YP71M4,WFA37-YP80M4,WFA37-YP90M4,WFA37-YPB100M4,WFA37-YPB63M4,WFA37-YPB71M4,WFA37-YPB80M4,WFA37-YPB90M4,WFA37-YPE100M4,WFA37-YPE63M4,WFA37-YPE71M4,WFA37-YPE80M4,WFA37-YPE90M4,WFA37-YS100M4,WFA37-YS63M4,WFA37-YS71M4,WFA37-YS80M4,WFA37-YS90M4,WFA37-YVB100M4,WFA37-YVB63M4,WFA37-YVB71M4,WFA37-YVB80M4,WFA37-YVB90M4,WFA37-YVP100M4,WFA37-YVP63M4,WFA37-YVP71M4,WFA37-YVP80M4,WFA37-YVP90M4,WFA37-YVPEJ100M4,WFA37-YVPEJ63M4,WFA37-YVPEJ71M4,WFA37-YVPEJ80M4,WFA37-YVPEJ90M4,AFA37-Y0.12KW,AFA37-Y0.18KW,AFA37-Y0.25KW,AFA37-Y0.37KW,AFA37-Y0.55KW,AFA37-Y0.75KW,AFA37-Y1.1KW,AFA37-Y1.5KW,AFA37-Y100M4,AFA37-Y2.2KW,AFA37-Y3KW,AFA37-Y63M4,AFA37-Y71M4,AFA37-Y80M4,AFA37-Y90M4,AFA37-YB100M4,AFA37-YB63M4,AFA37-YB71M4,AFA37-YB80M4,AFA37-YB90M4,AFA37-YDP100M4,AFA37-YDP63M4,AFA37-YDP71M4,AFA37-YDP80M4,AFA37-YDP90M4,AFA37-YE100M4,AFA37-YE63M4,AFA37-YE71M4,AFA37-YE80M4,AFA37-YE90M4,AFA37-YEJ100M4,AFA37-YEJ63M4,AFA37-YEJ71M4,AFA37-YEJ80M4,AFA37-YEJ90M4,AFA37-YEJB100M4,AFA37-YEJB63M4,AFA37-YEJB71M4,AFA37-YEJB80M4,AFA37-YEJB90M4,AFA37-YP100M4,AFA37-YP63M4,AFA37-YP71M4,AFA37-YP80M4,AFA37-YP90M4,AFA37-YPB100M4,AFA37-YPB63M4,AFA37-YPB71M4,AFA37-YPB80M4,AFA37-YPB90M4,AFA37-YPE100M4,AFA37-YPE63M4,AFA37-YPE71M4,AFA37-YPE80M4,AFA37-YPE90M4,AFA37-YS100M4,AFA37-YS63M4,AFA37-YS71M4,AFA37-YS80M4,AFA37-YS90M4,AFA37-YVB100M4,AFA37-YVB63M4,AFA37-YVB71M4,AFA37-YVB80M4,AFA37-YVB90M4,AFA37-YVP100M4,AFA37-YVP63M4,AFA37-YVP71M4,AFA37-YVP80M4,AFA37-YVP90M4,AFA37-YVPEJ100M4,AFA37-YVPEJ63M4,AFA37-YVPEJ71M4,AFA37-YVPEJ80M4,AFA37-YVPEJ90M4,GFA39-Y0.12KW,GFA39-Y0.18KW,GFA39-Y0.25KW,GFA39-Y0.37KW,GFA39-Y0.55KW,GFA39-Y0.75KW,GFA39-Y1.1KW,GFA39-Y1.5KW,GFA39-Y100M4,GFA39-Y2.2KW,GFA39-Y3KW,GFA39-Y63M4,GFA39-Y71M4,GFA39-Y80M4,GFA39-Y90M4,GFA39-YB100M4,GFA39-YB63M4,GFA39-YB71M4,GFA39-YB80M4,GFA39-YB90M4,GFA39-YDP100M4,GFA39-YDP63M4,GFA39-YDP71M4,GFA39-YDP80M4,GFA39-YDP90M4,GFA39-YE100M4,GFA39-YE63M4,GFA39-YE71M4,GFA39-YE80M4,GFA39-YE90M4,GFA39-YEJ100M4,GFA39-YEJ63M4,GFA39-YEJ71M4,GFA39-YEJ80M4,GFA39-YEJ90M4,GFA39-YEJB100M4,GFA39-YEJB63M4,GFA39-YEJB71M4,GFA39-YEJB80M4,GFA39-YEJB90M4,GFA39-YP100M4,GFA39-YP63M4,GFA39-YP71M4,GFA39-YP80M4,GFA39-YP90M4,GFA39-YPB100M4,GFA39-YPB63M4,GFA39-YPB71M4,GFA39-YPB80M4,GFA39-YPB90M4,GFA39-YPE100M4,GFA39-YPE63M4,GFA39-YPE71M4,GFA39-YPE80M4,GFA39-YPE90M4,GFA39-YS100M4,GFA39-YS63M4,GFA39-YS71M4,GFA39-YS80M4,GFA39-YS90M4,GFA39-YVB100M4,GFA39-YVB63M4,GFA39-YVB71M4,GFA39-YVB80M4,GFA39-YVB90M4,GFA39-YVP100M4,GFA39-YVP63M4,GFA39-YVP71M4,GFA39-YVP80M4,GFA39-YVP90M4,GFA39-YVPEJ100M4,GFA39-YVPEJ63M4,GFA39-YVPEJ71M4,GFA39-YVPEJ80M4,GFA39-YVPEJ90M4。
FA39減速機生產工廠展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-faxiliejiansuji-cn.html
推薦類似型號:F39減速機
關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家
FA系列齒輪減速電機型號:FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機
FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
