FA109減速機詳細信息

prevnext

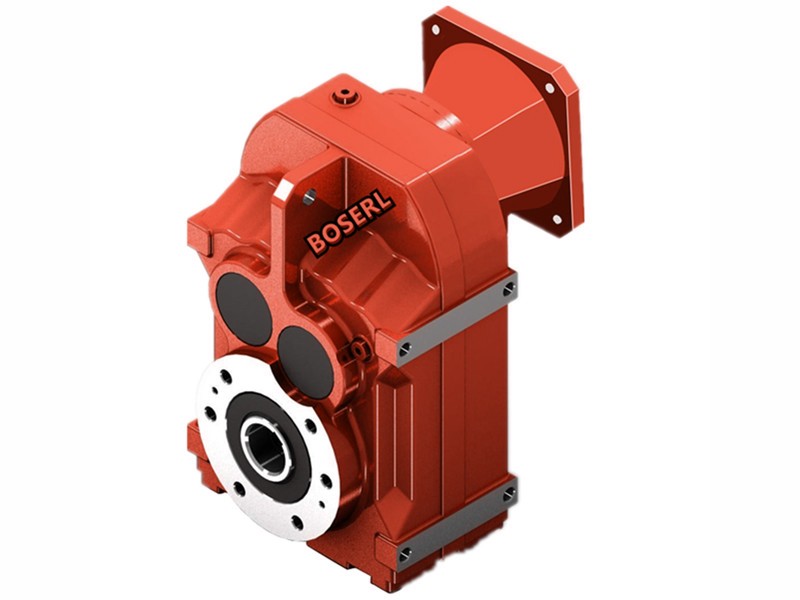

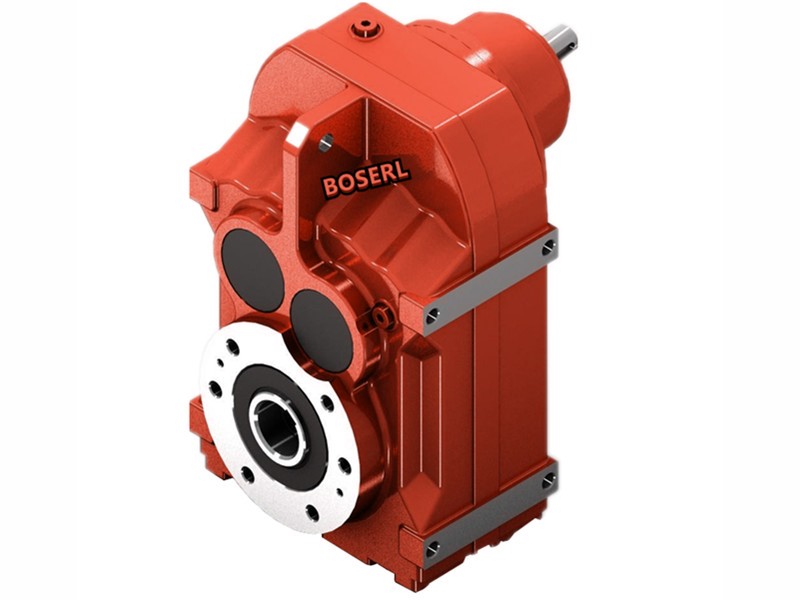

FA109減速機

訂購熱線:13360667204
  1. 詳細信息

FA109減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F109減速機選型樣本。

FA109-YP11KW-4P-74.52-M5-270°

FA:系列代號

109:減速機規格代號

YP:電機

11KW:電機功率

4P:電機級數

74.52:減速機傳動比

M5:減速機安裝位置

270°:接線盒位置


FA109減速機扭力臂安裝:

請按以下步驟安裝橡膠緩沖塊:1.根據下表采用螺栓[1]和墊片[2];2.用兩個螺母[3]緊固螺栓;3.擰緊螺栓,直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA109減速機的扭力臂安裝示意圖:齒輪減速電機



減速機型號

直 徑

a[mm]

橡膠緩沖塊

內徑b[mm]

長   度

(未張緊)d[mm]

墊片寬度

c[mm]

△L(張緊)

[mm]

FA39減速機

40

12.5

20

5

1

FA49減速機

40

12.5

20

5

1.5

FA59減速機

40

12.5

20

5

1.5

FA69減速機

40

12.5

20

5

1.5

FA79減速機

60

21

30

10

1.5

FA89減速機

60

21

30

10

1.5

FA99減速機

80

25

40

12

2

FA109減速機

80

25

40

12

2

FA129減速機

100

32

60

15

2

FA159減速機

120

32

60

15

2

FA109減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA109減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機


FA109減速機型號:

AFA107-Y1.5KW,AFA107-Y100M4,AFA107-Y112M4,AFA107-Y11KW,AFA107-Y132M4,AFA107-Y15KW,AFA107-Y160M4,AFA107-Y18.5KW,AFA107-Y180M4,AFA107-Y2.2KW,AFA107-Y200M4,AFA107-Y225M4,AFA107-Y22KW,AFA107-Y30KW,AFA107-Y37KW,AFA107-Y3KW,AFA107-Y45KW,AFA107-Y4KW,AFA107-Y5.5KW,AFA107-Y7.5KW,AFA107-Y80M4,AFA107-Y90M4,AFA107-YB100M4,AFA107-YB112M4,AFA107-YB132M4,AFA107-YB160M4,AFA107-YB180M4,AFA107-YB200M4,AFA107-YB225M4,AFA107-YB80M4,AFA107-YB90M4,AFA107-YDP100M4,AFA107-YDP112M4,AFA107-YDP132M4,AFA107-YDP160M4,AFA107-YDP180M4,AFA107-YDP200M4,AFA107-YDP225M4,AFA107-YDP80M4,AFA107-YDP90M4,AFA107-YE100M4,AFA107-YE112M4,AFA107-YE132M4,AFA107-YE160M4,AFA107-YE180M4,AFA107-YE200M4,AFA107-YE225M4,AFA107-YE80M4,AFA107-YE90M4,AFA107-YEJ100M4,AFA107-YEJ112M4,AFA107-YEJ132M4,AFA107-YEJ160M4,AFA107-YEJ180M4,AFA107-YEJ200M4,AFA107-YEJ225M4,AFA107-YEJ80M4,AFA107-YEJ90M4,AFA107-YEJB100M4,AFA107-YEJB112M4,AFA107-YEJB132M4,AFA107-YEJB160M4,AFA107-YEJB180M4,AFA107-YEJB200M4,AFA107-YEJB225M4,AFA107-YEJB80M4,AFA107-YEJB90M4,AFA107-YP100M4,AFA107-YP112M4,AFA107-YP132M4,AFA107-YP160M4,AFA107-YP180M4,AFA107-YP200M4,AFA107-YP225M4,AFA107-YP80M4,AFA107-YP90M4,AFA107-YPB100M4,AFA107-YPB112M4,AFA107-YPB132M4,AFA107-YPB160M4,AFA107-YPB180M4,AFA107-YPB200M4,AFA107-YPB225M4,AFA107-YPB80M4,AFA107-YPB90M4,AFA107-YPE100M4,AFA107-YPE112M4,AFA107-YPE132M4,AFA107-YPE160M4,AFA107-YPE180M4,AFA107-YPE200M4,AFA107-YPE225M4,AFA107-YPE80M4,AFA107-YPE90M4,AFA107-YS100M4,AFA107-YS112M4,AFA107-YS132M4,AFA107-YS160M4,AFA107-YS180M4,AFA107-YS200M4,AFA107-YS225M4,AFA107-YS80M4,AFA107-YS90M4,AFA107-YVB100M4,AFA107-YVB112M4,AFA107-YVB132M4,AFA107-YVB160M4,AFA107-YVB180M4,AFA107-YVB200M4,AFA107-YVB225M4,AFA107-YVB80M4,AFA107-YVB90M4,AFA107-YVP100M4,AFA107-YVP112M4,AFA107-YVP132M4,AFA107-YVP160M4,AFA107-YVP180M4,AFA107-YVP200M4,AFA107-YVP225M4,AFA107-YVP80M4,AFA107-YVP90M4,AFA107-YVPEJ100M4,AFA107-YVPEJ112M4,AFA107-YVPEJ132M4,AFA107-YVPEJ160M4,AFA107-YVPEJ180M4,AFA107-YVPEJ200M4,AFA107-YVPEJ225M4,AFA107-YVPEJ80M4,AFA107-YVPEJ90M4,NFA107-Y1.5KW,NFA107-Y100M4,NFA107-Y112M4,NFA107-Y11KW,NFA107-Y132M4,NFA107-Y15KW,NFA107-Y160M4,NFA107-Y18.5KW,NFA107-Y180M4,NFA107-Y2.2KW,NFA107-Y200M4,NFA107-Y225M4,NFA107-Y22KW,NFA107-Y30KW,NFA107-Y37KW,NFA107-Y3KW,NFA107-Y45KW,NFA107-Y4KW,NFA107-Y5.5KW,NFA107-Y7.5KW,NFA107-Y80M4,NFA107-Y90M4,NFA107-YB100M4,NFA107-YB112M4,NFA107-YB132M4,NFA107-YB160M4,NFA107-YB180M4,NFA107-YB200M4,NFA107-YB225M4,NFA107-YB80M4,NFA107-YB90M4,NFA107-YDP100M4,NFA107-YDP112M4,NFA107-YDP132M4,NFA107-YDP160M4,NFA107-YDP180M4,NFA107-YDP200M4,NFA107-YDP225M4,NFA107-YDP80M4,NFA107-YDP90M4,NFA107-YE100M4,NFA107-YE112M4,NFA107-YE132M4,NFA107-YE160M4,NFA107-YE180M4,NFA107-YE200M4,NFA107-YE225M4,NFA107-YE80M4,NFA107-YE90M4,NFA107-YEJ100M4,NFA107-YEJ112M4,NFA107-YEJ132M4,NFA107-YEJ160M4,NFA107-YEJ180M4,NFA107-YEJ200M4,NFA107-YEJ225M4,NFA107-YEJ80M4,NFA107-YEJ90M4,NFA107-YEJB100M4,NFA107-YEJB112M4,NFA107-YEJB132M4,NFA107-YEJB160M4,NFA107-YEJB180M4,NFA107-YEJB200M4,NFA107-YEJB225M4,NFA107-YEJB80M4,NFA107-YEJB90M4,NFA107-YP100M4,NFA107-YP112M4,NFA107-YP132M4,NFA107-YP160M4,NFA107-YP180M4,NFA107-YP200M4,NFA107-YP225M4,NFA107-YP80M4,NFA107-YP90M4,NFA107-YPB100M4,NFA107-YPB112M4,NFA107-YPB132M4,NFA107-YPB160M4,NFA107-YPB180M4,NFA107-YPB200M4,NFA107-YPB225M4,NFA107-YPB80M4,NFA107-YPB90M4,NFA107-YPE100M4,NFA107-YPE112M4,NFA107-YPE132M4,NFA107-YPE160M4,NFA107-YPE180M4,NFA107-YPE200M4,NFA107-YPE225M4,NFA107-YPE80M4,NFA107-YPE90M4,NFA107-YS100M4,NFA107-YS112M4,NFA107-YS132M4,NFA107-YS160M4,NFA107-YS180M4,NFA107-YS200M4,NFA107-YS225M4,NFA107-YS80M4,NFA107-YS90M4,NFA107-YVB100M4,NFA107-YVB112M4,NFA107-YVB132M4,NFA107-YVB160M4,NFA107-YVB180M4,NFA107-YVB200M4,NFA107-YVB225M4,NFA107-YVB80M4,NFA107-YVB90M4,NFA107-YVP100M4,NFA107-YVP112M4,NFA107-YVP132M4,NFA107-YVP160M4,NFA107-YVP180M4,NFA107-YVP200M4,NFA107-YVP225M4,NFA107-YVP80M4,NFA107-YVP90M4,NFA107-YVPEJ100M4,NFA107-YVPEJ112M4,NFA107-YVPEJ132M4,NFA107-YVPEJ160M4,NFA107-YVPEJ180M4,NFA107-YVPEJ200M4,NFA107-YVPEJ225M4,NFA107-YVPEJ80M4,NFA107-YVPEJ90M4,SFA107-Y1.5KW,SFA107-Y100M4,SFA107-Y112M4,SFA107-Y11KW,SFA107-Y132M4,SFA107-Y15KW,SFA107-Y160M4,SFA107-Y18.5KW,SFA107-Y180M4,SFA107-Y2.2KW,SFA107-Y200M4,SFA107-Y225M4,SFA107-Y22KW,SFA107-Y30KW,SFA107-Y37KW,SFA107-Y3KW,SFA107-Y45KW,SFA107-Y4KW,SFA107-Y5.5KW,SFA107-Y7.5KW,SFA107-Y80M4,SFA107-Y90M4,SFA107-YB100M4,SFA107-YB112M4,SFA107-YB132M4,SFA107-YB160M4,SFA107-YB180M4,SFA107-YB200M4,SFA107-YB225M4,SFA107-YB80M4,SFA107-YB90M4,SFA107-YDP100M4,SFA107-YDP112M4,SFA107-YDP132M4,SFA107-YDP160M4,SFA107-YDP180M4,SFA107-YDP200M4,SFA107-YDP225M4,SFA107-YDP80M4,SFA107-YDP90M4,SFA107-YE100M4,SFA107-YE112M4,SFA107-YE132M4,SFA107-YE160M4,SFA107-YE180M4,SFA107-YE200M4,SFA107-YE225M4,SFA107-YE80M4,SFA107-YE90M4,SFA107-YEJ100M4,SFA107-YEJ112M4,SFA107-YEJ132M4,SFA107-YEJ160M4,SFA107-YEJ180M4,SFA107-YEJ200M4,SFA107-YEJ225M4,SFA107-YEJ80M4,SFA107-YEJ90M4,SFA107-YEJB100M4,SFA107-YEJB112M4,SFA107-YEJB132M4,SFA107-YEJB160M4,SFA107-YEJB180M4,SFA107-YEJB200M4,SFA107-YEJB225M4,SFA107-YEJB80M4,SFA107-YEJB90M4,SFA107-YP100M4,SFA107-YP112M4,SFA107-YP132M4,SFA107-YP160M4,SFA107-YP180M4,SFA107-YP200M4,SFA107-YP225M4,SFA107-YP80M4,SFA107-YP90M4,SFA107-YPB100M4,SFA107-YPB112M4,SFA107-YPB132M4,SFA107-YPB160M4,SFA107-YPB180M4,SFA107-YPB200M4,SFA107-YPB225M4,SFA107-YPB80M4,SFA107-YPB90M4,SFA107-YPE100M4,SFA107-YPE112M4,SFA107-YPE132M4,SFA107-YPE160M4,SFA107-YPE180M4,SFA107-YPE200M4,SFA107-YPE225M4,SFA107-YPE80M4,SFA107-YPE90M4,SFA107-YS100M4,SFA107-YS112M4,SFA107-YS132M4,SFA107-YS160M4,SFA107-YS180M4,SFA107-YS200M4,SFA107-YS225M4,SFA107-YS80M4,SFA107-YS90M4,SFA107-YVB100M4,SFA107-YVB112M4,SFA107-YVB132M4,SFA107-YVB160M4,SFA107-YVB180M4,SFA107-YVB200M4,SFA107-YVB225M4,SFA107-YVB80M4,SFA107-YVB90M4,SFA107-YVP100M4,SFA107-YVP112M4,SFA107-YVP132M4,SFA107-YVP160M4,SFA107-YVP180M4,SFA107-YVP200M4,SFA107-YVP225M4,SFA107-YVP80M4,SFA107-YVP90M4,SFA107-YVPEJ100M4,SFA107-YVPEJ112M4,SFA107-YVPEJ132M4,SFA107-YVPEJ160M4,SFA107-YVPEJ180M4,SFA107-YVPEJ200M4,SFA107-YVPEJ225M4,SFA107-YVPEJ80M4,SFA107-YVPEJ90M4,WFA107-Y1.5KW,WFA107-Y100M4,WFA107-Y112M4,WFA107-Y11KW,WFA107-Y132M4,WFA107-Y15KW,WFA107-Y160M4,WFA107-Y18.5KW,WFA107-Y180M4,WFA107-Y2.2KW,WFA107-Y200M4,WFA107-Y225M4,WFA107-Y22KW,WFA107-Y30KW,WFA107-Y37KW,WFA107-Y3KW,WFA107-Y45KW,WFA107-Y4KW,WFA107-Y5.5KW,WFA107-Y7.5KW,WFA107-Y80M4,WFA107-Y90M4,WFA107-YB100M4,WFA107-YB112M4,WFA107-YB132M4,WFA107-YB160M4,WFA107-YB180M4,WFA107-YB200M4,WFA107-YB225M4,WFA107-YB80M4,WFA107-YB90M4,WFA107-YDP100M4,WFA107-YDP112M4,WFA107-YDP132M4,WFA107-YDP160M4,WFA107-YDP180M4,WFA107-YDP200M4,WFA107-YDP225M4,WFA107-YDP80M4,WFA107-YDP90M4,WFA107-YE100M4,WFA107-YE112M4,WFA107-YE132M4,WFA107-YE160M4,WFA107-YE180M4,WFA107-YE200M4,WFA107-YE225M4,WFA107-YE80M4,WFA107-YE90M4,WFA107-YEJ100M4,WFA107-YEJ112M4,WFA107-YEJ132M4,WFA107-YEJ160M4,WFA107-YEJ180M4,WFA107-YEJ200M4,WFA107-YEJ225M4,WFA107-YEJ80M4,WFA107-YEJ90M4,WFA107-YEJB100M4,WFA107-YEJB112M4,WFA107-YEJB132M4,WFA107-YEJB160M4,WFA107-YEJB180M4,WFA107-YEJB200M4,WFA107-YEJB225M4,WFA107-YEJB80M4,WFA107-YEJB90M4,WFA107-YP100M4,WFA107-YP112M4,WFA107-YP132M4,WFA107-YP160M4,WFA107-YP180M4,WFA107-YP200M4,WFA107-YP225M4,WFA107-YP80M4,WFA107-YP90M4,WFA107-YPB100M4,WFA107-YPB112M4,WFA107-YPB132M4,WFA107-YPB160M4,WFA107-YPB180M4,WFA107-YPB200M4,WFA107-YPB225M4,WFA107-YPB80M4,WFA107-YPB90M4,WFA107-YPE100M4,WFA107-YPE112M4,WFA107-YPE132M4,WFA107-YPE160M4,WFA107-YPE180M4,WFA107-YPE200M4,WFA107-YPE225M4,WFA107-YPE80M4,WFA107-YPE90M4,WFA107-YS100M4,WFA107-YS112M4,WFA107-YS132M4,WFA107-YS160M4,WFA107-YS180M4,WFA107-YS200M4,WFA107-YS225M4,WFA107-YS80M4,WFA107-YS90M4,WFA107-YVB100M4,WFA107-YVB112M4,WFA107-YVB132M4,WFA107-YVB160M4,WFA107-YVB180M4,WFA107-YVB200M4,WFA107-YVB225M4,WFA107-YVB80M4,WFA107-YVB90M4,WFA107-YVP100M4,WFA107-YVP112M4,WFA107-YVP132M4,WFA107-YVP160M4,WFA107-YVP180M4,WFA107-YVP200M4,WFA107-YVP225M4,WFA107-YVP80M4,WFA107-YVP90M4,WFA107-YVPEJ100M4,WFA107-YVPEJ112M4,WFA107-YVPEJ132M4,WFA107-YVPEJ160M4,WFA107-YVPEJ180M4,WFA107-YVPEJ200M4,WFA107-YVPEJ225M4,WFA107-YVPEJ80M4,WFA107-YVPEJ90M4,GFA109-Y1.5KW,GFA109-Y100M4,GFA109-Y112M4,GFA109-Y11KW,GFA109-Y132M4,GFA109-Y15KW,GFA109-Y160M4,GFA109-Y18.5KW,GFA109-Y180M4,GFA109-Y2.2KW,GFA109-Y200M4,GFA109-Y225M4,GFA109-Y22KW,GFA109-Y30KW,GFA109-Y37KW,GFA109-Y3KW,GFA109-Y45KW,GFA109-Y4KW,GFA109-Y5.5KW,GFA109-Y7.5KW,GFA109-Y80M4,GFA109-Y90M4,GFA109-YB100M4,GFA109-YB112M4,GFA109-YB132M4,GFA109-YB160M4,GFA109-YB180M4,GFA109-YB200M4,GFA109-YB225M4,GFA109-YB80M4,GFA109-YB90M4,GFA109-YDP100M4,GFA109-YDP112M4,GFA109-YDP132M4,GFA109-YDP160M4,GFA109-YDP180M4,GFA109-YDP200M4,GFA109-YDP225M4,GFA109-YDP80M4,GFA109-YDP90M4,GFA109-YE100M4,GFA109-YE112M4,GFA109-YE132M4,GFA109-YE160M4,GFA109-YE180M4,GFA109-YE200M4,GFA109-YE225M4,GFA109-YE80M4,GFA109-YE90M4,GFA109-YEJ100M4,GFA109-YEJ112M4,GFA109-YEJ132M4,GFA109-YEJ160M4,GFA109-YEJ180M4,GFA109-YEJ200M4,GFA109-YEJ225M4,GFA109-YEJ80M4,GFA109-YEJ90M4,GFA109-YEJB100M4,GFA109-YEJB112M4,GFA109-YEJB132M4,GFA109-YEJB160M4,GFA109-YEJB180M4,GFA109-YEJB200M4,GFA109-YEJB225M4,GFA109-YEJB80M4,GFA109-YEJB90M4,GFA109-YP100M4,GFA109-YP112M4,GFA109-YP132M4,GFA109-YP160M4,GFA109-YP180M4,GFA109-YP200M4,GFA109-YP225M4,GFA109-YP80M4,GFA109-YP90M4,GFA109-YPB100M4,GFA109-YPB112M4,GFA109-YPB132M4,GFA109-YPB160M4,GFA109-YPB180M4,GFA109-YPB200M4,GFA109-YPB225M4,GFA109-YPB80M4,GFA109-YPB90M4,GFA109-YPE100M4,GFA109-YPE112M4,GFA109-YPE132M4,GFA109-YPE160M4,GFA109-YPE180M4,GFA109-YPE200M4,GFA109-YPE225M4,GFA109-YPE80M4,GFA109-YPE90M4,GFA109-YS100M4,GFA109-YS112M4,GFA109-YS132M4,GFA109-YS160M4,GFA109-YS180M4,GFA109-YS200M4,GFA109-YS225M4,GFA109-YS80M4,GFA109-YS90M4,GFA109-YVB100M4,GFA109-YVB112M4,GFA109-YVB132M4,GFA109-YVB160M4,GFA109-YVB180M4,GFA109-YVB200M4,GFA109-YVB225M4,GFA109-YVB80M4,GFA109-YVB90M4,GFA109-YVP100M4,GFA109-YVP112M4,GFA109-YVP132M4,GFA109-YVP160M4,GFA109-YVP180M4,GFA109-YVP200M4,GFA109-YVP225M4,GFA109-YVP80M4,GFA109-YVP90M4,GFA109-YVPEJ100M4,GFA109-YVPEJ112M4,GFA109-YVPEJ132M4,GFA109-YVPEJ160M4,GFA109-YVPEJ180M4,GFA109-YVPEJ200M4,GFA109-YVPEJ225M4,GFA109-YVPEJ80M4,GFA109-YVPEJ90M4。

FA109減速機生產工廠展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-faxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:F109減速機

關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家

FA系列齒輪減速電機型號:FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機

FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
